The Appropriate Storage and Thorough Cleaning of Oil Seals

Oil seals, also known as shaft seals or rotary seals, are essential components in many mechanical systems. They prevent the leakage of lubricants and protect against contaminants such as dirt and moisture. Proper storage and cleaning of oil seals are crucial to ensuring their effective performance and longevity. This guide provides detailed instructions on how to appropriately store and clean oil seals to maintain their functionality and reliability.

Understanding Oil Seals

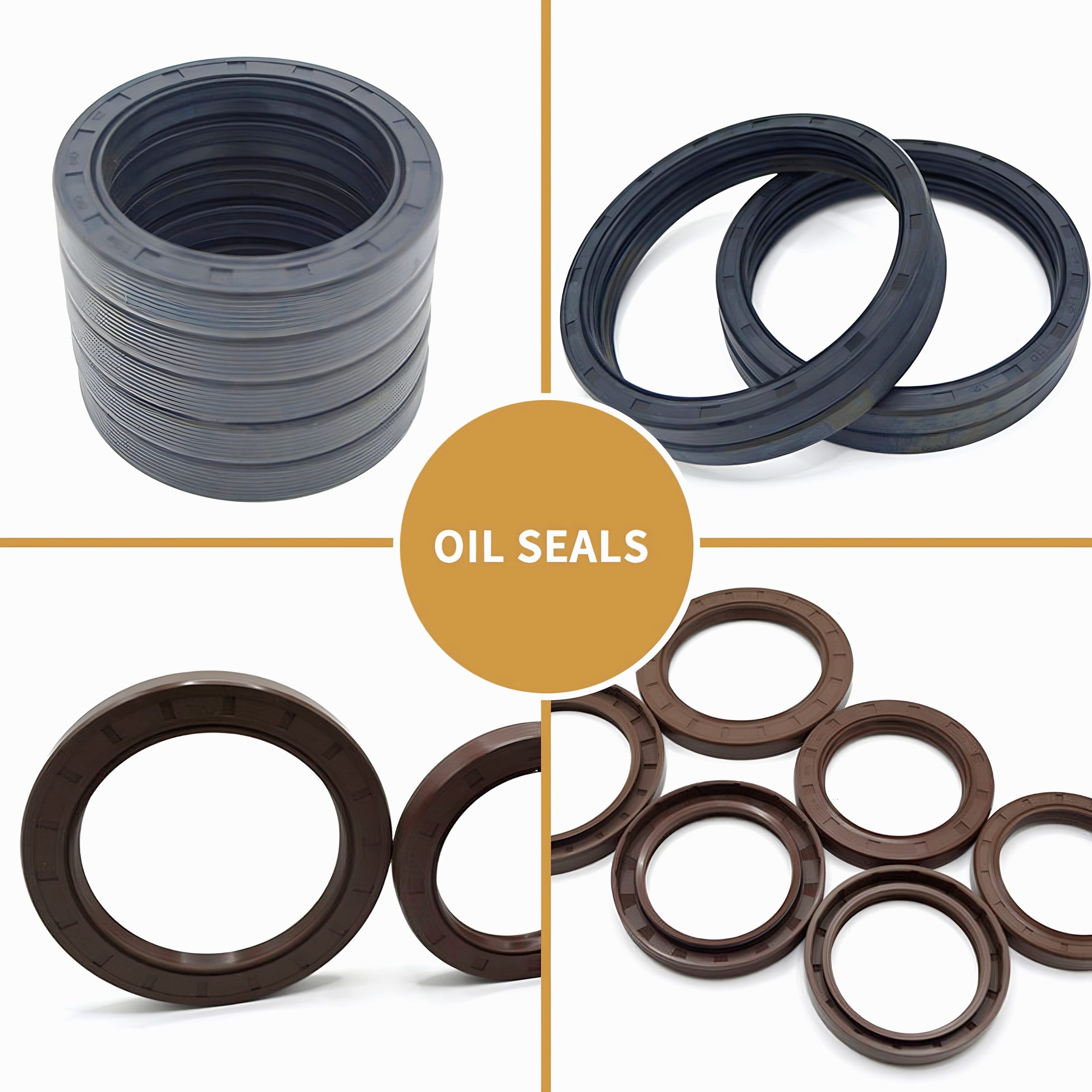

Oil seals are used to seal the interface between a rotating shaft and a stationary housing, preventing lubricant leakage while keeping contaminants out. They are typically made from elastomers or polymers and feature a metal or plastic casing that holds the sealing element in place.

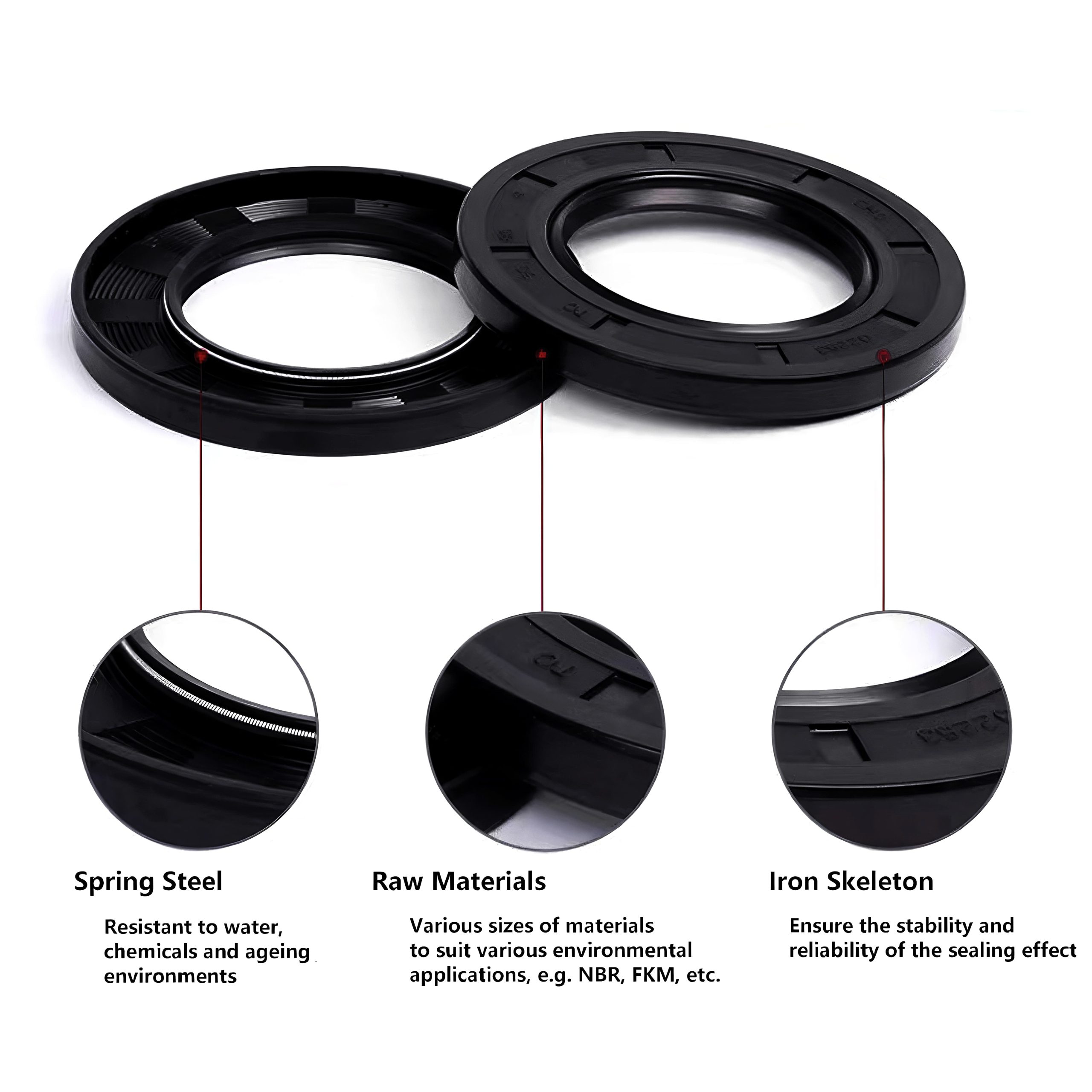

Key Components:

• Seal Lip: The part that makes contact with the shaft, creating a barrier to contain the lubricant.

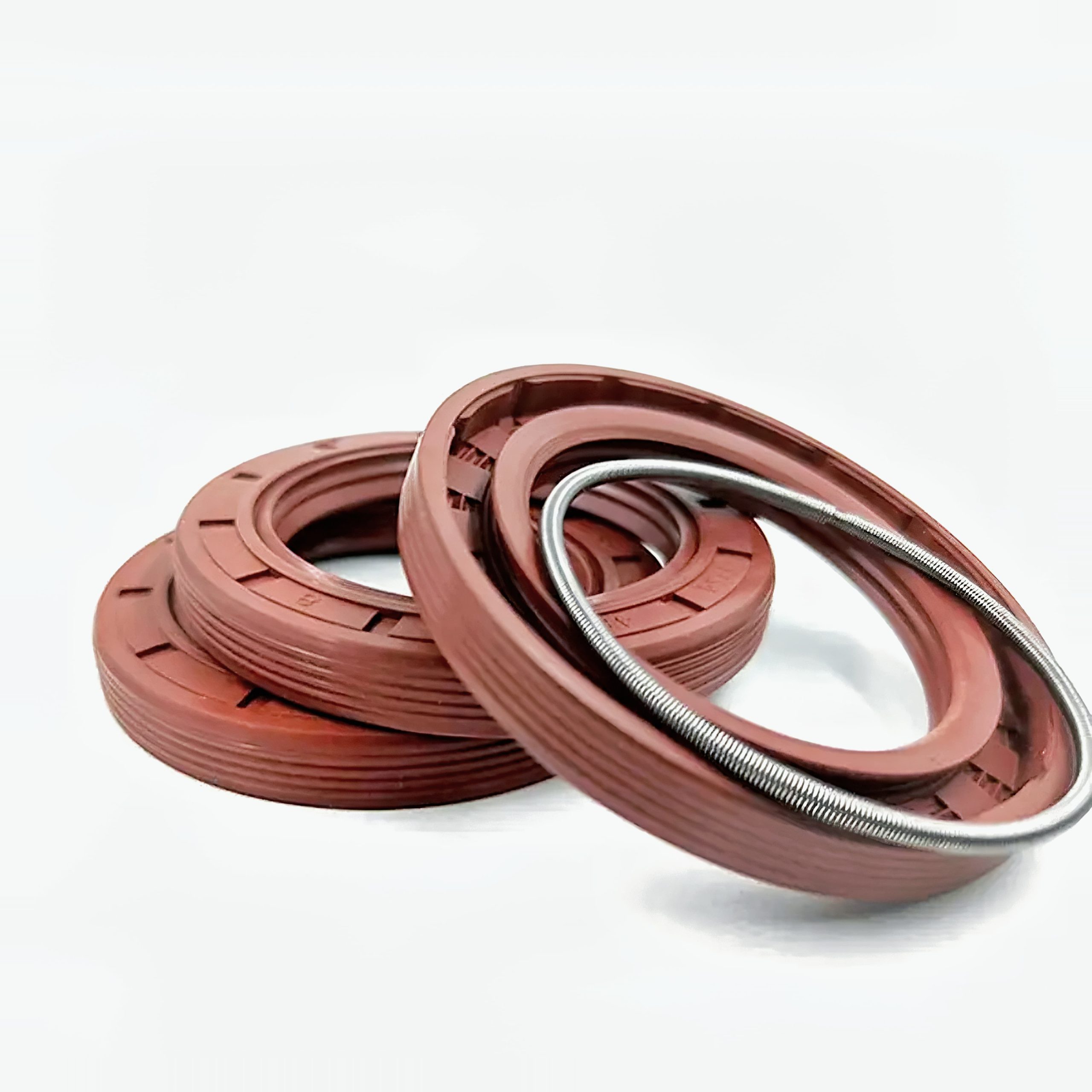

• Springs: Often used to apply additional pressure to the seal lip, ensuring a tighter seal.
• Backing Ring: Provides support to the seal lip and maintains its shape.


Materials Used:

• Nitrile Rubber (NBR): Resistant to oils and fuels.
• Fluoroelastomers (FKM): For high-temperature and chemical resistance.
• Silicone Rubber (VMQ): For extreme temperature applications.
• Polyurethane: Used for high wear resistance and durability.

Storage of Oil Seals

Proper storage is essential to prevent damage and degradation of oil seals. Follow these best practices:

1. Temperature Control

• Optimal Range: Store oil seals in a temperature-controlled environment, ideally between 15°C and 25°C (59°F and 77°F). Extreme temperatures can cause the seal materials to become brittle or deform.
• Avoid Heat Sources: Keep seals away from heat sources, such as radiators or direct sunlight, which can accelerate deterioration.

2. Humidity Management

• Maintain Low Humidity: Store oil seals in a dry environment to prevent moisture absorption, which can affect their sealing properties. Relative humidity should be below 70%.
• Prevent Condensation: Avoid areas prone to condensation, which can lead to mold growth or material degradation.

3. Light Protection

• UV Exposure: Protect seals from UV light, which can cause the elastomeric materials to degrade. Store seals in dark or opaque packaging to shield them from light.
• Packaging: Use original or opaque packaging to provide protection from light exposure during storage.


4. Clean Environment

• Contamination Control: Store oil seals in clean, dust-free environments. Contaminants like dirt or debris can compromise the sealing surface and affect performance.
• Avoid Chemicals: Keep seals away from chemicals and solvents that could cause deterioration.

5. Handling Practices

• Avoid Physical Damage: Handle oil seals with care to prevent physical damage such as cuts or abrasions. Use clean gloves to avoid contamination from oils or residues on hands.
• Proper Packaging: When not in use, oil seals should be stored in their original packaging or in clean, non-reactive containers.

Cleaning of Oil Seals

Cleaning oil seals is essential to ensure their effectiveness, especially if they have been exposed to contaminants. Follow these steps for thorough and safe cleaning:

1. Choose the Right Cleaning Agents

• Mild Detergents: Use mild soap solutions for general cleaning. Avoid harsh chemicals that can damage the seal material.
• Avoid Solvents: Steer clear of solvents like acetone or strong acids, which can deteriorate the elastomeric components.

2. Cleaning Process

• Initial Rinse: Start by rinsing the seal with water to remove loose dirt and debris.
• Soapy Solution: Prepare a solution of mild detergent and water. Use a soft brush or cloth to gently clean the seal. Be cautious to avoid using abrasive materials that could scratch the surface.
• Thorough Rinsing: Rinse the seal thoroughly with clean water to remove all detergent residues.
• Drying: Dry the seal with a clean, lint-free cloth. Allow it to air dry completely before storage or re-installation.


3. Inspection and Maintenance

• Visual Inspection: After cleaning, inspect the seal for any signs of wear, cracking, or deformation. Replace any seals showing signs of damage.
• Lubrication: If applicable, apply a compatible lubricant to the seal to maintain its flexibility and performance, especially if it will be reinstalled.

4. Special Considerations

• High-Temperature Cleaning: For seals exposed to high temperatures or harsh chemicals, consult manufacturer guidelines for appropriate cleaning methods and solutions.
• Food-Grade Seals: For seals used in food-grade applications, ensure cleaning agents are food-safe and that all residues are thoroughly removed.

Best Practices and Tips

• Regular Inspections: Regularly check seals for signs of deterioration or contamination, even during storage.
• Follow Manufacturer’s Guidelines: Adhere to the manufacturer’s recommendations for both storage and cleaning to ensure the best performance and longevity of the seals.
• Training: Ensure personnel involved in handling, storing, and cleaning oil seals are trained in best practices to prevent damage and maintain seal integrity.

Handling and Installation Tips

Proper handling and installation of oil seals are crucial for their performance and longevity:

1. Handling

• Use Proper Tools: Use appropriate tools for handling and installing oil seals to prevent damage. Avoid using sharp or abrasive tools that can scratch or cut the seals.
• Avoid Contaminants: Ensure that hands and tools are clean and free of contaminants, such as oils or grease, which can affect the seal’s performance.

2. Installation

• Correct Fit: Ensure that the oil seal is the correct size for the application. An incorrect fit can lead to leakage or premature wear.
• Proper Seating: Install the seal evenly and make sure it is properly seated in the housing. Avoid using excessive force, which can cause deformation or damage.
• Avoid Overstretching: Do not overstretch the seal during installation, as this can lead to deformation or reduced effectiveness.


Troubleshooting Common Issues

Here are some common issues with oil seals and potential solutions:

1. Leakage

• Causes: Leakage can be caused by improper installation, damage to the seal, or excessive wear.
• Solutions: Inspect the seal for damage, ensure proper installation, and replace the seal if necessary.

2. Abrasion or Wear

• Causes: Abrasion or wear can occur due to contaminants, improper handling, or incorrect material selection.
• Solutions: Clean the seal regularly, handle it carefully, and ensure the seal material is suitable for the operating conditions.

3. Deformation

• Causes: Deformation can be caused by extreme temperatures, improper storage, or excessive force during installation.
• Solutions: Store seals within the recommended temperature range, handle them carefully, and follow proper installation procedures.

Conclusion

Proper storage and cleaning of oil seals are essential for ensuring their effective performance and longevity. By adhering to best practices for temperature control, humidity management, light protection, and handling, you can prevent damage and degradation. Thorough cleaning using appropriate agents and methods will help maintain the seals’ functionality and reliability. Regular inspections and adherence to Zhuoyue Spring’s guidelines will further ensure that oil seals continue to perform optimally in their applications, minimizing the risk of failure and enhancing the overall reliability of your mechanical systems.If you want to know more about spring energized seals,please contact us.
