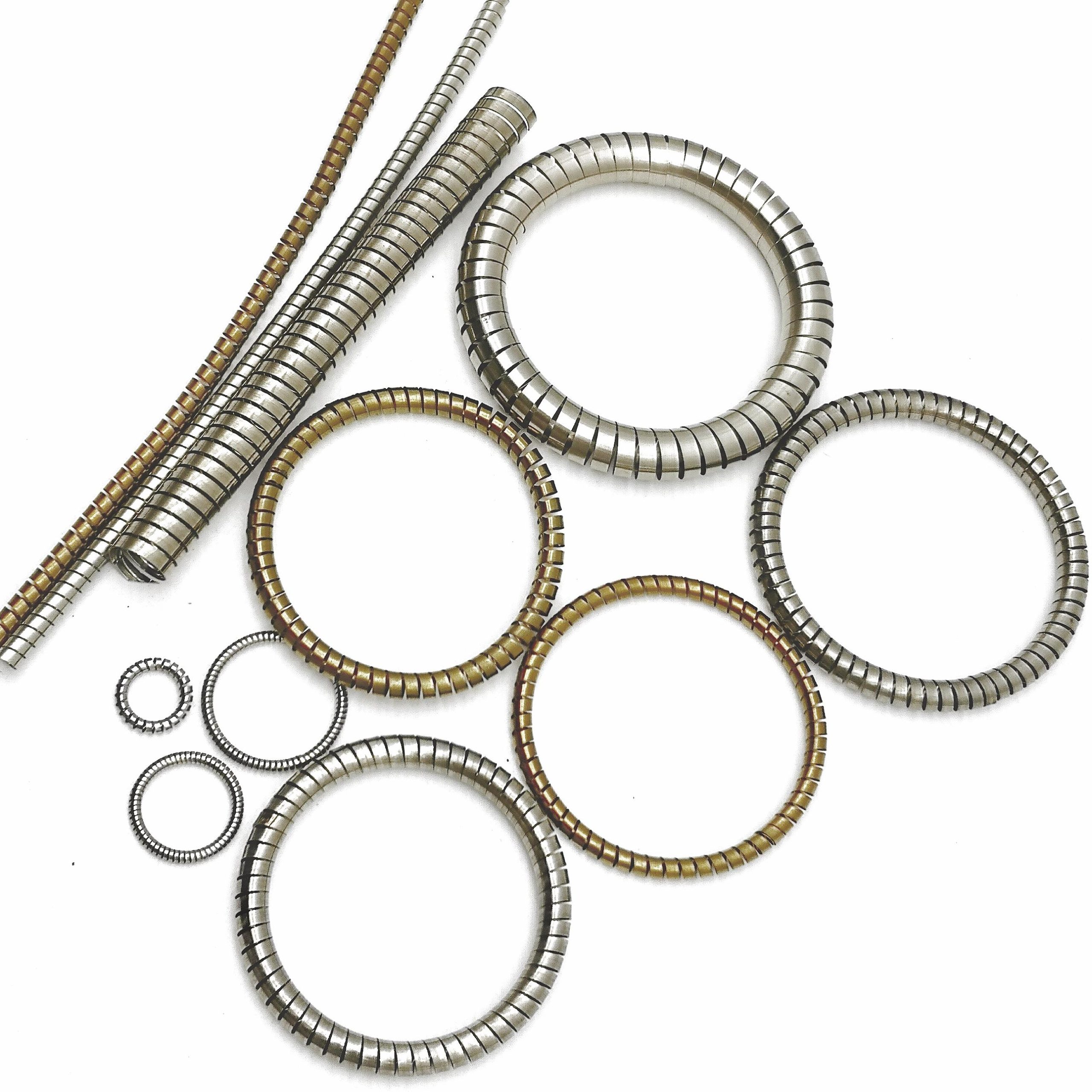

Helical Spring Overview

Handa Helical Spring is also known as: Wound Spring, Ribbon Spring, Helical Wound Springs.

Helical Spring Seals are well-suited for static, low-speed, and cryogenic applications, offering positive sealing over a wide range of temperatures and pressures. They are particularly beneficial for applications requiring high unit loads and even load distribution across each individual band.

Helical spring plans create generously higher burden per inch redirection values when contrasted with the cantilever “U” & “V”– molded springs. Because of the outline way of the seal coat geometry these sorts of plans are fundamentally utilized for static and/or lower element seal applications.

Materials available include:

Stainless Steels
301 | 302 | 304 | 316 | 17-7PH
Exotic Alloys
Inconel (grades 600, 718, X-750)
Monel (grade 400)
Elgiloy/Phynox to AMS5833. Also available compliant to NACE MR0175.
Hastelloy (grades C22, C276, C2000)
Beryllium-copper,

Helical Spring Energized Seals Dimensional Data

Helical Spring Dimensional Data chart below provides the dimensional data for our standard offering. However custom diameters, widths and thickness can also be supplied. There is no tooling charge for special diameters or different material slit widths.

Extreme-Temperature Alloy Coil Springs: -200°C to 800°C Performance for Corrosive & Caustic Environments. Engineered with Super Alloys: Elgiloy® (ASTM F1058), Inconel® X-750 (AMS 5698), 718 (UNS N07718).

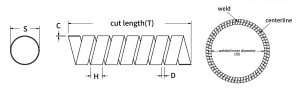

Helical Spring Energized Seals Drawing | Handa spring
SERIES S（Outside diameter） H（Width） C(Material thickness)
HDY-SHE-152038010 1.52mm | .06″ 0.38mm | .015″ 0.10mm | .0039″
HDY-SHE-200150010 2.00mm | .079″ 1.50mm | .059″ 0.10mm | .0039″
HDY-SHE-229051013 2.29mm | .09″ 0.51mm | .02″ 0.13mm | .005″
HDY-SHE-250150010 2.50mm | .098″ 1.50mm | .059″ 0.10mm | .0039″
HDY-SHE-300150010 3.00mm | .118″ 1.50mm | .059″ 0.10mm | .0039″
HDY-SHE-318064020 3.18mm | .125″ 0.64mm | .025″ 0.20mm | .0079″
HDY-SHE-318150015 3.18mm | .125″ 1.50mm | .059″ 0.15mm | .0059″
HDY-SHE-350150015 3.50mm | .138″ 1.50mm | .059″ 0.15mm | .0059″
HDY-SHE-400150015 4.00mm | .157″ 1.50mm | .059″ 0.15mm | .0059″
HDY-SHE-450150015 4.50mm | .177″ 1.50mm | .059″ 0.15mm | .0059″
HDY-SHE-500200015 5.00mm | .197″ 2.00mm | .079″ 0.15mm | .0059″
The table is a part of specification size.
You can also contact engineers for customization.

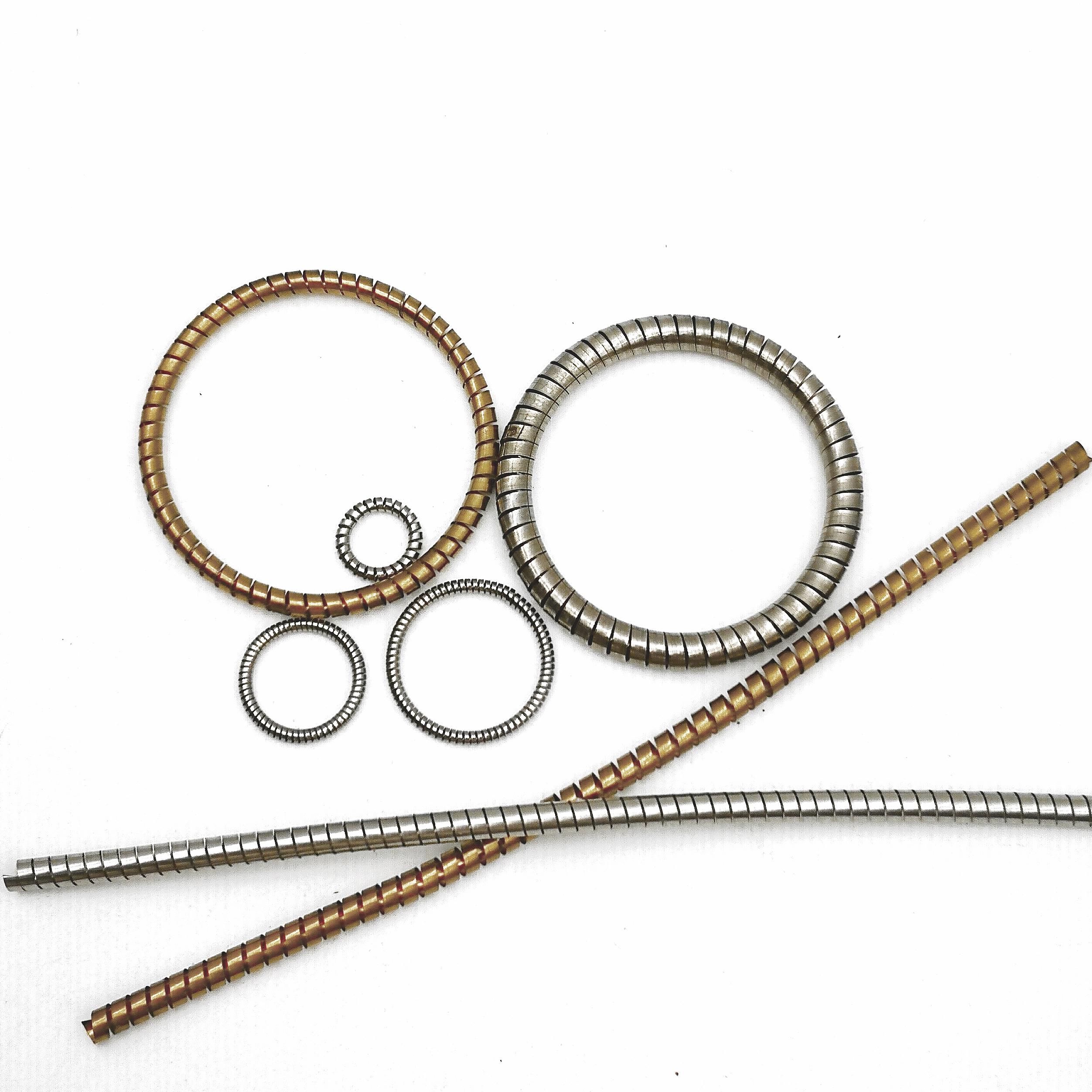

Looking for Pre-Cut and Welded Radial Springs?

Handa produces cut and welded springs for all standard industrial and metric dash sizes for Helical series spring energizers, including V-spring, Helical, and Canted coil springs. Simply provide the dash number you need and we’ll cut and weld the spring to the necessary dimensions.

Even if the product you need doesn’t fall into the standard dash number range, we still have you covered. Provide the centerline of the spring groove in the seal and we will cut and weld a spring energizer to exactly match the dimensions. Our engineering and manufacturing experts are here to make fabrication and assembly as seamless as possible.



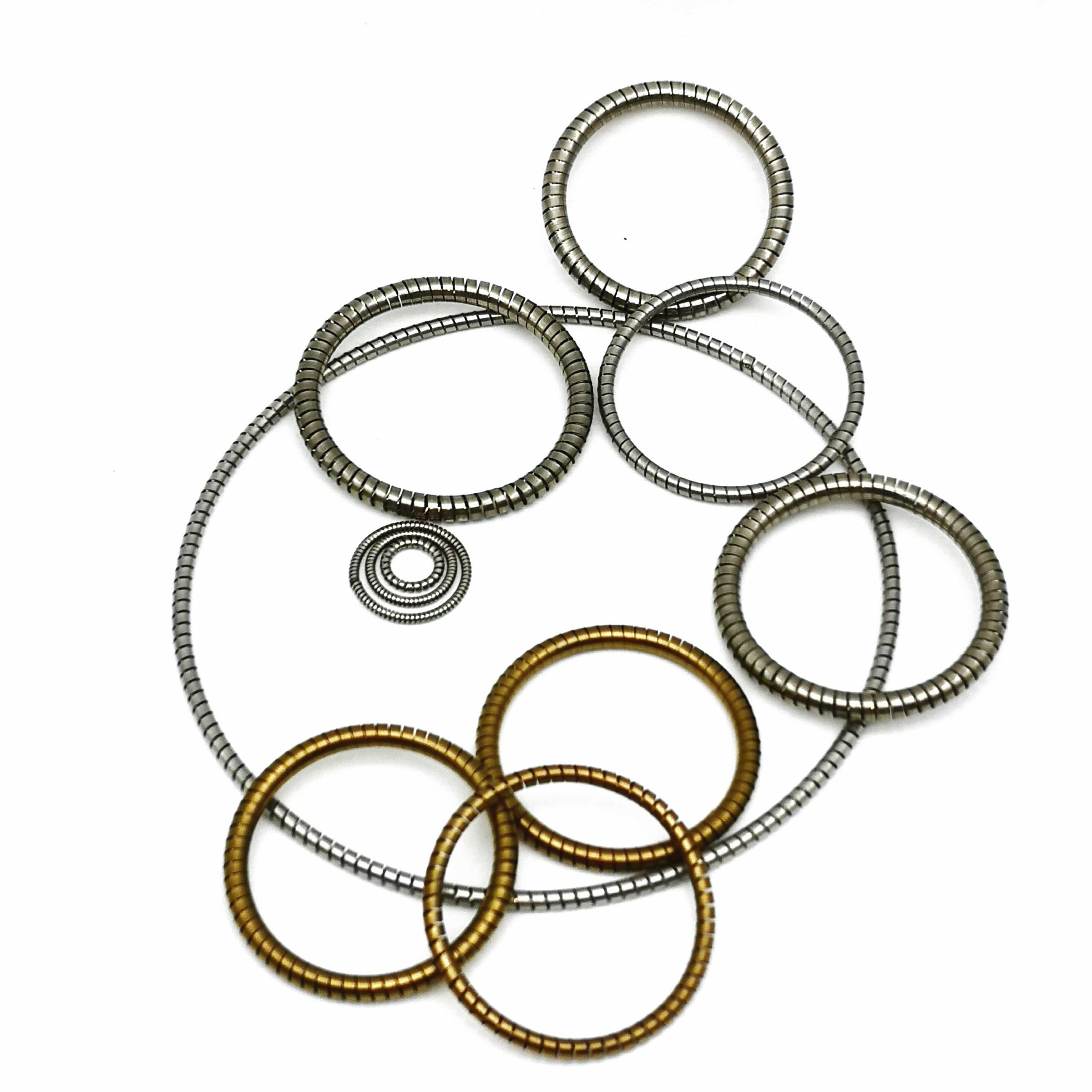

Helical Springs Applications

Helical wound springs are primarily used for static and/or low dynamic seal applications due to their ability to generate significantly higher load per inch deflection compared to cantilever “U” & “V”-shaped springs. They are ideal for sealing gases, mating rough surfaces, and cryogenic applications where the spring load needs to overcome the significant increase in material modulus at low temperatures

Why Choose Handa Spring?

At Handa Spring, we combine advanced manufacturing, strict quality control, and engineering expertise to deliver custom Helical springs tailored to your requirements. Whether you need high-volume production or low-quantity prototyping, we offer fast turnaround, competitive pricing, and global shipping.

  • Flexible Order Sizes – No Minimums: Enjoy complete flexibility with no minimum order quantity (MOQ) restrictions; we accommodate orders of all sizes, from small batches to large-scale production. As a direct manufacturing facility, we pass on factory-direct pricing and ensure streamlined communication throughout your project.

  • Ultra Precision Manufacturing: Achieve extreme accuracy with OD tolerances down to ±0.00078″(±0.02 mm) and minimum outer diameters as small as 0.035″(0.89 mm) — engineered for your most demanding.

  • Expedited Lead Times: just 5-7 business days.

  • Export-ready – Serving clients across Europe, the U.S., India, Korea, and more

Whether your design involves cryogenic sealing, aggressive media, or high-speed reciprocating movement, Handa Spring delivers helical springs that ensure performance, longevity, and sealing integrity.
