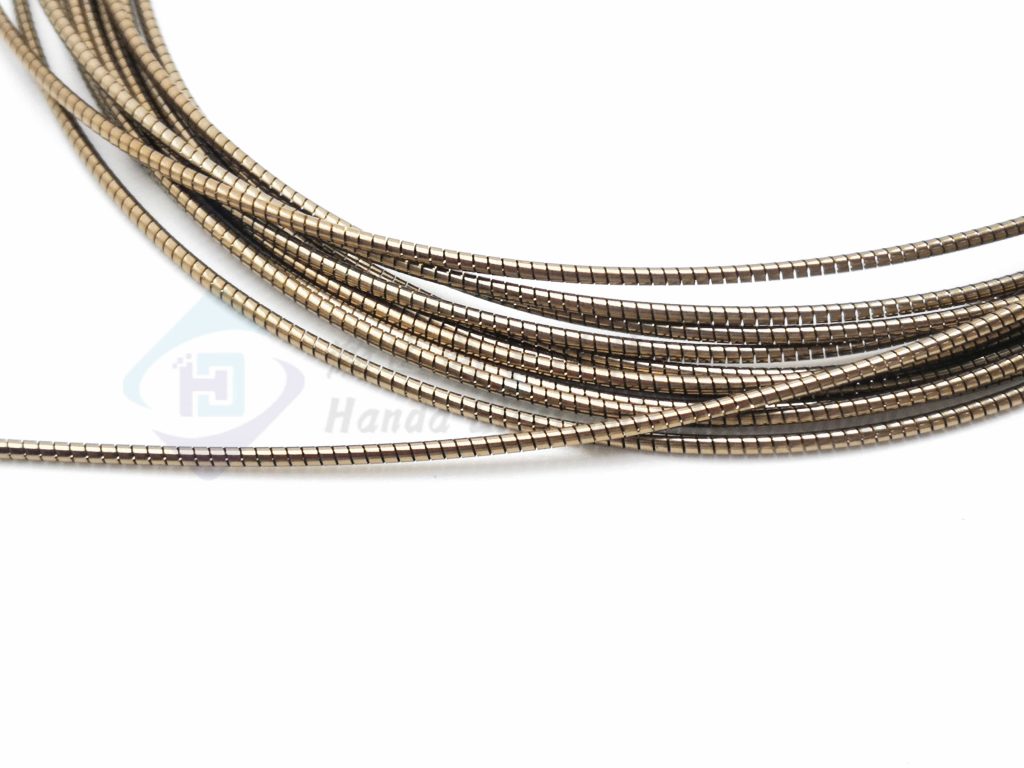

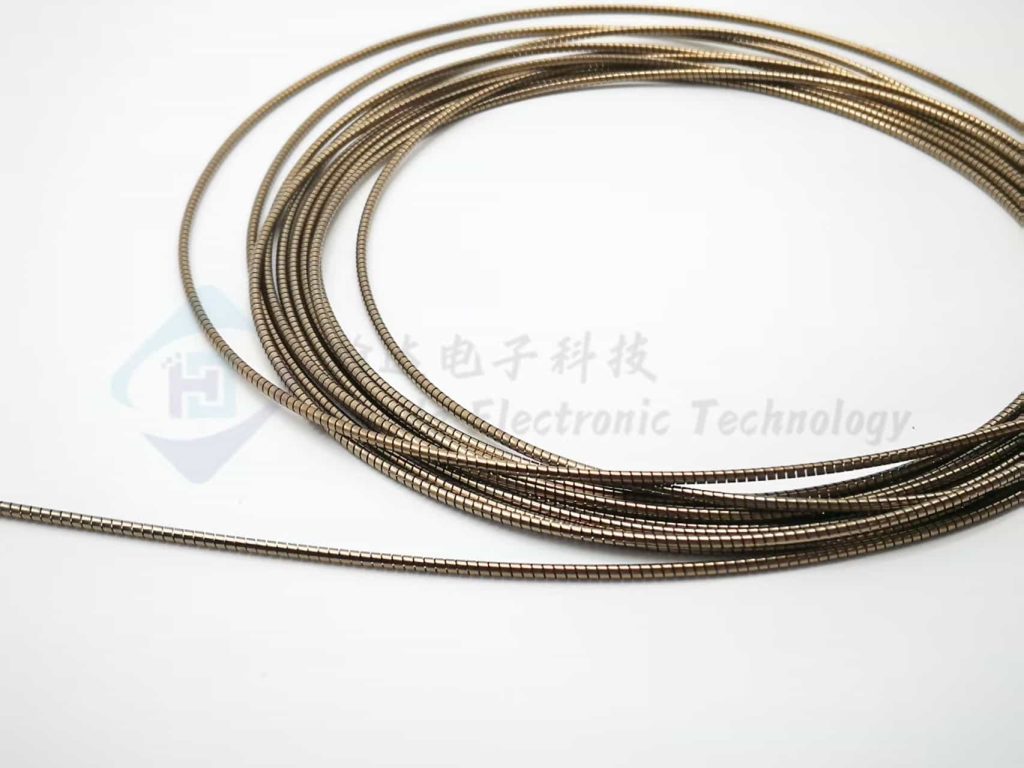

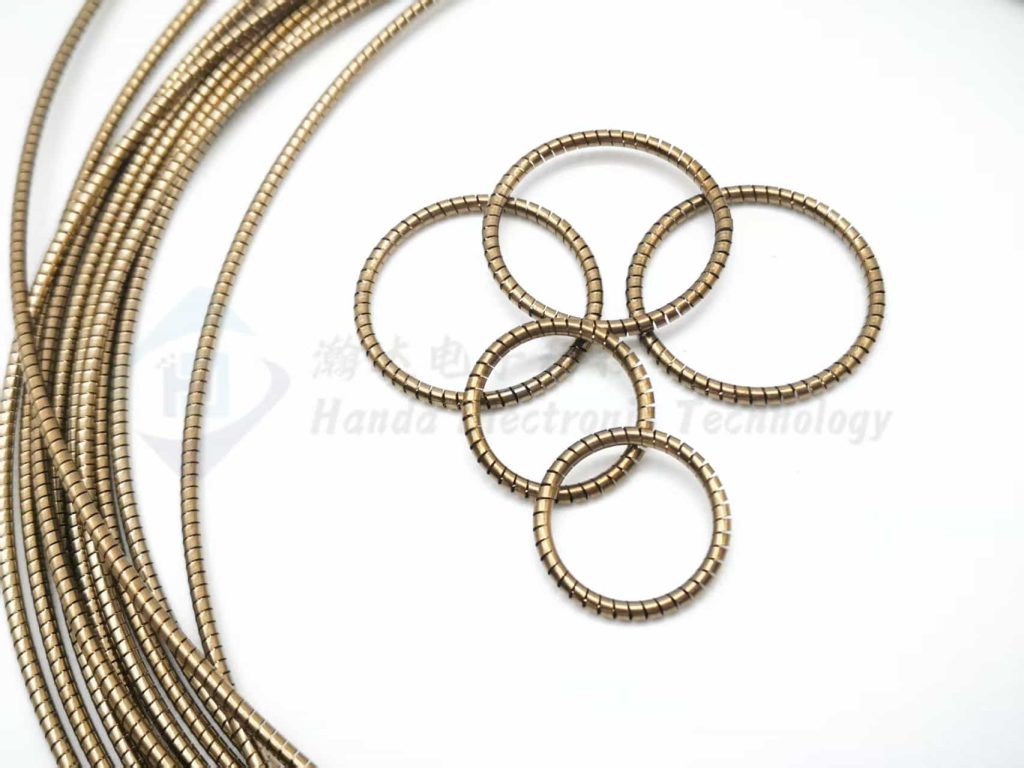

Elgiloy 2.0*1.2*0.1 Helical Springs

Elgiloy 2.0*1.2*0.1 helical springs represent a specialized configuration of Elgiloy springs, combining precise dimensional specifications with the superior properties of Elgiloy alloy. These springs are manufactured from a premium cobalt-chromium-nickel alloy that provides exceptional strength, corrosion resistance, and temperature stability.

Technical Specifications

Property	Specification
– Material	Elgiloy®
– Dimensions	2.0mm × 1.2mm × 0.1mm
– Temperature Range	-184°C to 454°C (-300°F to 850°F)
– Density	8.30 g/cm³ (0.300 lb/in³)
– Modulus of Elasticity	Up to 32.0 × 10³ ksi (190 GPa)

Material Properties

1. Mechanical Characteristics – High strength-to-weight ratio

• Excellent fatigue life
• Good formability
• Non-magnetic properties

1. Environmental Resistance – Virtually immune to crevice and stress corrosion in seawater

• Excellent resistance to sulfide stress corrosion cracking
• Superior pitting resistance

Applications

1.Primary Industries – Oil & gas wellbore environments

• Marine applications
• Aerospace systems
• Medical devices

2.Specialized Uses – Satellite communications equipment

• Defense systems
• High-temperature applications
• Chemical processing equipment

Manufacturing Capabilities

• Continuous lengths from 100 feet to annual quantities exceeding 100,000 feet
• Custom tooling development for specific requirements
• Over 100 non-standard cross-section options available
• Secondary finishing services available

Customization Options

1.Dimensional Modifications – Adjustable dimensions within tooling limits

• Custom cross-section configurations
• Special material options available

2.Material Selection – Various grades of Elgiloy®

• Specialty materials for specific applications
• Custom finishing services available

These springs combine the superior properties of Elgiloy alloy with precise dimensional specifications, making them ideal for applications requiring consistent performance and reliability in demanding environments.
