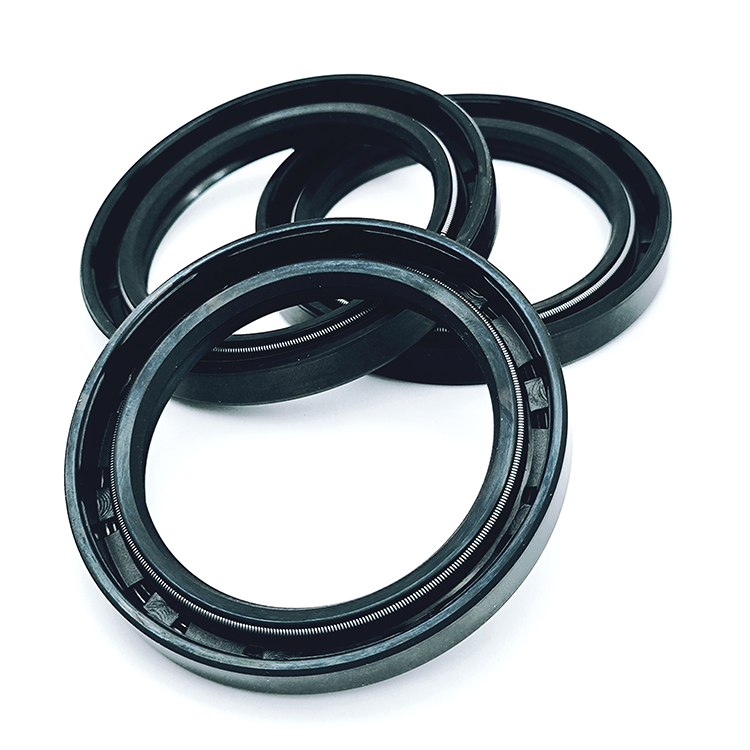

A Comprehensive Description of Spring Energized PTFE Seals
Posted by handaspring
In the world of sealing technology, spring energized PTFE seals represent a sophisticated solution for a variety of demanding applications. These seals are renowned for their durability and effectiveness in extreme conditions, making them a popular choice across numerous industries. This article explores the essential aspects of spring energized PTFE seals, including their construction, benefits, applications, and key considerations for selecting the right seal for your needs.
Spring energized PTFE seals are designed to offer superior sealing performance in harsh environments. They combine the properties of PTFE (Polytetrafluoroethylene) with a spring mechanism to maintain constant contact with the sealing surface. The PTFE material is known for its excellent chemical resistance, low friction, and high-temperature tolerance. The spring, usually made from stainless steel or other high-strength materials, ensures that the seal maintains its shape and effectiveness under varying pressure and temperature conditions.
Construction of Spring Energized PTFE Seals
A spring energized PTFE seal typically consists of two main components:
1.PTFE Jacket: This component is the outer layer of the seal, made from PTFE. PTFE is prized for its chemical resistance, low friction coefficient, and ability to withstand temperatures ranging from -73°C to 260°C (-100°F to 500°F). The PTFE jacket forms the primary sealing surface, offering a barrier against leakage and contamination.
2.Energizing Spring: Located inside the PTFE jacket, the spring maintains pressure against the sealing surface. This component compensates for wear and tear, ensuring that the seal remains effective over time. The spring also helps the PTFE jacket to conform to the surface, providing a reliable seal even under fluctuating pressures and temperatures.
Advantages of Spring Energized PTFE Seals
Exceptional Chemical Resistance: PTFE is highly resistant to a wide range of chemicals, including acids, bases, and solvents. This makes spring energized PTFE seals ideal for use in chemical processing, pharmaceuticals, and other industries where exposure to harsh substances is common.
High-Temperature Tolerance: Withstanding temperatures from -73°C to 260°C, PTFE seals are suitable for high-temperature applications. The spring mechanism ensures that the seal remains effective even as temperatures fluctuate.
Low Friction and Wear: The low friction coefficient of PTFE reduces wear on both the seal and the mating surfaces. This extends the service life of the seal and improves the efficiency of the equipment in which it is used.
Versatility: Spring energized PTFE seals can be customized to fit a variety of applications. They are available in different sizes, shapes, and configurations, making them suitable for use in diverse industries, including aerospace, automotive, and manufacturing.
Leak Prevention: The spring mechanism ensures that the PTFE seal maintains constant contact with the sealing surface. This helps prevent leaks and ensures a tight seal, even under varying pressures and conditions.
Applications of Spring Energized PTFE Seals
Aerospace: In aerospace applications, spring energized PTFE seals are used in hydraulic systems, fuel systems, and other critical areas. Their ability to withstand extreme temperatures and pressures makes them indispensable in this industry.
Automotive: Automotive applications benefit from the chemical resistance and low friction properties of PTFE seals. They are commonly used in engine components, transmission systems, and other high-performance areas.
Oil and Gas: The oil and gas industry requires seals that can handle high pressures and aggressive chemicals. Spring energized PTFE seals are used in pumps, valves, and other equipment to ensure reliable performance in these challenging environments.
Pharmaceuticals: In pharmaceutical manufacturing, contamination control is crucial. PTFE seals provide a reliable barrier against leakage and contamination, ensuring the integrity of the process and the safety of the final product.
Food and Beverage: The food and beverage industry demands seals that are not only chemically resistant but also compliant with hygiene standards. Spring energized PTFE seals meet these requirements, ensuring both safety and performance.
Key Considerations for Selecting Spring Energized PTFE Seals
Operating Conditions: Consider the temperature range, pressure, and chemical exposure of your application. Ensure that the PTFE seal you select can withstand these conditions without degrading or losing effectiveness.
Seal Dimensions: Accurate dimensions are critical for optimal performance. Measure the sealing surface and select a seal that fits precisely to prevent leakage and ensure a proper seal.
Spring Material: The choice of spring material affects the seal’s performance. Stainless steel is commonly used for its strength and corrosion resistance. Ensure that the spring material is compatible with the operating environment.
Seal Design: Different designs are available, including U-cups, V-rings, and lip seals. Choose a design that suits your application’s specific needs, such as dynamic or static sealing requirements.
Installation and Maintenance: Proper installation is essential for the longevity of spring energized PTFE seals. Follow manufacturer guidelines for installation and maintenance to ensure optimal performance and to avoid premature failure.
Different types of spring designs used in spring energized PTFE seals

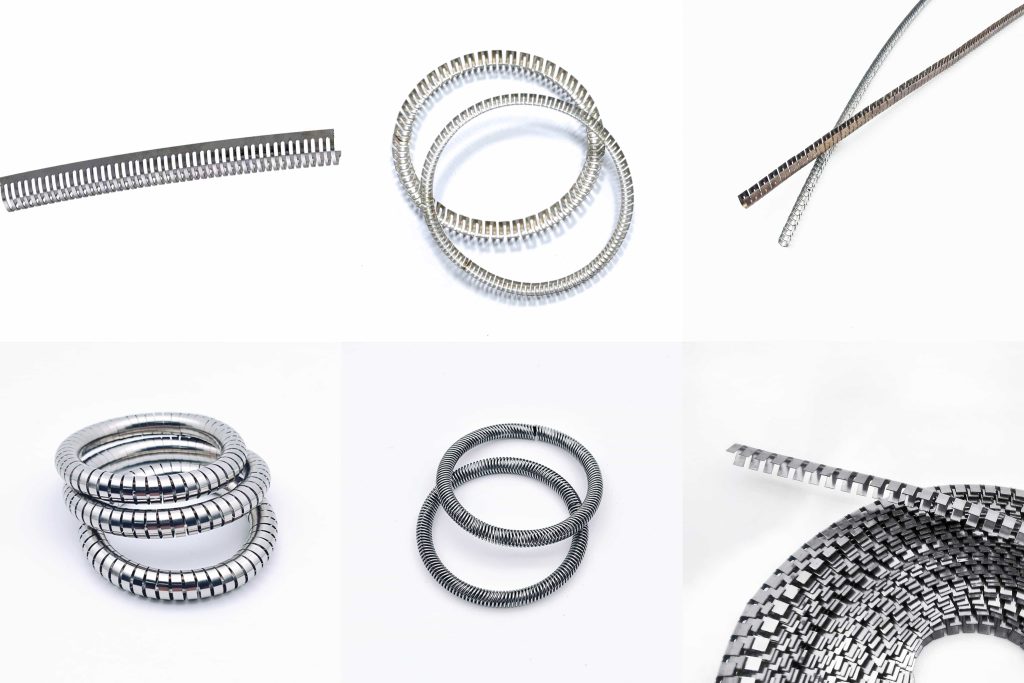

Zhuoyue Spring Co.，Ltd provides the following types of spring designs for spring energized seals:
Spring energized PTFE seals are a high-performance solution for a wide range of applications, offering exceptional chemical resistance, high-temperature tolerance, and low friction. Their unique construction, combining PTFE with a spring mechanism, ensures a reliable and effective seal in demanding conditions. By understanding the advantages, applications, and key considerations for selecting these seals, you can make informed decisions that enhance the performance and reliability of your equipment.
For industries requiring dependable sealing solutions in harsh environments, spring energized PTFE seals provide a robust and versatile option. Whether in aerospace, automotive, oil and gas, pharmaceuticals, or food and beverage sectors, these seals deliver superior performance and longevity, making them a valuable component in modern sealing technology.For further more infomation about sealing springs,please contact us.
