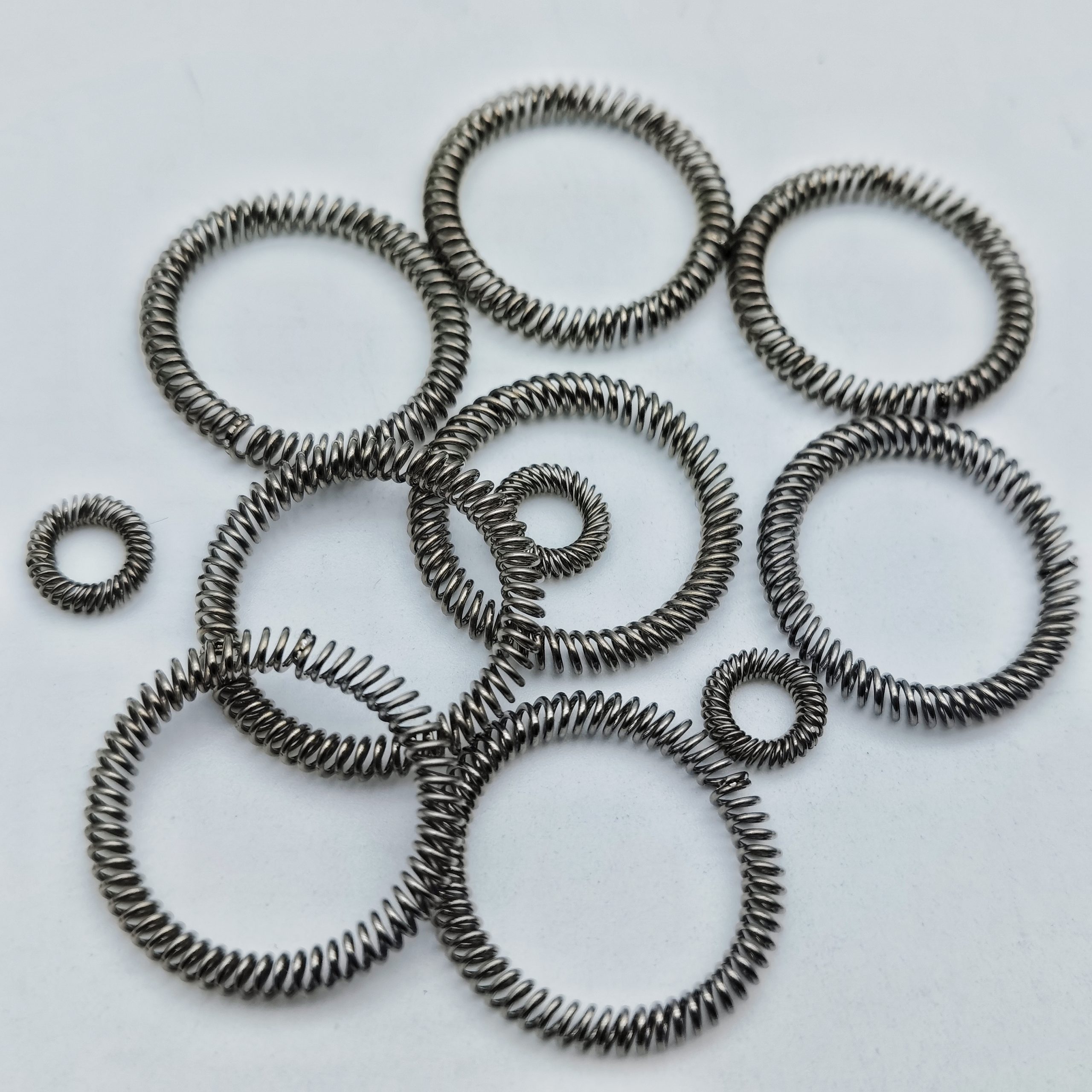

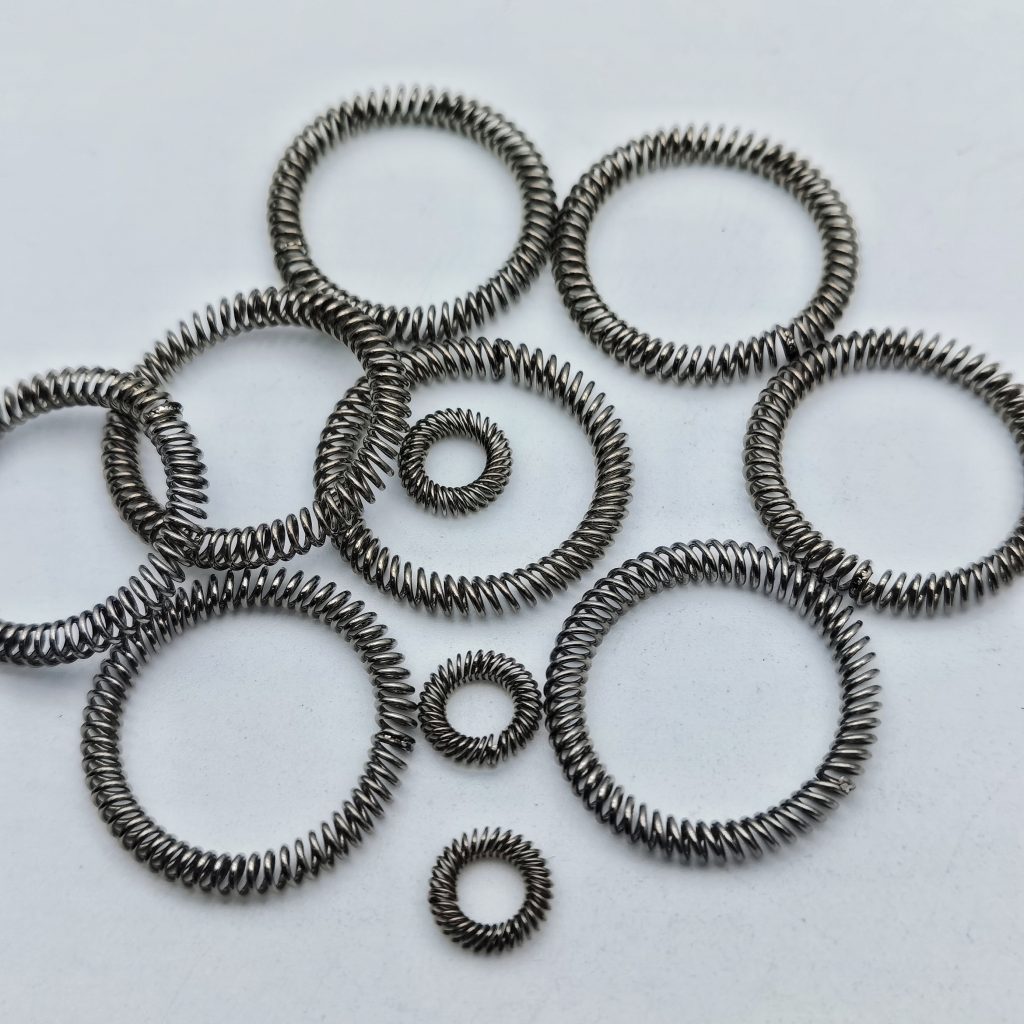

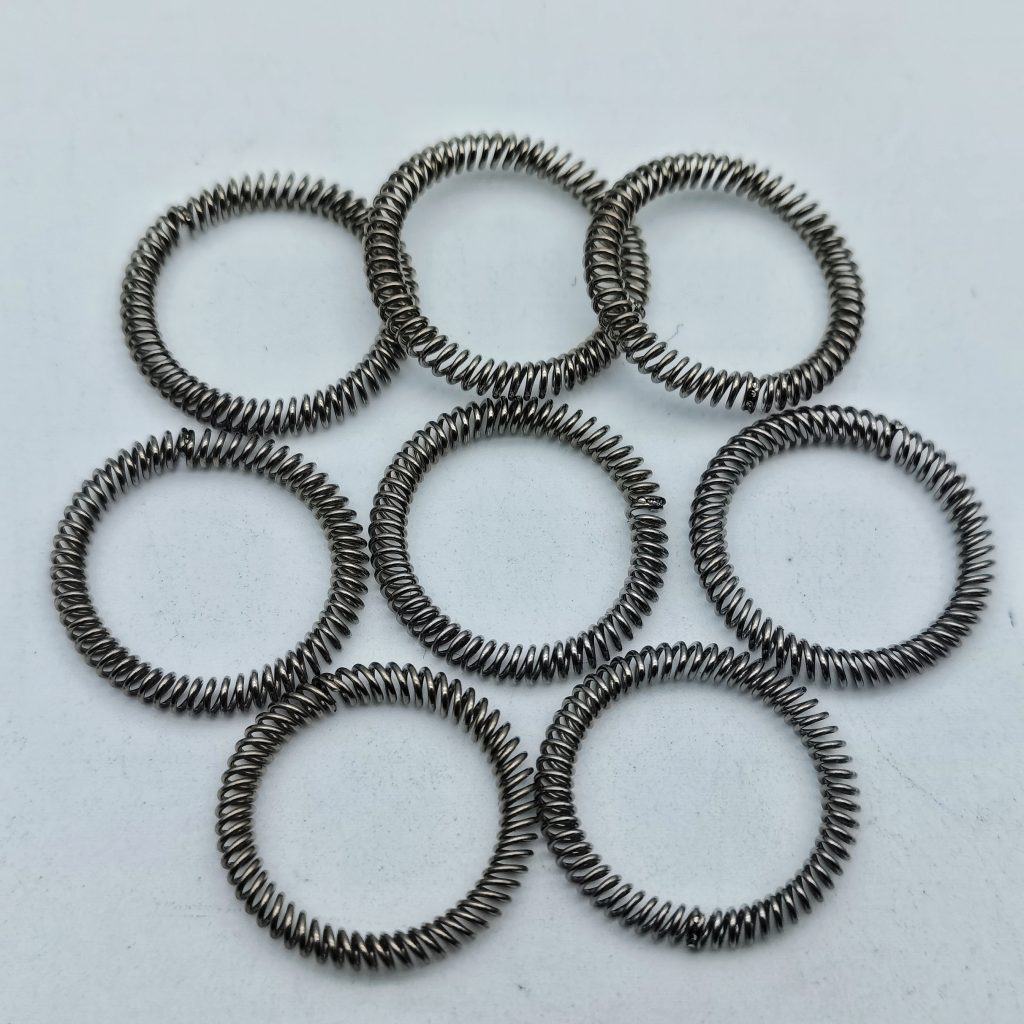

Canted coil seal springs are essential components in many industrial sealing systems, offering robust and reliable solutions for challenging sealing environments. These specialized springs are designed to maintain effective seals under high-pressure, high-temperature, and contaminated conditions. This article delves into the design, benefits, applications, and installation of canted coil seal springs, providing a thorough understanding of their role in modern sealing technologies.
Canted coil seal springs feature a unique design that enhances their performance in demanding applications. Unlike traditional coil springs, canted coil seal springs have a helical structure with an “canted” configuration. This design enables them to provide consistent sealing pressure and adaptability across various sealing surfaces and conditions.
1. Canted Configuration: The key feature of canted coil seal springs is their canted design. This configuration allows the spring to apply uniform sealing pressure along the circumference of the seal, which helps to maintain an effective seal even in irregular or uneven surfaces.
2. High-Quality Materials: They are typically made from high-strength alloys or stainless steel. These materials offer excellent resistance to corrosion, wear, and high temperatures, making them suitable for harsh environments.
3. Compact and Flexible Design: The helical structure of these springs allows them to fit into compact spaces while still delivering significant sealing force. Their flexibility and adaptability make them ideal for a wide range of applications.
4. Consistent Force Distribution: The canted design ensures that the sealing force is distributed evenly across the contact surface. This helps in creating a reliable seal and preventing leakage, even when subjected to pressure fluctuations or movement.
1. Reliable Sealing Performance: One of the primary advantages of canted coil seal springs is their ability to maintain a consistent and reliable seal. Their design provides even pressure distribution, which helps prevent leaks and ensures effective sealing in various conditions.
2. High Durability: Made from durable materials, they offer long-lasting performance in challenging environments. They resist corrosion, abrasion, and high temperatures, making them suitable for demanding applications.
3. Versatility: Canted coil seal springs are versatile and can be used in a wide range of applications. Their ability to adapt to different sealing surfaces and conditions makes them a valuable component in various industries.
4. Low Maintenance: Due to their robust design and high durability, these springs require minimal maintenance. This leads to reduced downtime and lower maintenance costs for machinery and equipment.
1. Aerospace Industry: In aerospace applications, they are used in fuel systems, hydraulic systems, and avionics. Their ability to maintain a reliable seal under high pressure and extreme temperatures makes them ideal for aerospace components.
2. Automotive Industry: Canted coil seal springs are commonly used in automotive components such as engine seals, transmission seals, and suspension systems. They provide effective sealing in environments exposed to high temperatures and contaminants.
3. Oil & Gas Industry: The oil and gas industry relies on these springs for sealing components in drilling equipment, pumps, and valves. Their resistance to harsh chemicals and high-pressure environments makes them essential for these applications.
4. Industrial Machinery: In industrial machinery, they are used in hydraulic cylinders, pumps, and compressors. Their ability to handle high pressure and maintain a reliable seal makes them suitable for various industrial applications.
1. Installation Considerations: Proper installation is crucial for the effective performance of canted coil seal springs. Ensure that the springs are installed according to manufacturer specifications, and verify that the angled configuration aligns with the sealing surfaces.
2. Regular Inspection: While they are durable, regular inspection is recommended to identify any signs of wear or damage. Periodic checks help ensure that the springs continue to provide reliable sealing performance.
3. Cleaning and Maintenance: In applications where contaminants are present, periodic cleaning of the sealing area can help extend the life of the canted coil seal springs. Removing debris and ensuring that the sealing surfaces are clean will help maintain optimal performance.
Canted coil seal springs play a vital role in ensuring effective sealing across a range of demanding applications. Their unique angled design, combined with high-quality materials, provides reliable sealing performance in high-pressure, high-temperature, and contaminated environments. Besides understanding the design, benefits, and applications of canted coil seal springs, you can contact us for furthermore information and our engineers and technicians will help you to make informed decisions to choose the most suitable product for your requirement.
