Cantilever spring energized seals

Cantilever spring energized seals are specialized seals used in various engineering applications to prevent the leakage of fluids or gases between different components. These seals are designed with a cantilever spring that provides the necessary force to maintain contact between the sealing lip and the mating surface.

Here are some key features and applications of cantilever spring energized seals:

Key Features:

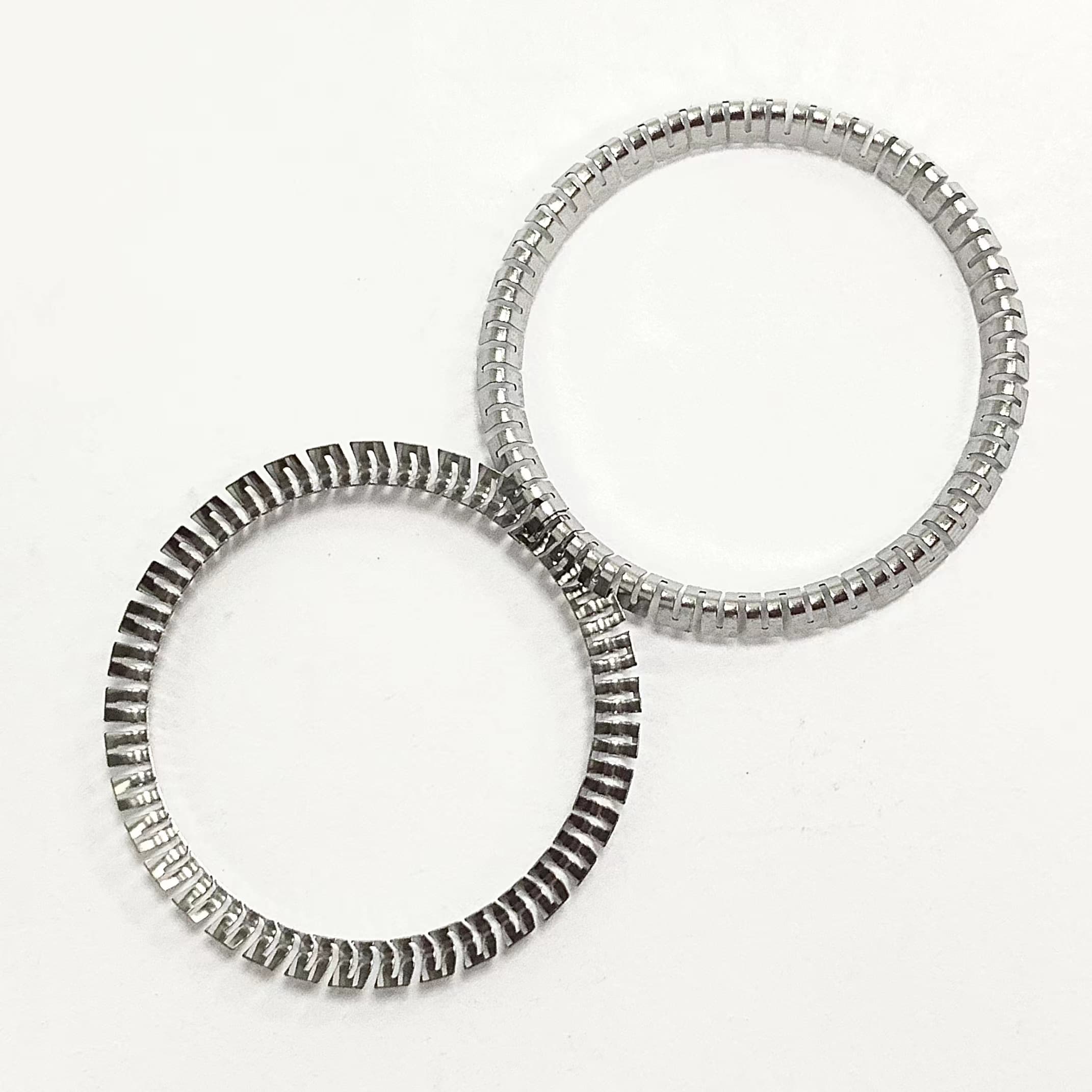

1. Cantilever Spring Design: The seal incorporates a cantilever spring, which is a spring fixed at one end and free at the other. The spring provides radial force, ensuring proper sealing contact.
2. Material Options: Cantilever spring-energized seals can be manufactured using a variety of materials, including polymers, PTFE (polytetrafluoroethylene), or other materials suitable for specific operating conditions.
3. Low Friction: The use of PTFE or other low-friction materials minimizes friction between the seal and the mating surface, reducing wear and extending the seal’s lifespan.
4. High Chemical Resistance: Depending on the material used, these seals can offer excellent resistance to various chemicals and corrosive substances.
5. Wide Temperature Range: Cantilever spring-energized seals can be designed to operate in a broad temperature range, making them suitable for diverse industrial environments.
6. Precision Sealing: The spring-energized design allows for precise sealing, making them suitable for applications where leakage control is critical.

Applications:

1. Aerospace Industry: Cantilever spring-energized seals are used in aerospace applications where low friction, precise sealing, and resistance to extreme temperatures are essential.
2. Oil and Gas Industry: These seals find applications in the oil and gas sector, particularly in high-pressure and harsh chemical environments.
3. Medical Devices: Cantilever spring-energized seals are used in medical devices where precision sealing and bio-compatibility are crucial.
4. Chemical Processing: Due to their chemical resistance, these seals are employed in chemical processing equipment to prevent leaks and ensure the integrity of the process.
5. Automotive Industry: In automotive applications, these seals are used in various components, such as pumps and valves, where effective sealing is required.
6. Semiconductor Manufacturing: The semiconductor industry utilizes these seals in equipment where contamination control and precision sealing are paramount.


It’s important to note that the specific design and material selection of cantilever spring-energized seals can vary based on the intended application and operating conditions.
