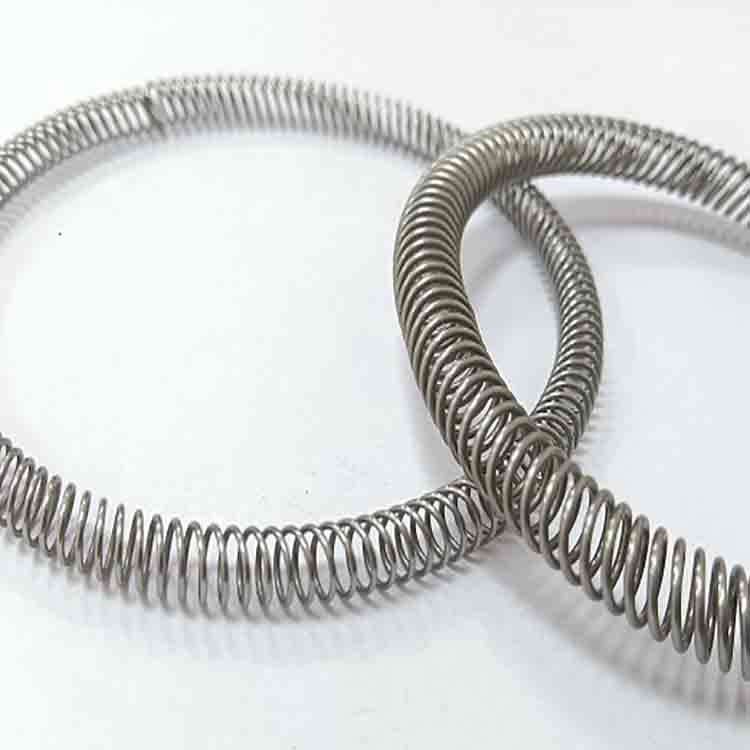

Yes, the orientation of canted coil springs can matter in certain applications. Canted coil springs, also known as slant coil springs or helical wound springs, are designed with a unique geometry where the coils are not perpendicular to the spring axis but are canted or slanted. This design provides some advantages, such as increased deflection and load capacity compared to traditional compression springs.
The orientation of canted coil springs can affect their performance in the following ways:
Load-Bearing Direction:Canted coil springs are typically designed to bear loads in a specific direction, which corresponds to the direction of the coil slant. Using the spring in the correct orientation ensures that it can effectively support the intended load. Using it in the wrong orientation may result in reduced load-carrying capacity or improper spring behavior.
Deflection Behavior:They are known for their ability to provide greater deflection compared to traditional compression springs. The orientation of the coil slant can influence the direction of deflection. Using the spring with the correct orientation ensures that it provides the desired deflection behavior.
Installation and Compatibility: Depending on the application, canted coil springs may need to be installed in a specific orientation to fit properly and function as intended. Ensuring the correct orientation during installation is crucial for their effectiveness.
Torque Generation: In some applications, they may be used to generate torque. The orientation of the coil slant can affect the direction of the torque generated. Using the spring in the wrong orientation may result in unintended torque direction.
Spring Rate: The spring rate of canted coil springs can vary depending on the orientation. The spring rate determines the relationship between the force applied to the spring and the resulting deflection. Using the spring in the correct orientation ensures that the expected spring rate is achieved.
In summary, the orientation of canted coil springs does matter in applications where their unique geometry is leveraged for specific performance characteristics. It is essential to follow the manufacturer’s guidelines and design specifications to ensure that these springs are used correctly and effectively in a given application.
