What is a cantilever V spring and how should use it?
Posted by handaspring

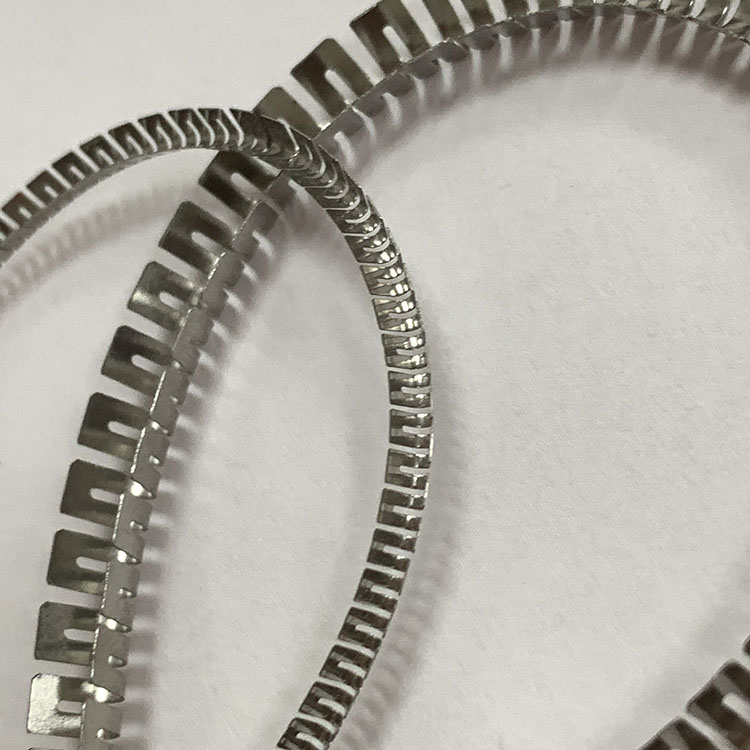

Cantilever V spring is a specially designed spring that combines the shape of a cantilever (cantilever) and a V-shaped spring. This type of spring is often used in applications where it is necessary to provide a specific force or provide elastic support in a limited space.
Features and Design of cantilever V spring:
Shape: Cantilever V springs are usually V-shaped, with one end fixed and the other end free to deflect under load.
Providing force and support: This design allows the cantilever V spring to provide relatively large elastic force in a limited space. It can be used to support or push other components, or provide damping when needed.
Material selection: Common cantilever V-spring materials include metal alloys, and the specific selection depends on the requirements of the application, such as strength, corrosion resistance, etc.
Application areas of cantilever V spring:
Electronic equipment: In some small electronic equipment, cantilever V-springs may be used to provide connection or stability between electronic components.
Switches and control systems: This type of spring is often used in switches and control systems to provide the necessary elastic support.
Instrumentation: In some instrumentation, cantilever V-springs can be used to maintain or adjust the position of components.
Automation systems: In mechanical and automation systems, such springs can be used to achieve specific movements or adjustments.
Precautions for use of cantilever V spring:
Load Limit: When using a cantilever V-shaped spring, you need to pay attention to the load limit to ensure that its designed load range is not exceeded.
Space Constraints: This type of spring is usually designed to be used in a limited space, so the shape and size need to be considered in the design to suit the specific application.
Material durability: According to the specific application environment, choose materials with strong durability and good corrosion resistance.
When selecting and using a cantilever V-spring, it is best to design and optimize it based on specific application needs to ensure it can effectively meet specific functional and performance requirements.
