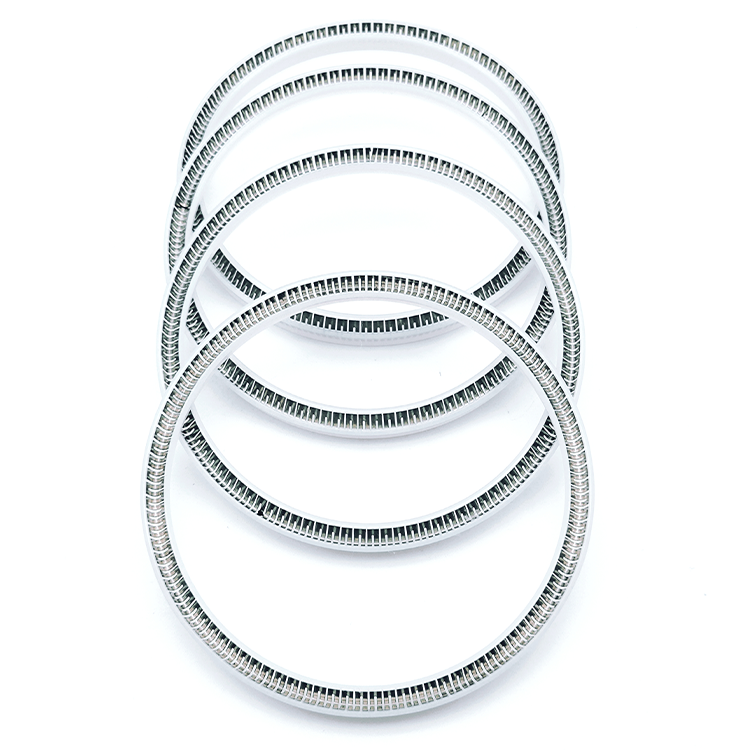

In mechanical systems and engines, the pan plug seal spring ，also called as spring energized seal,is a critical component ensuring the proper functioning and longevity of equipment. This part plays a significant role in maintaining the integrity of the system by providing a secure seal against leaks. Understanding the pan plug seal spring requires delving into its function, design, applications, and maintenance. Here’s an in-depth look at this essential component.
The pan plug seal spring is designed to maintain a tight seal between the pan plug and the engine or machinery pan. Its primary function is to prevent leaks of fluids, such as oil or coolant, which could otherwise compromise the performance of the equipment. By ensuring a secure seal, the spring helps in:
Preventing Fluid Leakage: The spring exerts consistent pressure on the seal, which helps in preventing any fluid from escaping the pan. This is crucial in engines where maintaining proper fluid levels is essential for lubrication and cooling.
Maintaining Pressure: In many systems, maintaining a specific pressure is critical for efficient operation. The pan plug seal spring helps in maintaining this pressure by ensuring a tight seal.
Protecting Internal Components: By preventing leaks, the spring helps in protecting sensitive internal components from potential damage caused by exposure to leaked fluids.
Design and Construction
The design of a pan plug seal spring is typically straightforward but effective. It usually consists of the following components:
Spring Material: The spring is made from materials with good elasticity and corrosion resistance. Common materials include stainless steel or other high-strength alloys that can withstand the operational environment.
Spring Shape: Most pan plug seal springs are helical compression springs. They are designed to compress and expand to maintain a consistent force against the seal. The specific shape and dimensions of the spring can vary based on the application.
Seal Type: The seal itself, often made from rubber or a similar elastomeric material, is designed to complement the spring. The combination of the spring and seal ensures a reliable and durable seal.
Size and Specifications: The size and specifications of the pan plug seal spring are tailored to the requirements of the specific engine or machinery. Factors such as the size of the plug, the type of fluid, and the operating pressure all influence the design.
Applications
Pan plug seal springs are used in a variety of applications across different industries:
Automotive Engines: In automotive engines, the pan plug seal spring is used to seal the oil pan plug. This is crucial for preventing oil leaks and ensuring that the engine remains properly lubricated.
Industrial Machinery: In industrial machinery, the pan plug seal spring helps in sealing the fluid reservoirs or pans, preventing leaks that could affect machinery performance and safety.
Marine Engines: In marine engines, which are often exposed to harsh environments, the pan plug seal spring is essential for ensuring that the engine remains sealed against water and other contaminants.
Aerospace: In aerospace applications, where precision and reliability are critical, the pan plug seal spring ensures that fluid reservoirs remain leak-proof, maintaining the integrity of the system.
Maintenance and Replacement
Proper maintenance of the pan plug seal spring is crucial for ensuring its longevity and effectiveness. Regular inspections should be carried out to check for signs of wear or damage. Here are some key maintenance tips:
Regular Inspections: Periodically check the pan plug and seal for signs of leakage or deterioration. If any issues are detected, inspect the spring to ensure it is providing the necessary pressure.
Cleaning: Keep the area around the pan plug clean to prevent debris from affecting the seal. Regular cleaning can help in maintaining the effectiveness of the seal and spring.
Replacement: If the pan plug seal spring shows signs of fatigue, corrosion, or damage, it should be replaced promptly. Using a spring that meets the original specifications is crucial for maintaining the proper seal.
Proper Installation: When replacing the pan plug seal spring, ensure it is installed correctly. Follow manufacturer guidelines to avoid issues such as improper sealing or excessive pressure.
Conclusion
The pan plug seal spring is a seemingly simple but essential component in many mechanical and automotive systems. Its primary role is to provide a reliable seal to prevent fluid leakage, which is critical for maintaining the performance and safety of the equipment. Understanding its function, design, applications, and maintenance can help in ensuring that systems operate efficiently and have a long service life.And you can contact with professional manufacturer,Zhuoyue Spring,we will solve your problems right now.
