The Ultimate Guide to Full Contact Springs Manufacturing: From Design to Production

Full contact springs represent a sophisticated category of compression springs where adjacent coils maintain continuous contact throughout their operation. Let me elaborate on their key aspects:

Basic Concept and Operation

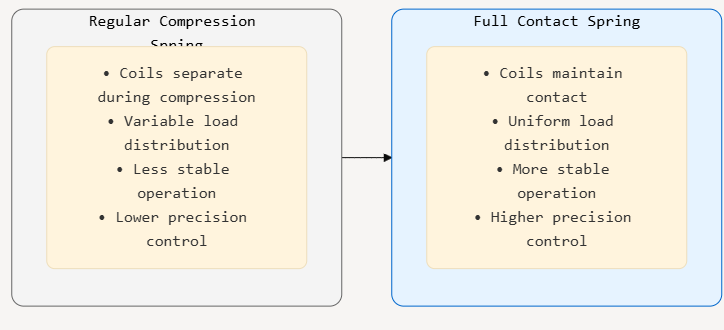

Unlike conventional compression springs where coils separate during compression, full contact springs are specifically designed so that their coils remain in constant contact with each other 1:2. This unique characteristic creates a uniform load distribution across the entire spring length, enhancing stability and predictability in operation.

Manufacturing Considerations

Full contact springs require precise manufacturing techniques to ensure proper coil interaction:

1. Coiling Process – Manufactured using specialized auto-coilers that maintain exact pitch control 2:6

• Wire must be carefully selected and prepared to achieve uniform properties
• Cold winding technique is typically used, followed by heat treatment 1:10

1. End ConfigurationsFour primary configurations are used 2:10:

• Closed, not ground: End coils touch without grinding
• Open, ground: Ends flattened for improved load bearing
• Open: Consistent pitch throughout
• Closed, squared, ground: Parallel ends for maximum stability

Material Selection

Material choice is critical for full contact springs due to their unique operational demands:

1. Primary Materials Used 2:8:
   – Music Wire: Offers superior strength and surface finish

• Oil Tempered MB: Provides controlled tensile strength
• Stainless Steel: Ideal for corrosive environments
• Hard-Drawn MB: Cost-effective option for basic applications

1. Environmental Considerations 2:5:
   – Moisture/humidity resistance

• Chemical exposure tolerance
• Temperature extremes
• Corrosion protection requirements

Design Parameters

Critical design elements include:

1. Wire Shape Options 2:9:
   – Round wire: Maximum energy storage capacity

• Square wire: More efficient space utilization

1. Performance Specifications 1:8:
   – Force requirements at specific lengths

• Maximum deflection limits
• Spring rate calculations
• Load distribution patterns

Applications

Full contact springs serve critical roles in various industries 1:3:

• Automotive systems requiring precise control
• Industrial machinery needing stable operation
• Construction equipment demanding reliability
• Energy sector applications requiring precision
• Transportation systems needing consistent performance

Quality Control Measures

To ensure optimal performance, manufacturers implement several quality control measures 1:13 1:14:

1. Fatigue Testing – Cycle testing between load points

• Life expectancy evaluation
• Failure analysis

1. Performance Validation – Real-world environment simulation

• Dimensional accuracy verification
• Load distribution monitoring

Common Challenges

Manufacturers must address several challenges 1:16 1:17 1:18:

1. Structural Issues – Overloading prevention

• Corrosion protection
• Material fatigue management

1. Operational Concerns – Maintaining consistent coil contact

• Preventing premature wear
• Ensuring uniform load distribution

This comprehensive overview covers the key aspects of full contact springs, from their fundamental operation to manufacturing considerations and applications. Their unique design ensures consistent performance under load, making them particularly valuable in precision applications where predictable behavior is crucial.
