Discover the complete canted coil spring design checklist for engineers. Learn how to optimize spring force, material selection, groove design, EMI shielding, and sealing performance for high-reliability applications.
Canted coil springs are widely used in demanding industries such as aerospace, medical devices, semiconductor manufacturing, oil & gas, and high-performance electronics. Their unique angled-coil structure provides nearly constant spring force, low insertion force, reliable conductivity, and long cycle life.
However, designing a successful canted coil spring system requires more than selecting a standard spring size. Engineers must carefully evaluate factors such as operating environment, load-deflection characteristics, groove geometry, electrical requirements, and long-term reliability.
This article provides a practical canted coil spring design checklist to help engineers reduce design risks, improve product performance, and avoid costly failures.

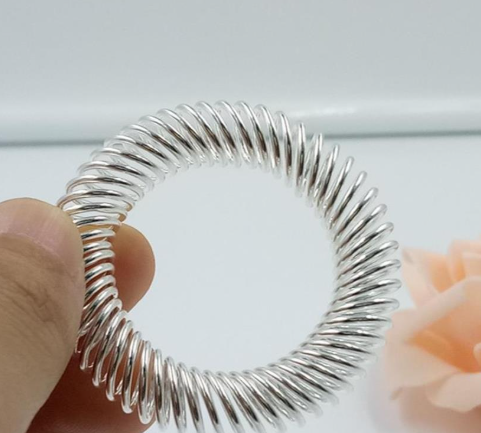

A canted coil spring is a special helical spring made from coils positioned at an angle relative to the spring axis. Unlike traditional compression springs, canted coil springs offer:
These springs are commonly used in:
Improper spring design can result in:
| Design Problem | Potential Failure |
|---|---|
| Incorrect force selection | Seal leakage or wear |
| Poor material choice | Corrosion or fatigue |
| Improper groove dimensions | Spring deformation |
| Electrical mismatch | High contact resistance |
| Inadequate testing | Premature product failure |
Using a structured engineering checklist helps improve consistency, reliability, and manufacturing efficiency.
Before selecting a spring, engineers should clearly define the operating conditions.
Understanding these conditions helps narrow down the proper spring configuration.
Spring force is one of the most critical design parameters.
Choosing excessive force may cause:
Insufficient force may result in:
Select the lowest spring force capable of maintaining reliable performance.
Canted coil springs provide nearly constant force over a wide deflection range.
Engineers should analyze:
| Parameter | Importance |
|---|---|
| Initial insertion force | Assembly performance |
| Working deflection | Operational reliability |
| Maximum compression | Prevent overloading |
| Recovery characteristics | Long-term durability |
Always review manufacturer load-deflection curves before finalizing the design.
Material selection directly affects corrosion resistance, fatigue life, conductivity, and temperature capability.
| Material | Typical Use |
|---|---|
| Stainless Steel 302 | General industrial applications |
| Stainless Steel 316 | Corrosion-resistant environments |
| Elgiloy® | Medical and marine applications |
| MP35N® | Aerospace and high-strength systems |
| Inconel® | High-temperature environments |
| Beryllium Copper | High electrical conductivity |
Proper groove design is essential for spring performance.
Incorrect groove geometry can cause:
Manufacturers often provide recommended groove specifications for optimal performance.
Environmental factors significantly affect spring reliability.
For example:
Environmental analysis should always be completed during early-stage design.
For conductive applications, engineers must evaluate electrical performance carefully.
| Plating | Benefits |
|---|---|
| Gold | Excellent corrosion resistance |
| Silver | High conductivity |
| Nickel | Wear resistance |
| Tin | Cost-effective conductivity |
Electrical contact reliability is especially critical in aerospace, medical, and battery systems.
In EMI/RFI shielding applications, spring geometry and conductivity must work together.
Poor shielding design may lead to electromagnetic leakage and signal interference.
Canted coil springs are often used in applications involving repeated cycling.
Engineers should estimate expected service life and validate it through testing.
Assembly issues are frequently overlooked during design.
Prototype testing helps identify installation problems before mass production.
Laboratory calculations alone are not sufficient for critical applications.
| Test | Purpose |
|---|---|
| Compression cycle testing | Fatigue evaluation |
| Salt spray testing | Corrosion resistance |
| Thermal cycling | Temperature durability |
| Contact resistance testing | Electrical stability |
| Vacuum testing | Low outgassing validation |
Testing under actual operating conditions greatly improves long-term reliability.
An experienced spring manufacturer can help optimize:
Engineering support during early-stage development often reduces redesign costs and accelerates product qualification.
HANDA provides precision-engineered canted coil spring solutions for high-reliability industries worldwide.
HANDA supports both standard and custom spring requirements for complex engineering applications.
Before finalizing your canted coil spring design, confirm the following:
✅ Application requirements defined
✅ Spring force verified
✅ Load-deflection curve reviewed
✅ Material compatibility confirmed
✅ Groove dimensions optimized
✅ Environmental conditions evaluated
✅ Electrical requirements validated
✅ EMI shielding performance checked
✅ Fatigue life estimated
✅ Assembly testing completed
✅ Real-world validation performed
Designing a reliable canted coil spring system requires careful attention to mechanical, electrical, environmental, and manufacturing factors. A structured engineering checklist helps reduce design errors, improve product reliability, and extend operational life.
By evaluating spring force, materials, groove geometry, environmental exposure, and testing requirements early in the design process, engineers can avoid costly failures and achieve optimal performance in demanding applications.
Partnering with an experienced manufacturer like HANDA further ensures consistent quality, engineering support, and long-term reliability for critical systems.
