Cantilever U Springs: An Significant Spring Energized Seals with Special Design

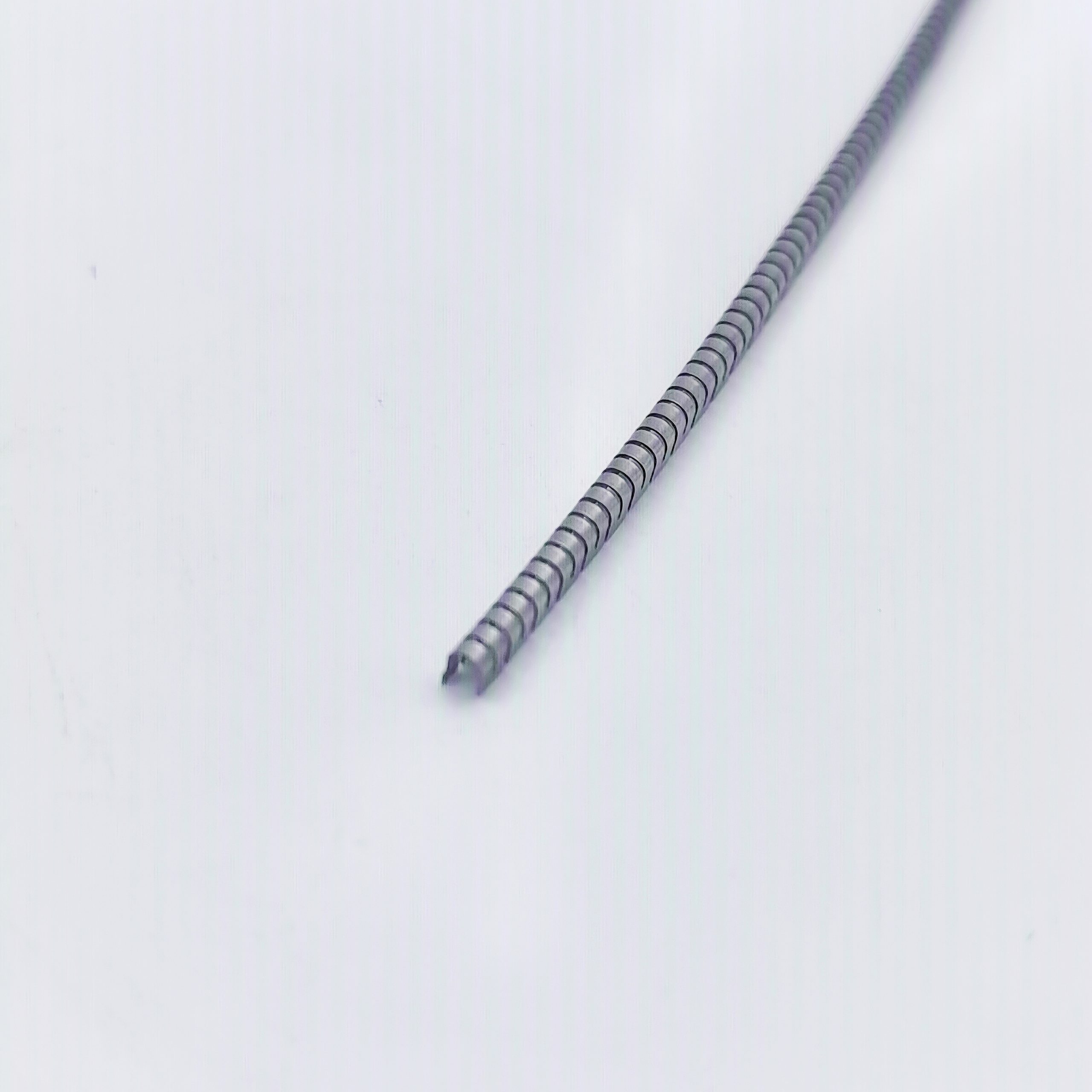

Cantilever U springs are a type of sealing spring that features a U-shaped design. They are characterized by a single, fixed end and a free end, which allows them to act like a cantilever beam. This configuration helps absorb and dissipate mechanical stress, making them effective in a variety of applications where flexibility and strength are required.

Design and Construction

1. Shape and Structure: Cantilever U springs typically have a U-shaped profile, which contributes to their ability to absorb shock and reduce vibrations. The spring is usually made from high-strength steel or composite materials, ensuring durability and performance under load.
2. Mounting: The fixed end of the U spring is securely mounted to a frame or base, while the free end is allowed to move. This design enables the spring to flex and return to its original shape, providing a consistent force over its range of motion.
3. Customization: Cantilever U springs can be customized in terms of length, thickness, and material to meet specific application requirements. This adaptability makes them suitable for a wide range of industrial and automotive uses.

Applications of Cantilever U Springs

1. Construction: Cantilever U springs are also used in construction equipment to manage stress and vibrations. Their robust design makes them ideal for heavy-duty applications where durability is crucial.
2. Automotive Industry: In vehicles, cantilever U springs are used in suspension systems to improve ride quality and stability. Their ability to absorb shocks helps enhance vehicle handling and comfort.
3. Industrial Machinery: These springs are employed in various industrial machines and equipment to support moving parts and reduce wear and tear. They are particularly useful in applications where space is limited but flexibility and strength are required.


Advantages of Cantilever U Springs

1. Flexibility: The U-shaped design allows for significant flexing, which helps in absorbing and dissipating mechanical energy efficiently.
2. Durability: Made from high-strength materials, cantilever U springs are built to withstand heavy loads and extreme conditions, ensuring a long service life.
3. Cost-Effectiveness: Their simple design and robust construction often translate into lower maintenance costs and longer intervals between replacements.
4. Customizability: The ability to tailor the size and material of cantilever U springs to specific applications makes them a versatile choice for many industries.

Cantilever U springs are essential components in many mechanical systems, offering flexibility, durability, and effective stress absorption. Their U-shaped design and customizable nature make them suitable for a wide range of applications, from automotive to industrial machinery. Understanding their design and benefits can help industries optimize performance and maintain reliability in their equipment.
