Springs are one of the most commonly used mechanical components in engineering. They are designed to store energy, absorb shock, and provide flexible force in a variety of applications. Cantilever V springsand canted coil springs are two such types of springs, each designed with unique features to serve different purposes. While both springs share some similarities, their designs, functionalities, and ideal applications differ significantly.
In this article, we will explore Cantilever V springs and Canted Coil springs, looking into their characteristics, design, materials, manufacturing, and real-world applications. We will also compare these two types of springs to help clarify their uses in various industries.
1. Understanding Cantilever V Springs

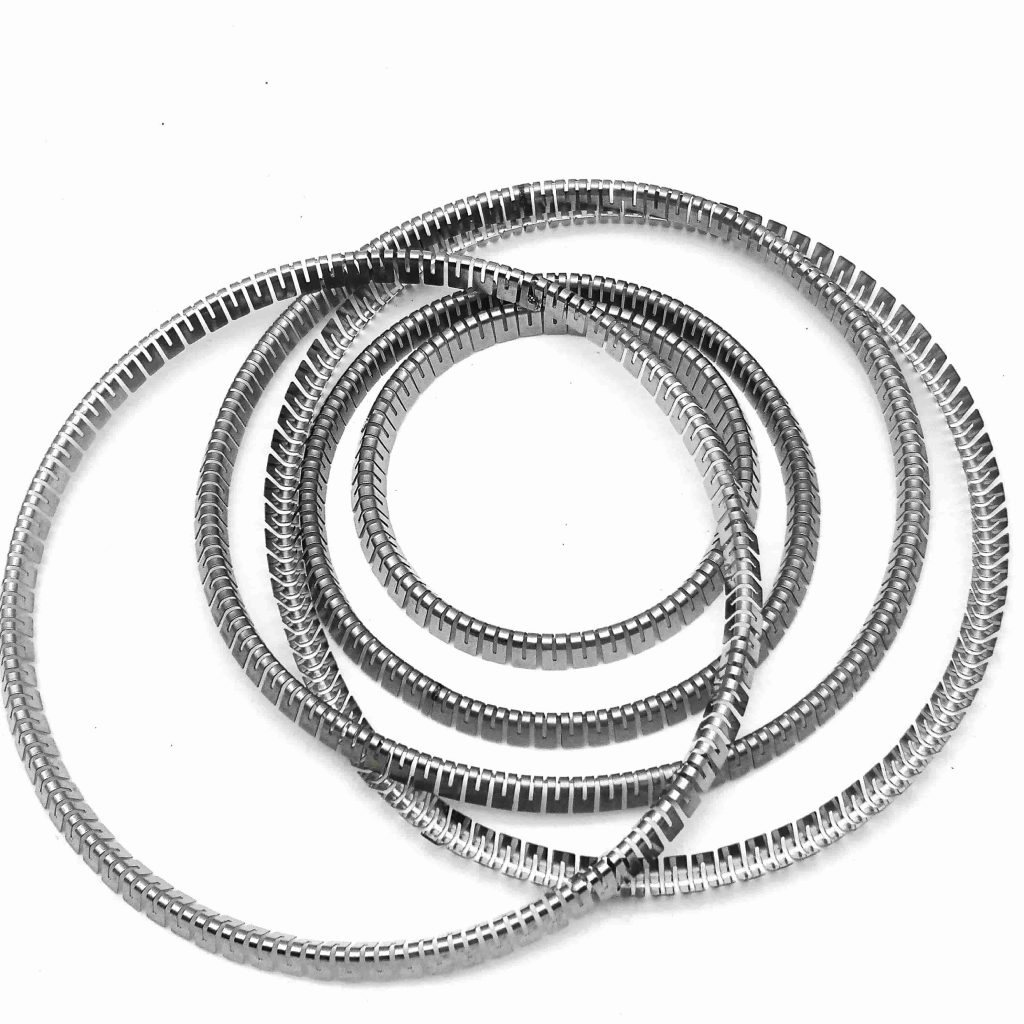

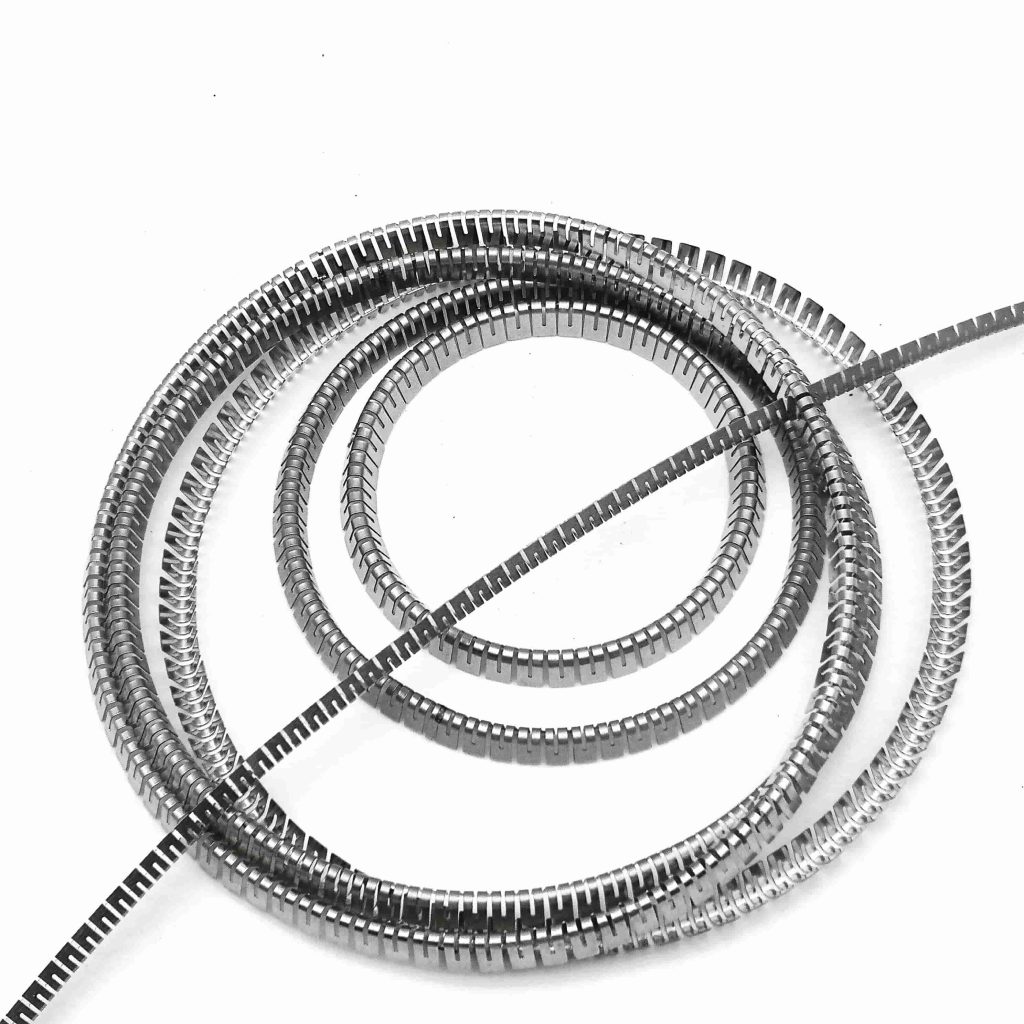

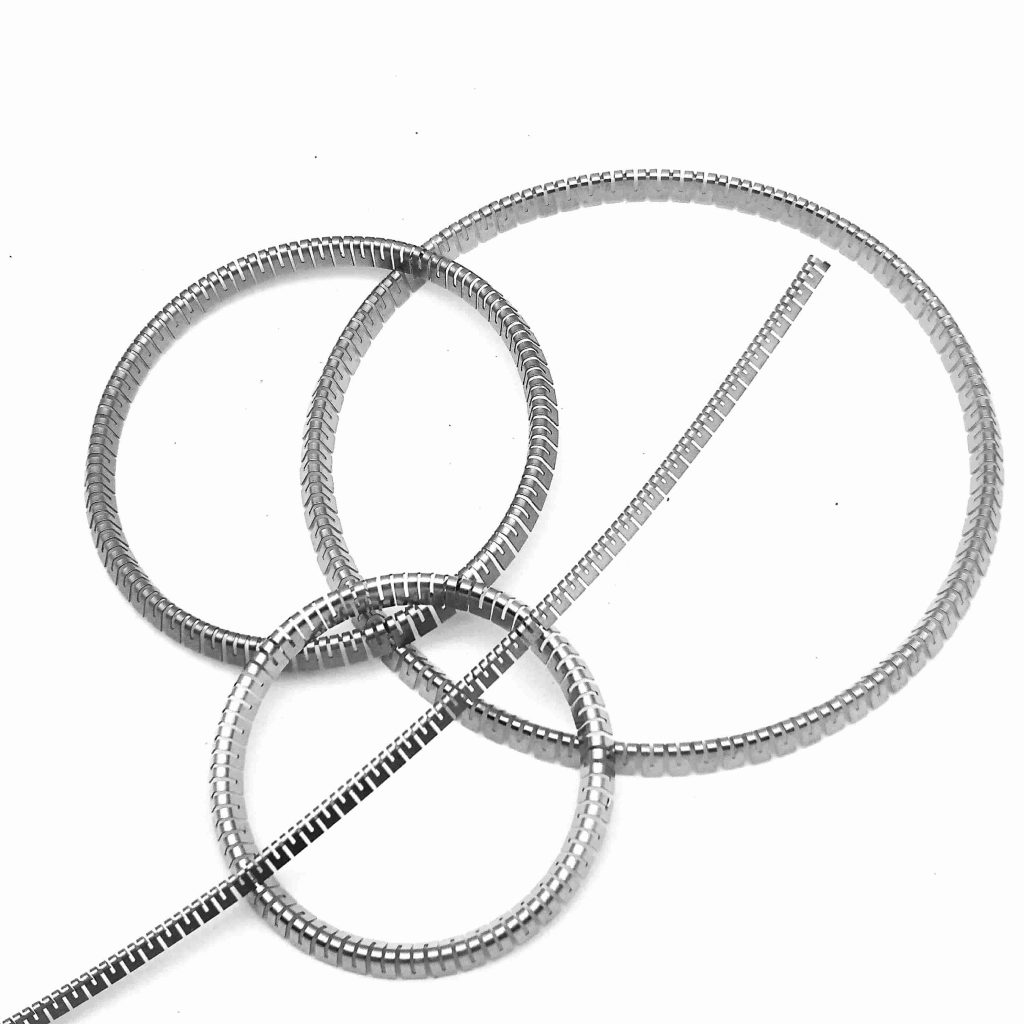

1.1. What are Cantilever V Springs?
Cantilever V springs, sometimes referred to as V-shaped leaf springs, are mechanical springs that are designed with a V-shaped geometry. One end of the spring is typically fixed to a surface or frame, while the other end is free to move. This free end allows the spring to compress or extend when a force is applied, providing energy storage, force distribution, and shock absorption.
The cantilevered configuration refers to the way the spring is fixed—at one end, leaving the other end free to flex or move. This design allows the spring to act like a lever, amplifying the effect of the load and deflection.
Cantilever V springs are typically made from flat spring steel, carbon steel, or other high-strength alloys, and are often used in applications that require high deflection, load-bearing capacity, and shock absorption.
1.2. Key Features of Cantilever V Springs
V-shaped Design: The most defining characteristic of cantilever V springs is their distinctive V-shape. This design offers a larger deflection when loaded, making them ideal for energy storage and shock absorption.
Cantilever Configuration: The spring is fixed at one end while the other end remains free to move. This setup provides flexibility in how the spring absorbs forces and deflects under load.
Load Distribution: The V-shape helps to distribute forces evenly across the spring, preventing stress concentration at any particular point and thus extending the spring’s lifespan.
Deflection: V springs can deflect significantly under load, which makes them ideal for applications requiring large movements or cushioning against impacts.
Durability and Fatigue Resistance: The materials used in cantilever V springs are often chosen for their durability, especially under cyclic loading. Steel alloys with high fatigue resistance are commonly used to ensure that the spring can withstand repeated deflections.
1.3. Applications of Cantilever V Springs
Cantilever V springs are used in a wide variety of industries and applications, primarily where shock absorption, load-bearing, and deflection are critical. Some notable applications include:
Automotive Suspension Systems: V springs are commonly found in automotive suspension systems, especially in older vehicles or in industrial machinery. They help absorb shock and reduce vibrations by allowing controlled deflection.
Heavy Machinery: Used in applications where heavy loads are involved, such as in lifting equipment, machinery supports, or structural components, V springs provide the necessary energy storage and shock absorption.
Construction: V springs are used in large machines and equipment for load-bearing or shock-damping functions.
Electronics: In some mechanical and electrical systems, cantilever V springs are used to provide pressure for contacts or in cases where adjustable mechanical force is needed.
2. Canted Coil Springs: An Overview

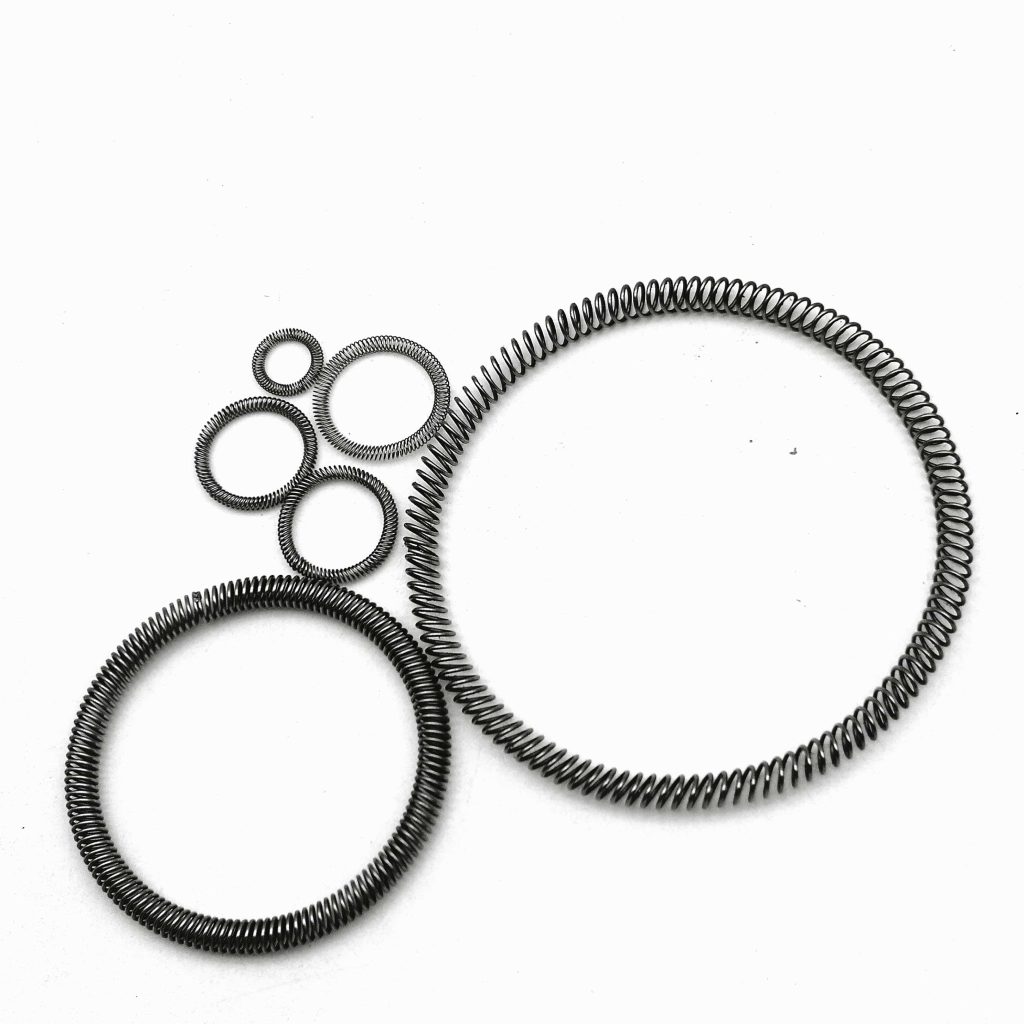

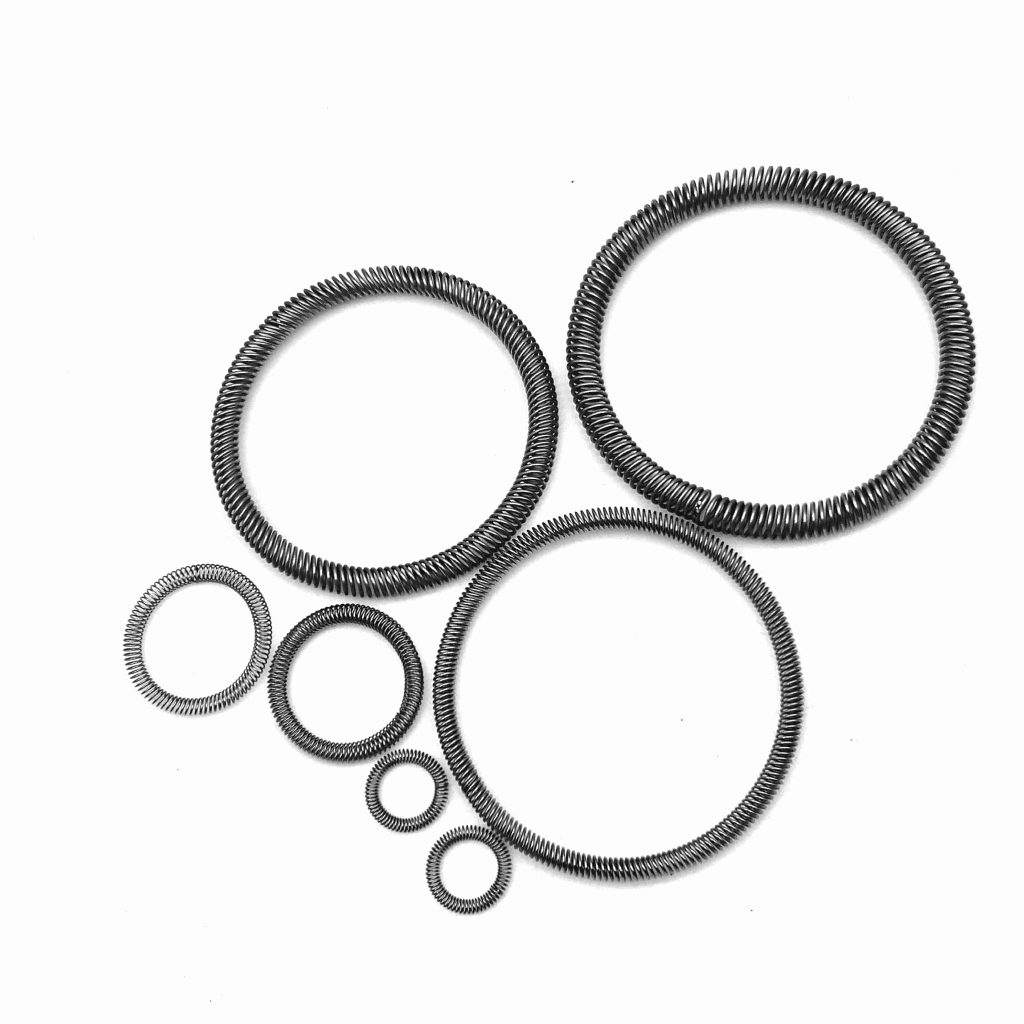

2.1. What are Canted Coil Springs?
Canted coil springs, or slant coil springs, are a type of spring made by winding a continuous wire at an angle (or cant) to the axis of the spring. This design provides unique advantages over traditional cylindrical springs, including higher load capacity, flexibility, and consistent pressure over long periods.
The coil’s angle—often around 45 degrees—gives it its “canted” shape. The coils are often wound using a flat wire, and the spring’s shape is made by winding the wire around a mandrel. The result is a spring that can store energy, maintain a consistent force, and provide support in dynamic environments.
2.2. Key Features of Canted Coil Springs
Coil Design: Unlike traditional compression or extension springs, canted coil springs use a continuous coil wound at an angle to the axis. This results in a spring that has a unique ability to handle both radial and axial loads simultaneously.
High Load Capacity: Canted coil springs can support higher loads without significant deformation. Their design distributes the load evenly across the spring’s length, providing efficient load-bearing capacity.
Constant Force: One of the key advantages of canted coil springs is their ability to maintain a consistent force over a wide range of deflections. This feature makes them highly effective in applications requiring steady pressure, such as in sealing and electrical contact applications.
Durability: The design of canted coil springs ensures that they are highly resistant to fatigue and can withstand repeated loading cycles. Their continuous coil structure ensures that there is no weak point in the spring.
Space Efficiency: Canted coil springs are often used in applications where space is limited because they provide a high force output in a compact form.
2.3. Applications of Canted Coil Springs
Canted coil springs are used in specialized applications where their ability to handle high loads and provide consistent force is crucial. Some of the main industries and applications include:
Electrical Contacts: Canted coil springs are widely used in electrical connectors and contacts. Their design ensures a reliable electrical connection by providing a constant force against the contact surfaces, improving electrical performance and durability.
Sealing Applications: These springs are used in sealing devices such as gaskets or O-rings, where they help maintain constant pressure to ensure a tight seal and prevent leakage. The ability of the spring to maintain pressure over long periods is crucial in such applications.
Automotive Components: In the automotive industry, canted coil springs are often used in suspension systems, engine components, and sealing systems where consistent force and high load-bearing capacity are required.
Aerospace and Military: Due to their durability and ability to withstand extreme conditions, canted coil springs are also used in aerospace and military applications where high performance and reliability are critical.
Medical Devices: Canted coil springs are used in medical devices where consistent pressure and high fatigue resistance are necessary. For example, in prosthetics, they provide stable mechanical support.
3. Design Differences: Cantilever V Springs vs. Canted Coil Springs
While both Cantilever V springs and Canted Coil springs serve important roles in mechanical systems, their design, behavior under load, and ideal applications differ significantly.
3.1. Shape and Geometry
Cantilever V Springs: These springs have a V-shaped geometry, often formed from flat steel or spring steel. The V-shape allows them to deflect significantly under load, providing shock absorption and energy storage. Their cantilevered design means one end is fixed, and the other is free to move, acting as a lever to distribute the applied force.
Canted Coil Springs: In contrast, canted coil springs have a continuous coil shape wound at an angle. This design allows the spring to handle both axial and radial loads efficiently, providing constant force across a wide range of deflections.
3. Load Distribution and Deflection
Cantilever V Springs: These springs are excellent at distributing loads across their length, but their primary function is to absorb shock and allow for large deflection. When force is applied, the V-shape flexes, allowing the spring to store energy and cushion impacts.
Canted Coil Springs: Canted coil springs excel at providing consistent force across a range of deflections. The angle of the coil allows it to support high loads with low deflection, making them ideal for applications requiring steady pressure, such as in sealing or electrical contacts.
3. Applications
Cantilever V Springs: Primarily used in applications that require shock absorption and deflection, such as automotive suspension systems, heavy machinery, and electrical contacts that need some flexibility.
Canted Coil Springs: These springs are more suited for applications requiring high load-bearing capacity, constant pressure, and fatigue resistance, such as electrical connectors, seals, and aerospace components.
4. Material Choices for Cantilever V Springs and Canted Coil Springs
4.1. Materials for Cantilever V Springs
Cantilever V springs are made from materials that can withstand high stress and deflection, such as:
Spring Steel: Known for its excellent tensile strength and fatigue resistance.
Stainless Steel: Offers good corrosion resistance and is often used in outdoor or harsh environments.
Carbon Steel: Cost-effective and used in non-corrosive environments, providing high strength.
4.2. Materials for Canted Coil Springs
Canted coil springs require materials that offer both flexibility and high fatigue resistance:
Stainless Steel: Commonly used for canted coil springs due to its resistance to corrosion and ability to withstand repeated loading.
Phosphor Bronze: Used for electrical contact springs due to its excellent conductivity and corrosion resistance.
Beryllium Copper: Often used in applications requiring both high conductivity and strength, such as in electrical connectors.
5. Conclusion
Comparison: Cantilever V Springs vs. Canted Coil Springs
Feature
Cantilever V Springs
Canted Coil Springs
Shape
V-shaped (flat steel bent into a V)
Coil-shaped, wound at an angle
Design
One end fixed, other end free (cantilevered)
Continuous coil wound at a cant angle to the axis
Deflection
High deflection in a V-shape
Can handle moderate deflection, often under load
Load Distribution
Distributes load across the spring’s length
Efficient load distribution with high radial and axial load capacity
Both Cantilever V springs and Canted Coil springs serve unique purposes in mechanical systems, but their designs and ideal applications differ. Cantilever V springs, with their V-shaped geometry and cantilevered configuration, excel in applications requiring large deflections and shock absorption. On the other hand, Canted Coil springs are designed for high load capacity, consistent force, and fatigue resistance, making them ideal for electrical contact and sealing applications.
Understanding the distinctions between these two types of springs can help engineers select the right spring for their specific needs, ensuring reliable performance in everything from automotive suspension to electronic devices and heavy machinery. Whether you need a spring that can absorb shock or one that maintains constant pressure, both cantilever V springs and canted coil springs provide essential functions across a wide range of industries.
