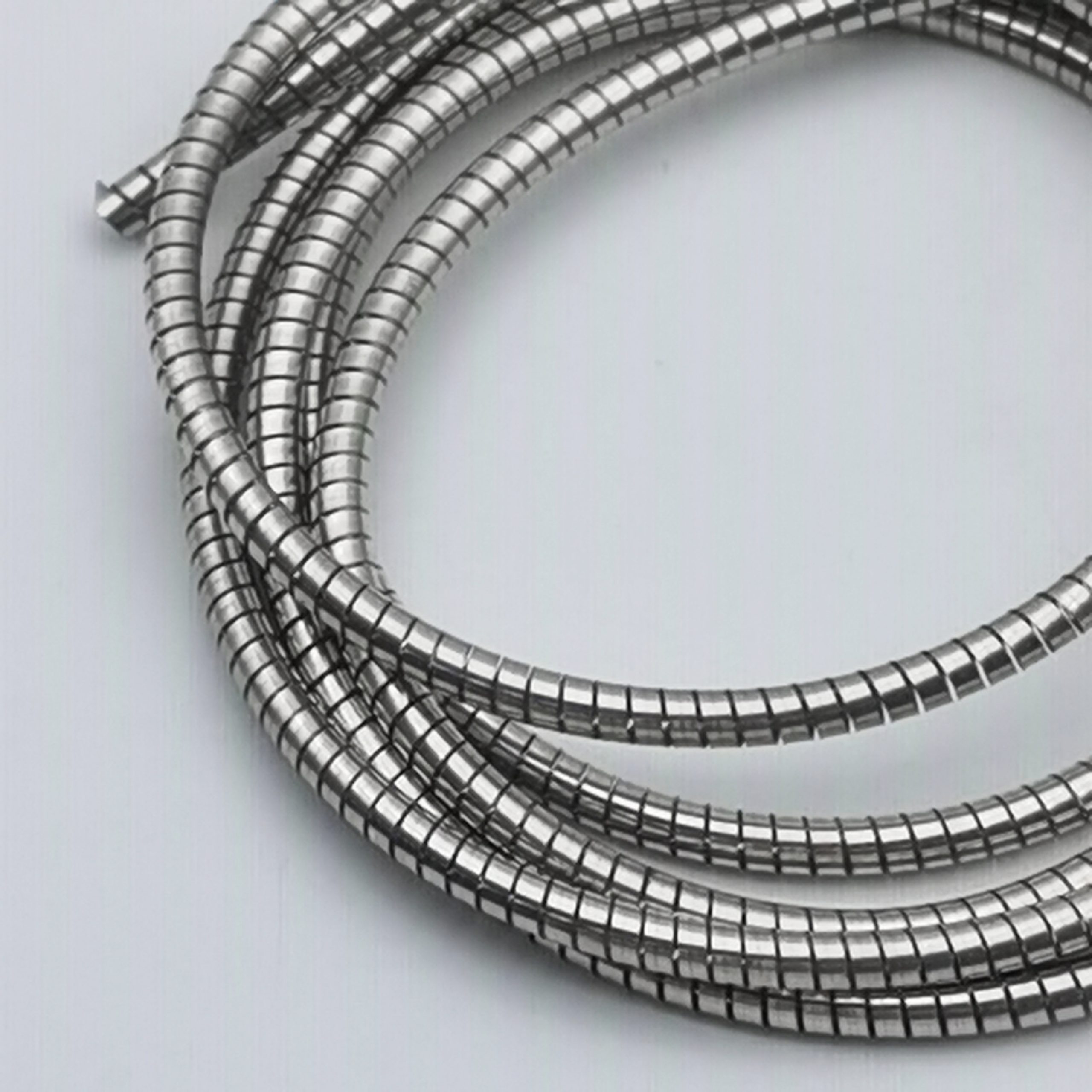

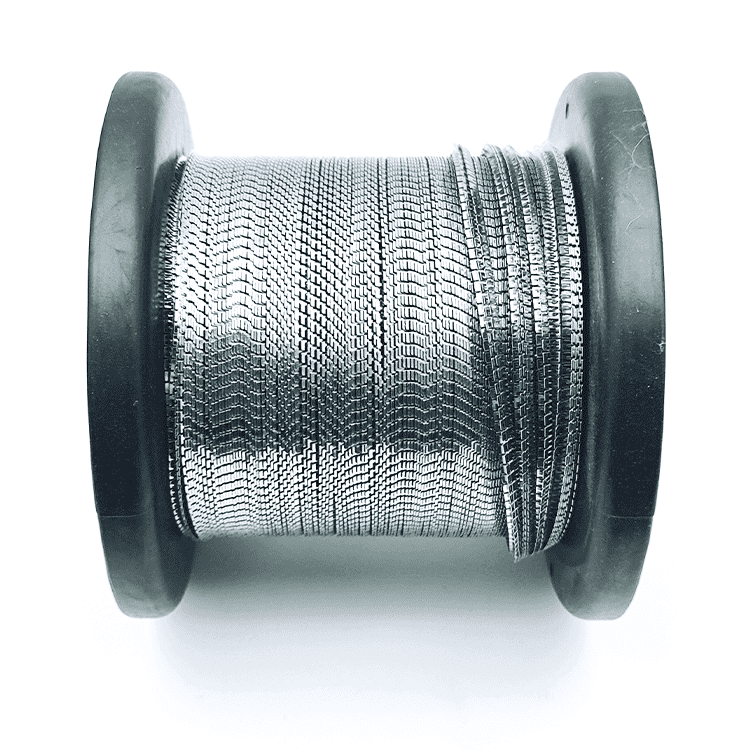

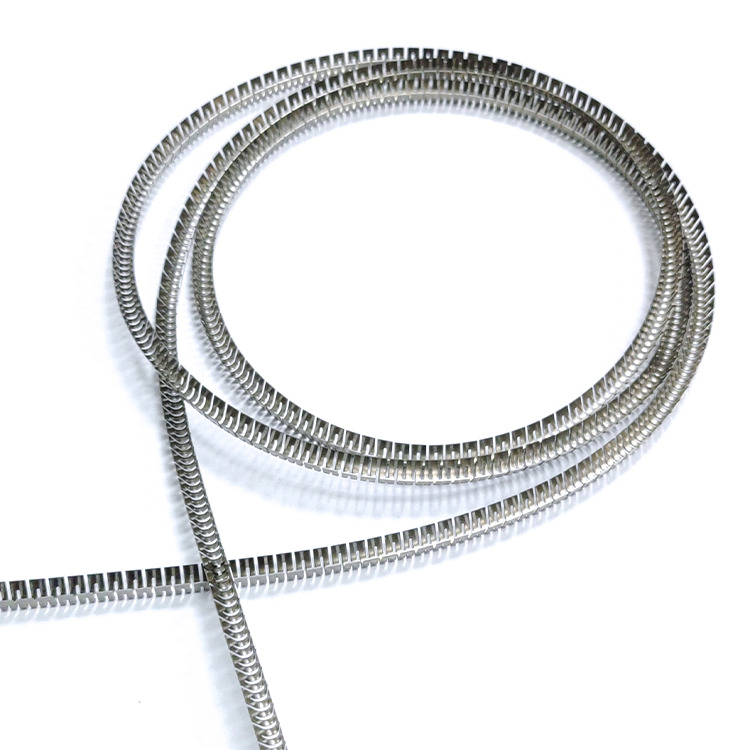

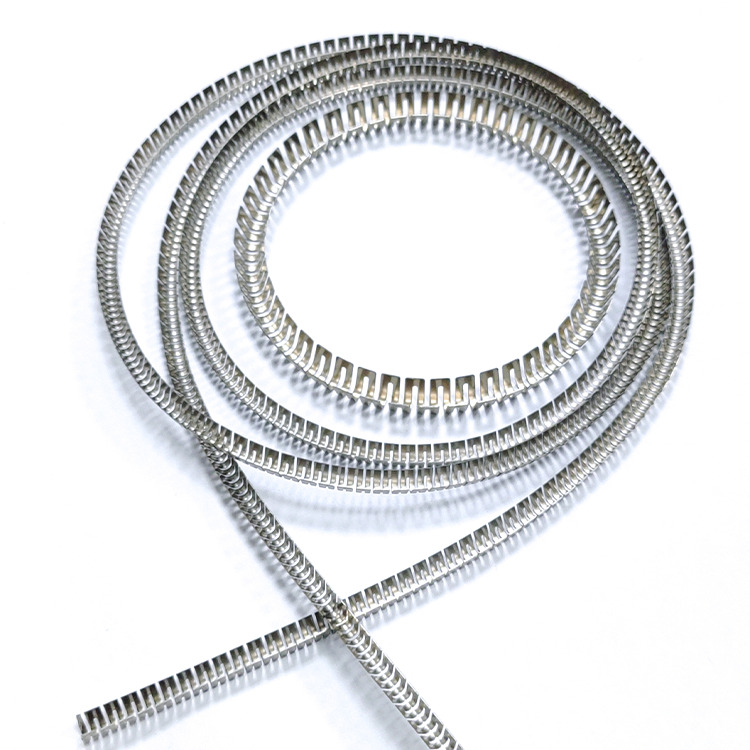

Handa Cantilever V springs are a type of spring used predominantly in sealing applications. Their distinctive V-shaped cross-section and specific design allow them to function as efficient sealing components, particularly in environments requiring precise pressure and high performance.
Design and Structure of Cantilever V Springs
Handa Cantilever V springs are typically designed with a V-shaped cross-section that provides them with unique characteristics for sealing and mechanical force applications. This shape allows the spring to exert force at its edges, ensuring that it remains in constant contact with a surface, such as a rotating shaft or a sealing lip, to maintain an effective seal.
Key design elements include:
V-Shaped Cross-Section: The V shape allows the spring to apply an even, distributed force along its sealing lips, ensuring that the seal is maintained under varying operational conditions. The configuration helps create consistent contact, preventing leakage of fluids or gases.
Elastic Deformation: As the spring deforms elastically under load, it provides a constant sealing force, making it ideal for dynamic sealing applications, where the seal needs to move with the parts it is sealing.
Preload Capability: The V-shaped spring can generate enough preload to press the sealing lips against the mating surface with controlled pressure, which ensures a reliable seal even in high-pressure environments.
Performance Characteristics of Cantilever V Springs
Handa Cantilever V springs are designed to provide several key benefits, making them an ideal choice for sealing in many demanding environments.
Effective Sealing: The V-shape allows the spring to exert pressure at the lip of the seal, ensuring that it maintains contact with the shaft or housing. This pressure is sufficient to create a tight, effective seal that prevents the leakage of media such as oils, gases, or water.
Tolerance to Misalignment: Cantilever V springs are particularly effective in applications where the shaft and housing might experience slight misalignments. Their ability to accommodate such misalignments without compromising the seal makes them a popular choice for industrial machinery.
Versatile Load Capacity: Cantilever V springs are capable of handling both low and medium load ranges. Their ability to deform elastically under pressure means they can accommodate fluctuations in pressure or temperature without losing sealing effectiveness.
High Durability: These springs are designed to withstand repeated cycles of compression and relaxation, making them durable in environments where parts are constantly in motion, such as rotary shafts or reciprocating pistons.
Wide Range of Operating Temperatures: Cantilever V springs can perform effectively in environments with varying temperatures, including those that reach extremes such as high heat or cryogenic conditions.
Applications of Cantilever V Springs
Handa Cantilever V springs are widely used in a variety of industries, thanks to their reliability and performance. Common applications include:
Sealing in High-Pressure Environments: Cantilever V springs are used in high-pressure systems, such as hydraulic cylinders, presses, water jet cutting machines, and air compressors. They can maintain an effective seal even under pressures up to 400 MPa.
High-Speed Sealing: These springs are also effective in high-speed applications, such as in rotating shafts or reciprocating pistons, where they maintain a reliable seal even with rapid movements. The V-shape helps the spring stay in continuous contact with the sealing surface, ensuring leak prevention.
Sealing for Special Work Media: Cantilever V springs are frequently used to seal fluids or gases that require resistance to corrosion or high temperatures. These springs can effectively seal aggressive chemicals, steam, brake fluids, and seawater.
Automotive and Aerospace: In automotive or aerospace applications, where dynamic sealing is critical for systems like engine seals or fuel system seals, cantilever V springs provide a durable, long-lasting solution.
Medical Devices: These springs are also used in the medical industry, particularly in devices where precision sealing is required, such as in surgical equipment or medical pumps, where leakage of liquids or gases must be prevented.
Industrial Seals: Used in a wide range of industrial machinery for sealing moving parts, such as in oilfield equipment, pumps, compressors, and motors.
Material Selection for Cantilever V Springs
The materials chosen for Handa cantilever V springs depend largely on the specific application and environmental conditions. Key material options include:
Stainless Steel (SS301/304/316): Known for its corrosion resistance and strength, Stainless Steel is commonly used in applications that require both structural integrity and environmental resistance.
Elgiloy®: A high-performance alloy that offers exceptional corrosion resistance and fatigue strength, making it ideal for demanding applications such as chemical processing or high-pressure sealing.
HYNOX®: Known for its ability to perform under extreme conditions, HYNOX® is used in environments where both corrosion resistance and high strength are needed.
Hastelloy®: A nickel-based alloy that provides superior resistance to high temperatures and corrosion, Hastelloy® is often used in extreme chemical environments or high-temperature industrial applications.
Inconel®: A high-temperature nickel alloy used in environments with both high temperatures and aggressive chemicals, Inconel® springs are commonly used in aerospace, energy, and chemical processing applications.
The material choice is influenced by factors such as temperature, pressure, chemical exposure, and the mechanical load requirements of the sealing application.
Design and Installation Considerations
Proper design and installation of Handa cantilever V springs are essential for achieving the desired sealing performance. The following guidelines can help ensure the springs function as intended:
Designing the Sealing Lip: The shape and angle of the sealing lip should be designed according to the operating conditions and the nature of the sealed media. Proper lip design maximizes sealing effectiveness by ensuring that the spring applies sufficient force to maintain constant contact with the sealing surface.
Preload Force: The preload must be carefully selected to ensure that the spring exerts sufficient force on the sealing lips. This force ensures that the sealing lips remain in contact with the mating surface, providing a reliable and effective seal.
Installation Guidelines:
Surface Preparation: Ensure the sealing surfaces are clean, dry, and free from contaminants before installing the spring. This reduces the risk of damage to the spring and the sealing surface.
Alignment: Proper alignment of the spring with the sealing surface is critical to prevent eccentric wear and ensure a long service life for both the spring and the seal.
Pressure Application: Apply pressure evenly during installation to avoid damaging the spring’s sealing lips or compromising the spring’s functionality.
Conclusion
Handa Cantilever V springs offer a reliable, durable, and versatile solution for sealing applications across a variety of industries. Their unique V-shaped design ensures that they provide consistent sealing pressure, accommodate misalignments, and handle high temperatures and pressures. By carefully selecting the right materials, designing to meet specific sealing requirements, and following proper installation procedures, these springs deliver optimal performance, enhancing the reliability and efficiency of equipment in demanding environments.
Whether used in automotive, aerospace, or industrial applications, Handa cantilever V springs are indispensable in ensuring effective sealing and preventing leakage, making them a crucial component in many high-performance systems.
