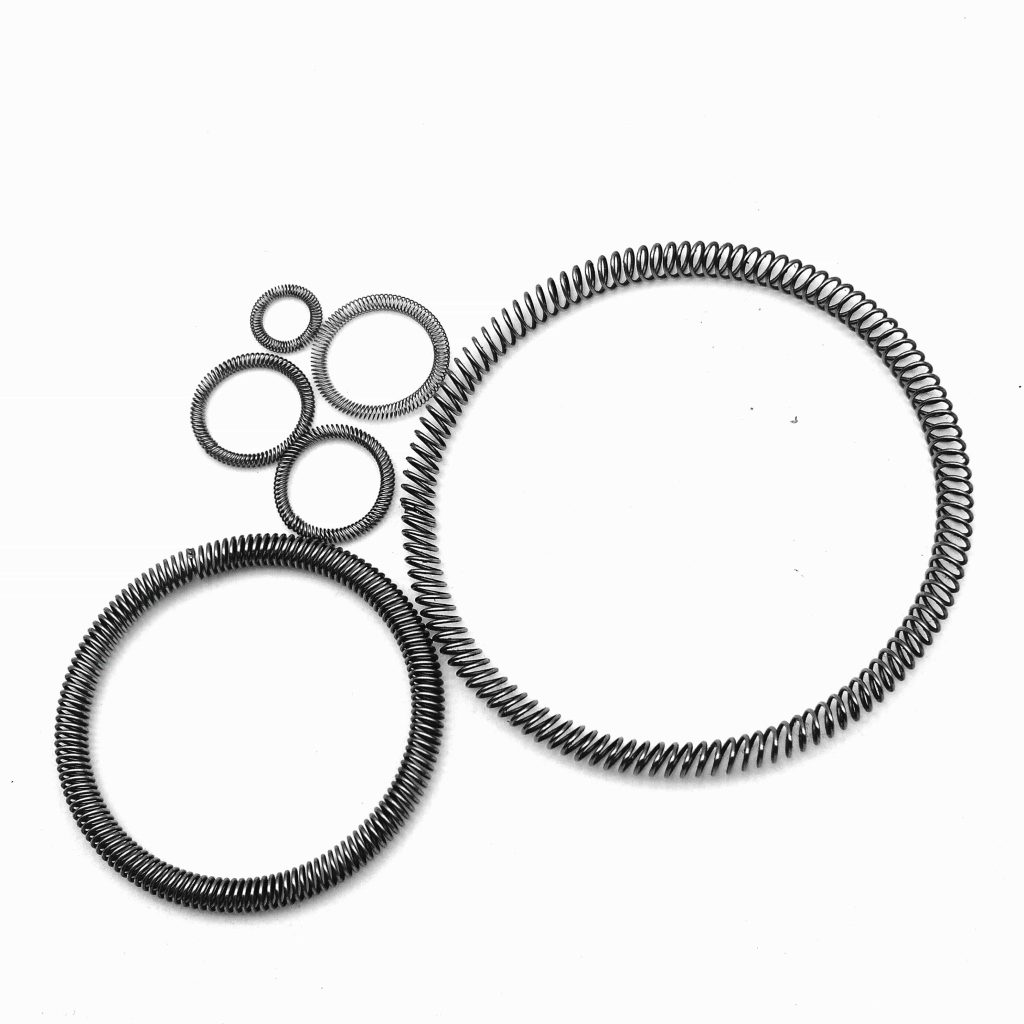

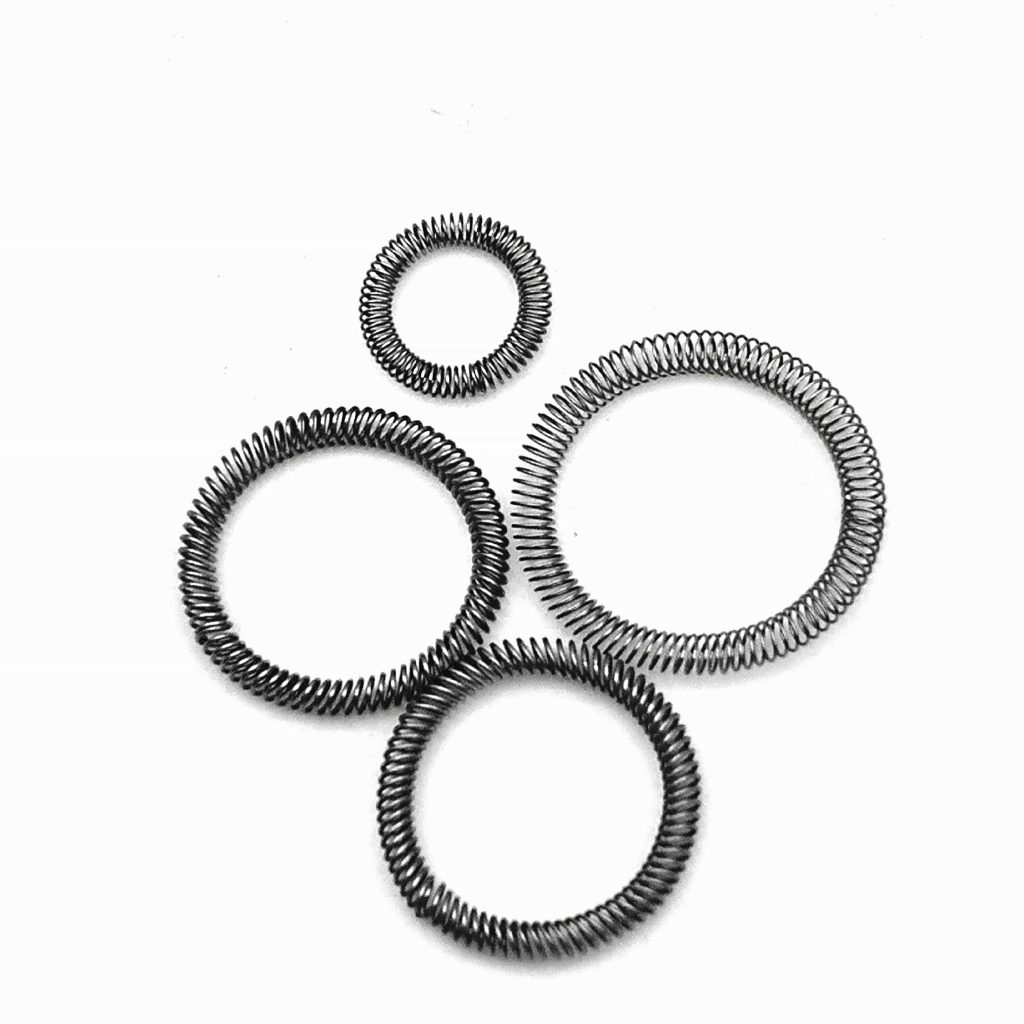

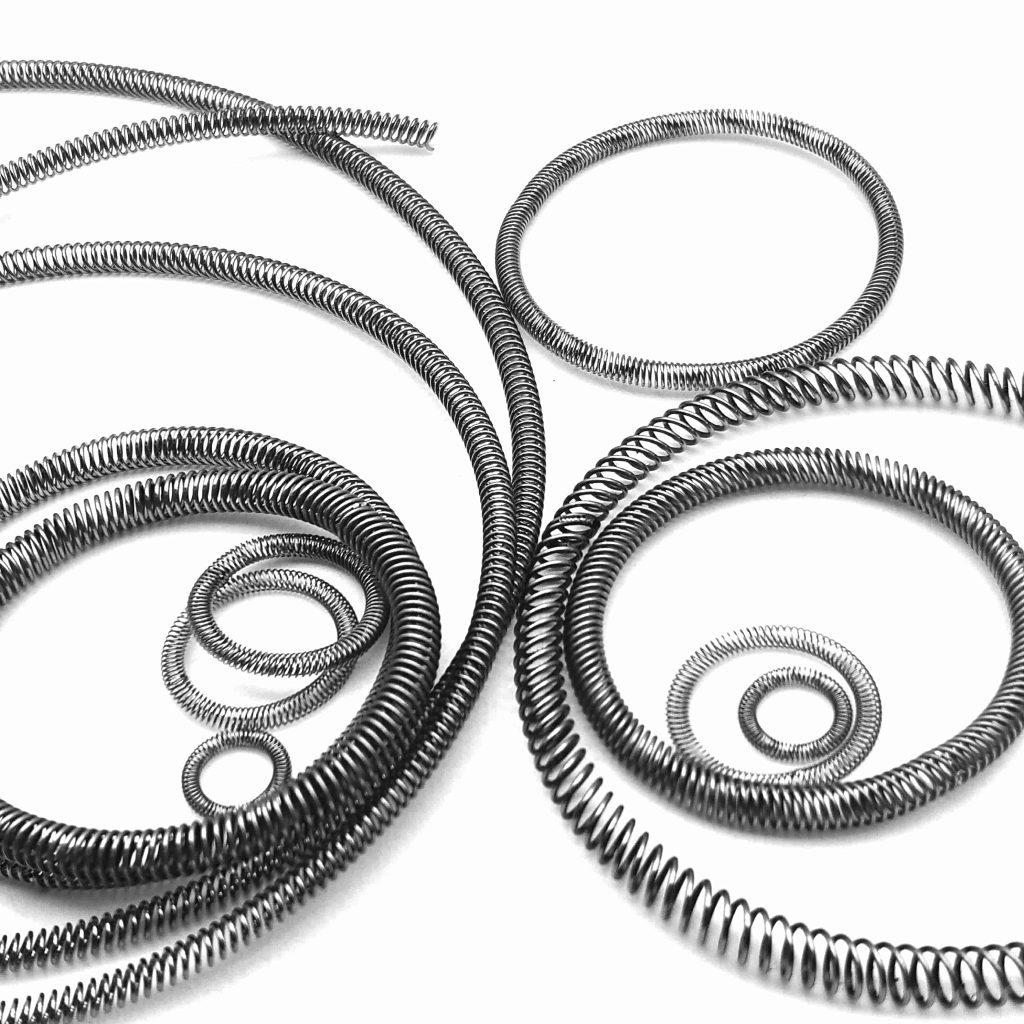

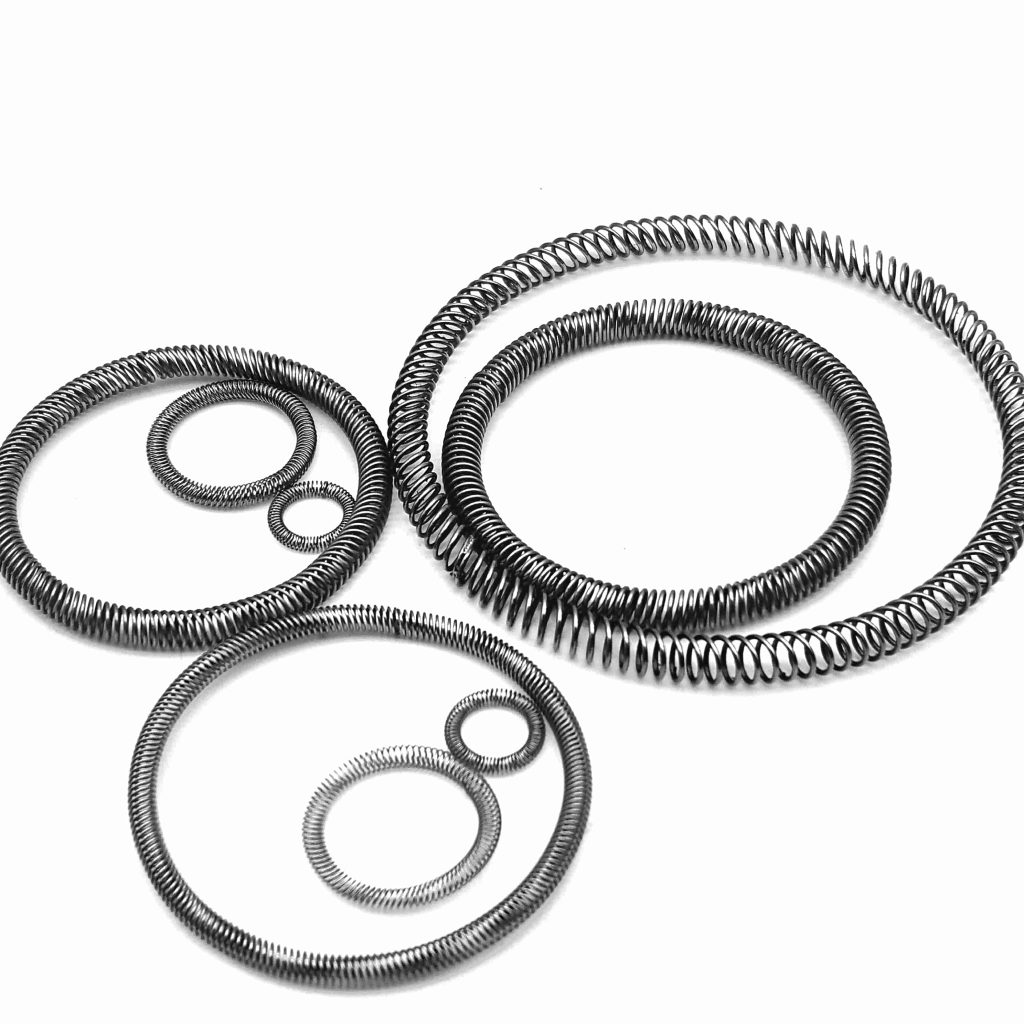

Canted coil springs, also known as slant coil springs, are versatile components engineered for high performance across a broad range of applications. These springs have become indispensable in industries such as aerospace, medical, automotive, and electronics due to their unique mechanical and electrical properties.
Design and Structure
The defining feature of canted coil springs is their unique coil arrangement, which is positioned at an angle (canted) relative to the spring’s axis. This design imparts specific mechanical and electrical characteristics that differentiate them from traditional helical or compression springs.
Key Structural Features:
Canted Orientation: Coils are slanted rather than aligned perpendicularly or parallel to the spring axis.
Precision Engineering: Springs are manufactured with high tolerances to ensure consistency and reliability.
Versatile Configurations: Available in circular, oval, or custom shapes to suit specific groove designs.
Material Choices:
Stainless Steel: Common grades include 301, 304, and 316, chosen for their corrosion resistance and strength.
Beryllium Copper: Provides excellent electrical conductivity and resilience.
Exotic Alloys: In applications requiring extreme temperatures or chemical resistance, materials like Inconel or Hastelloy may be used.
Mechanical Properties
Force-Displacement Characteristics:
Canted coil springs exhibit a near-linear force-displacement curve, offering predictable performance under load. This makes them suitable for dynamic applications where consistent force is critical.
Multi-Directional Compliance:
Unlike traditional springs, canted coil springs provide flexibility and resilience in multiple directions. This feature is advantageous in applications requiring compensation for misalignments or thermal expansion.
Durability:
Engineered from robust materials, these springs can withstand high levels of stress, temperature variations, and corrosive environments, ensuring long operational life.
Electrical Properties
Conductivity:
Canted coil springs are often employed as electrical connectors due to their ability to conduct current efficiently. Their high contact force ensures reliable electrical performance even under vibration or thermal cycling.
EMI/RFI Shielding:
In sensitive electronic systems, canted coil springs serve as effective electromagnetic interference (EMI) and radio frequency interference (RFI) shields. Their continuous contact with mating surfaces creates a secure conductive path, blocking unwanted signals.
Surface Treatments:
To enhance conductivity and corrosion resistance, canted coil springs can be coated with materials such as:
Gold: Superior conductivity and resistance to oxidation.
Nickel: Cost-effective and durable.
Silver: Excellent conductivity for high-frequency applications.
Applications of Canted Coil Springs
1. Sealing Systems:
Canted coil springs are integral to dynamic and static sealing systems. They provide constant force to maintain a tight seal, accommodating variations due to thermal expansion or wear. Examples include:
Hydraulic and pneumatic seals
Gaskets for industrial equipment
2. Electrical Connectors:
These springs ensure robust electrical connections in high-performance applications, such as:
High-voltage switchgear
Circuit breakers
Battery contacts
3. EMI/RFI Shielding:
Canted coil springs are widely used in shielding applications to prevent signal interference in:
Telecommunications equipment
Aerospace electronics
Medical imaging devices
4. Medical Devices:
Their precision and reliability make them suitable for:
The production of canted coil springs involves several precision engineering steps:
Material Selection: Choosing the appropriate material based on application requirements.
Forming: Coiling the wire into the desired canted shape using specialized machinery.
Heat Treatment: Enhancing mechanical properties through controlled heating and cooling.
Surface Finishing: Applying coatings or treatments to improve performance and longevity.
Quality Control:
To ensure consistent performance, manufacturers employ rigorous testing, including:
Dimensional Inspections: Verifying compliance with specified tolerances.
Force Testing: Measuring the spring’s force-displacement characteristics.
Electrical Testing: Assessing conductivity and shielding effectiveness.
Environmental Testing: Evaluating performance under temperature extremes, humidity, and corrosive conditions.
Customization Options
Canted coil springs can be tailored to meet specific application needs. Common customization parameters include:
Material: Selecting materials suitable for unique environmental or performance requirements.
Dimensions: Adjusting the spring’s inner diameter, outer diameter, and free height.
Coating: Applying specialized surface treatments to enhance conductivity, corrosion resistance, or wear resistance.
Shape: Designing springs in non-standard configurations, such as rectangular or elliptical shapes.
Advantages of Canted Coil Springs
Reliability: Consistent force and electrical performance ensure dependable operation.
Versatility: Suitable for a wide range of mechanical and electrical applications.
Durability: Resistant to wear, corrosion, and environmental stresses.
Customization: Adaptable to specific application requirements.
Compact Design: Enables integration into tight spaces without compromising performance.
Limitations and Considerations
While highly versatile, canted coil springs have limitations that must be considered during design and selection:
Cost: High-precision manufacturing and materials can increase costs.
Complexity: Custom designs may require longer lead times.
Load Capacity: Not suitable for applications requiring very high load-bearing capacity.
To mitigate these limitations, it is essential to work closely with manufacturers to optimize design and material selection for the intended application.
Future Trends and Innovations
As technology advances, canted coil springs are evolving to meet new challenges. Emerging trends include:
Advanced Materials:
Development of lightweight and high-strength alloys for aerospace and automotive applications.
Use of bio-compatible materials for medical devices.
Miniaturization:
Manufacturing smaller springs for compact electronic devices.
Enhanced Coatings:
Research into nanocoatings to improve performance and longevity.
Smart Springs:
Integration of sensors into springs for real-time monitoring of force, temperature, or electrical performance.
Conclusion
Canted coil springs are a cornerstone of modern engineering, offering unparalleled versatility, reliability, and performance. Their unique design and properties enable them to excel in demanding applications across diverse industries. As innovation continues, these springs will undoubtedly play a crucial role in shaping the future of technology.
Whether you’re designing high-voltage electrical systems, precision medical devices, or advanced aerospace components, canted coil springs provide a robust solution tailored to your needs. Collaborating with specialized manufacturers ensures optimal performance and longevity, making them a valuable investment for cutting-edge applications.
