Comparison of Cantilever Springs and Helical Springs
Posted by handaspring
Cantilever springs and helical springs are two fundamental types of mechanical springs energized seals and used in various applications to store and release energy. Each type has unique characteristics, advantages, and typical uses, making them suitable for different scenarios. Below is a detailed comparison of cantilever springs and helical springs, including their design, functionality, materials, benefits, and applications.
Shape: A cantilever spring is typically a flat, elongated beam fixed at one end, with the other end free to deflect when a load is applied. The deflection occurs along the length of the spring, with the spring bending in response to the applied force.
Mechanism: Cantilever springs rely on the bending of the beam to store and release energy. When a force is applied to the free end, the beam bends, and the elastic potential energy is stored. The spring returns to its original shape when the force is removed.
2. Materials
Common Materials: Cantilever springs are usually made from high-strength materials that can withstand repeated bending without permanent deformation. Common materials include:
Spring Steel: Carbon or alloy steel with high tensile strength and good fatigue resistance.
Stainless Steel: For applications requiring resistance to corrosion and high temperatures.
Composite Materials: In some advanced applications, composite materials may be used to provide a balance of strength, flexibility, and weight.
3. Benefits
Simple Design: The cantilever spring’s straightforward design allows for ease of manufacturing and integration into various systems.
Cost-Effective: Generally less expensive to produce compared to more complex spring designs.
Compactness: Can be designed to fit into tight spaces, making them suitable for applications where space is limited.
Durability: High-quality materials and proper design ensure long-lasting performance and reliability.
4. Applications
Automotive: Used in vehicle suspensions and seat mechanisms to absorb shocks and vibrations.
Consumer Goods: Applied in devices like clipboards, retractable pens, and various household items.
Industrial Equipment: Found in machinery and tools where space constraints and cost-effectiveness are important.

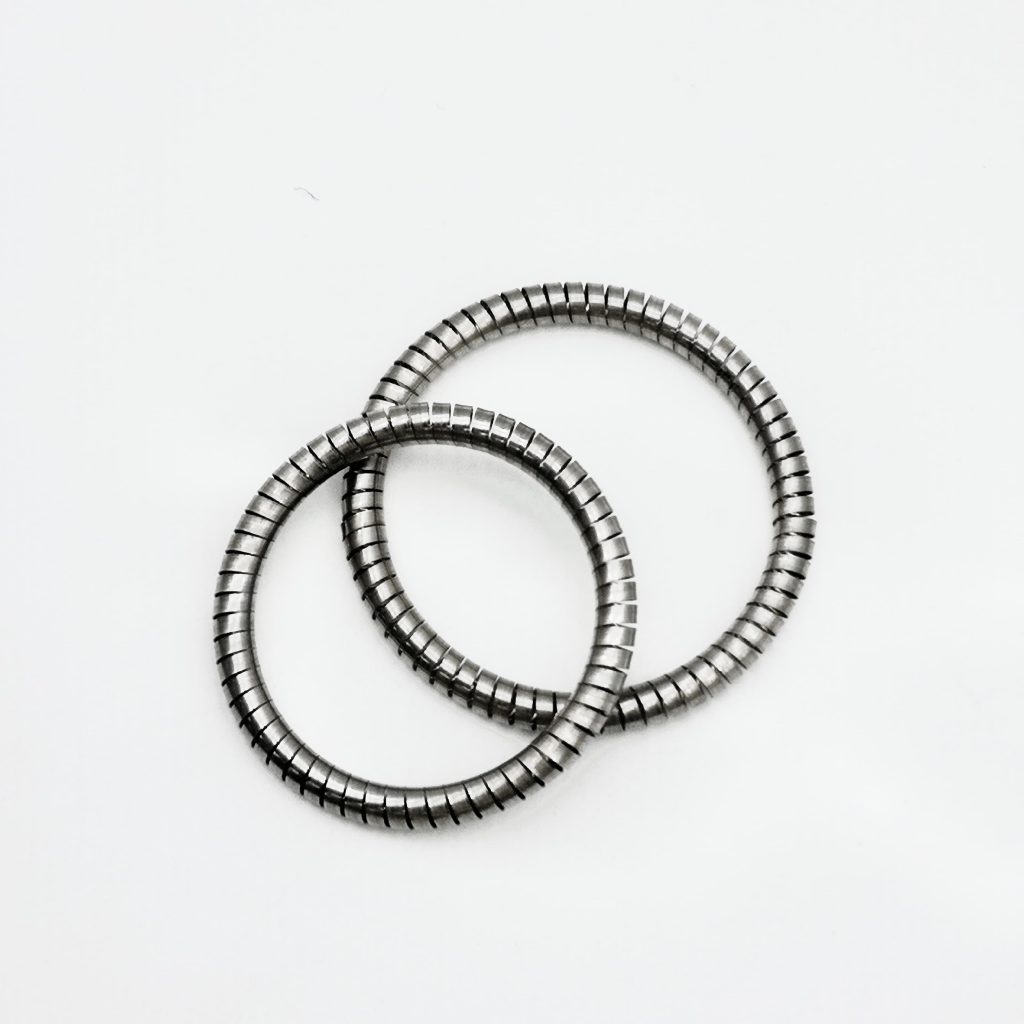

Helical Springs
1. Design and Construction
Shape: A helical spring is a cylindrical coil of wire wound in a spiral shape. The spring can be wound either in compression (compression spring) or tension (extension spring) depending on the application.
Mechanism: Helical springs work by compressing or extending along the axis of the coil. When a force is applied, the coils compress or stretch, storing elastic potential energy. The spring returns to its original shape when the force is removed.
2. Materials
Common Materials: Helical springs are typically made from materials that can endure cyclic loading and provide consistent performance. Common materials include:
Spring Steel: Carbon or alloy steel with excellent fatigue resistance and strength.
Stainless Steel: For applications requiring corrosion resistance and high-temperature stability.
Alloys: Such as chrome-vanadium or chrome-silicon alloys, used for specific performance characteristics.
3. Benefits
Versatility: Helical springs come in various forms, including compression, extension, and torsion springs, making them versatile for many applications.
Load Distribution: The cylindrical shape allows for even distribution of forces along the axis, leading to balanced and predictable performance.
High Strength: Capable of handling significant loads and stresses, making them suitable for heavy-duty applications.
Customizable: Can be engineered to meet specific requirements in terms of size, load capacity, and material properties.
4. Applications
Automotive: Used in vehicle suspensions, shock absorbers, and engine components to absorb vibrations and manage loads.
Aerospace: Found in aircraft landing gear, control systems, and other components where reliability and strength are critical.
Industrial Machinery: Used in equipment and tools for managing loads, absorbing shocks, and providing consistent force.
Consumer Products: Applied in items such as mattresses, office chairs, and various household appliances.
Comparative Analysis
1. Design Complexity
Cantilever Springs: Generally simpler in design, with a single beam fixed at one end. This simplicity can be advantageous in terms of manufacturing and integration.
Helical Springs: More complex in design, involving coiled wire that must be precisely wound to achieve the desired performance characteristics. The complexity allows for versatility but can also increase manufacturing costs.
2. Force Application and Distribution
Cantilever Springs: Force is applied perpendicular to the length of the beam, leading to bending and deflection. The force distribution is concentrated at the free end, which can affect the spring’s performance and lifespan.
Helical Springs: Force is applied along the axis of the coil, with load distribution more evenly spread throughout the spring. This distribution can lead to more consistent performance and a greater ability to handle varying loads.
3. Load Capacity and Performance
Cantilever Springs: Typically suited for lighter loads and applications where bending deflection is acceptable. The load capacity is influenced by the beam’s length, thickness, and material properties.
Helical Springs: Capable of handling a wide range of loads, from light to heavy-duty applications. The load capacity depends on the wire diameter, coil diameter, and number of coils, allowing for customization to meet specific needs.
4. Space and Design Constraints
Cantilever Springs: Can be designed to fit into compact spaces, making them ideal for applications with space constraints. However, their design may limit their ability to handle large forces.
Helical Springs: Can be larger and more cumbersome, but their design allows for handling significant forces and providing consistent performance over a range of applications.
5. Durability and Fatigue Resistance
Cantilever Springs: Durability depends on material choice and design. High-quality materials can ensure long-term performance, but repeated bending may eventually lead to fatigue and failure.
Helical Springs: Typically designed for high fatigue resistance due to the nature of their coiled structure. Proper design and material selection contribute to their longevity and ability to withstand cyclic loading.
Conclusion
Cantilever springs and helical springs each offer distinct advantages and are suited for different types of applications. Cantilever springs, with their simple design and compact form, are ideal for applications where space is limited and cost-effectiveness is important. They are commonly used in automotive, consumer goods, and industrial equipment. On the other hand, helical springs provide versatility, strength, and consistent performance, making them suitable for a wide range of applications, including automotive, aerospace, industrial machinery, and consumer products.

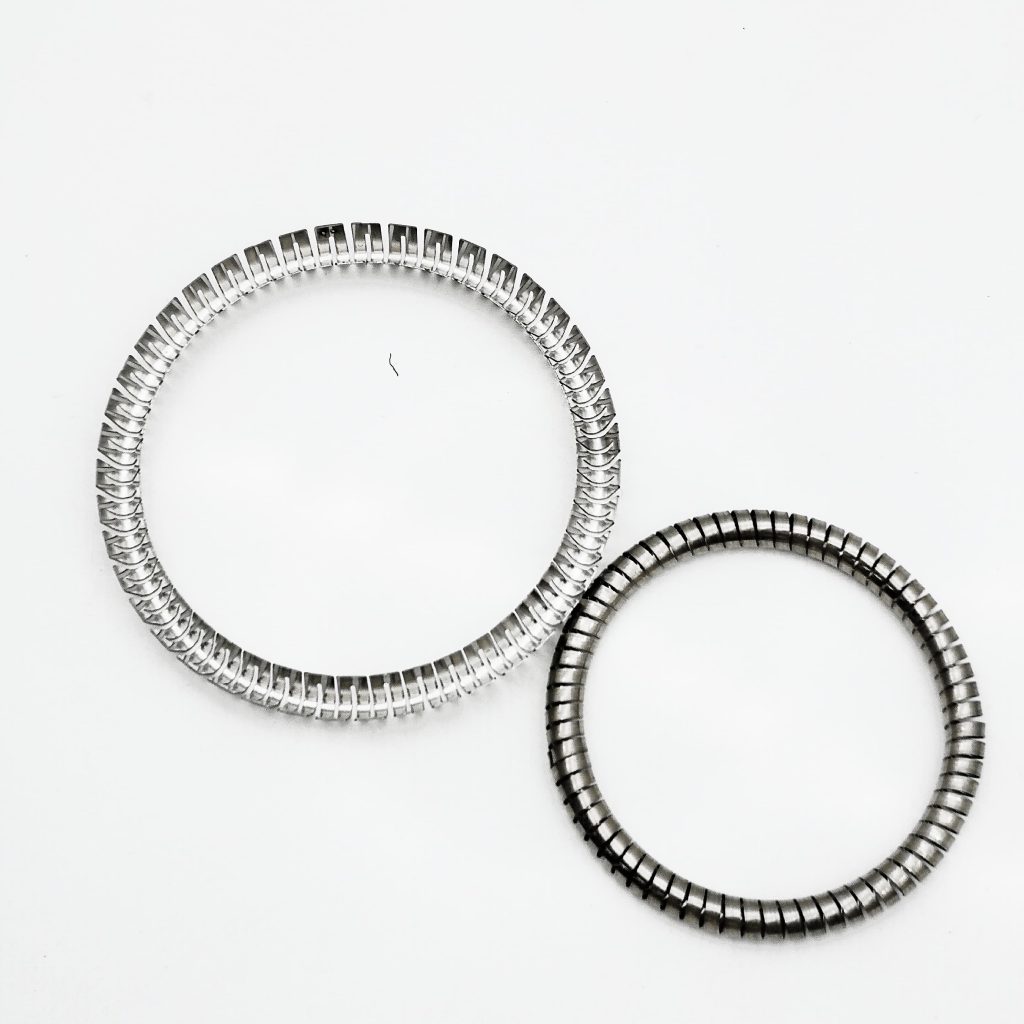

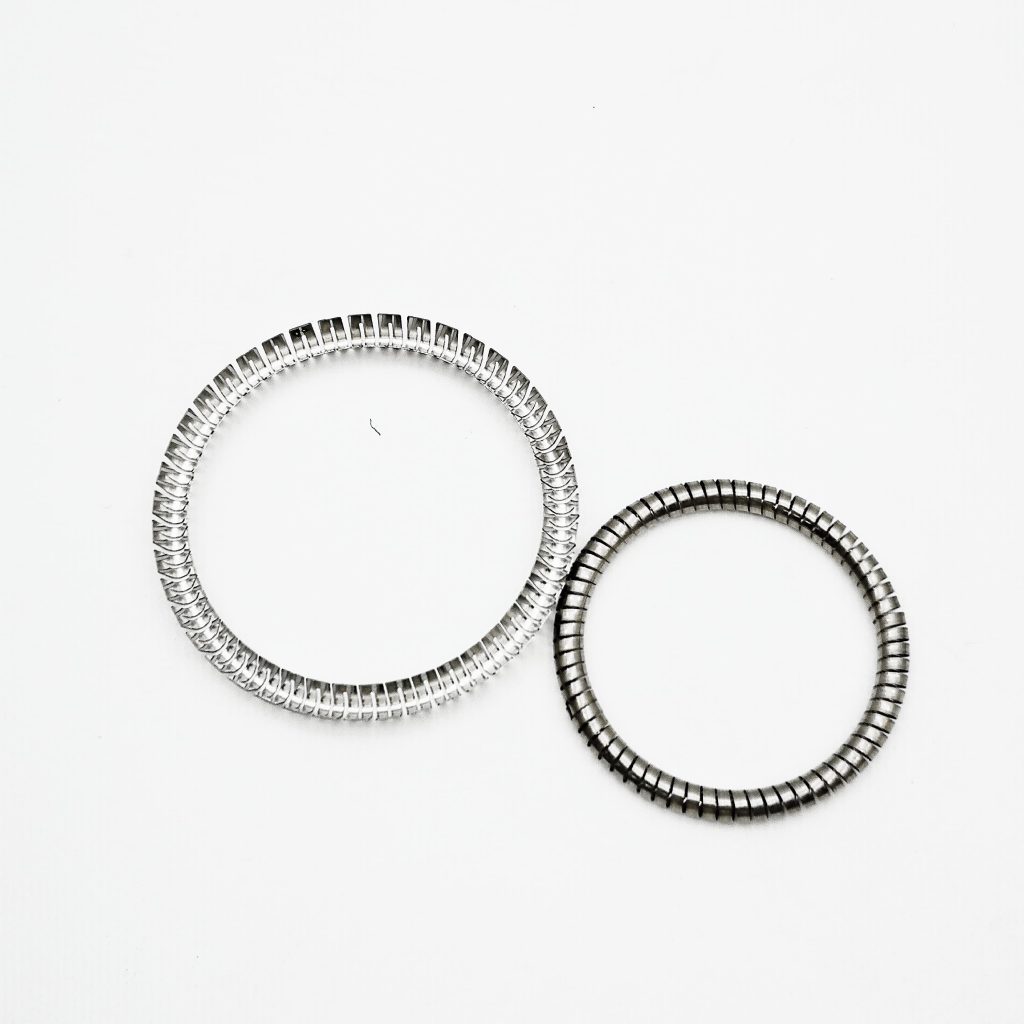

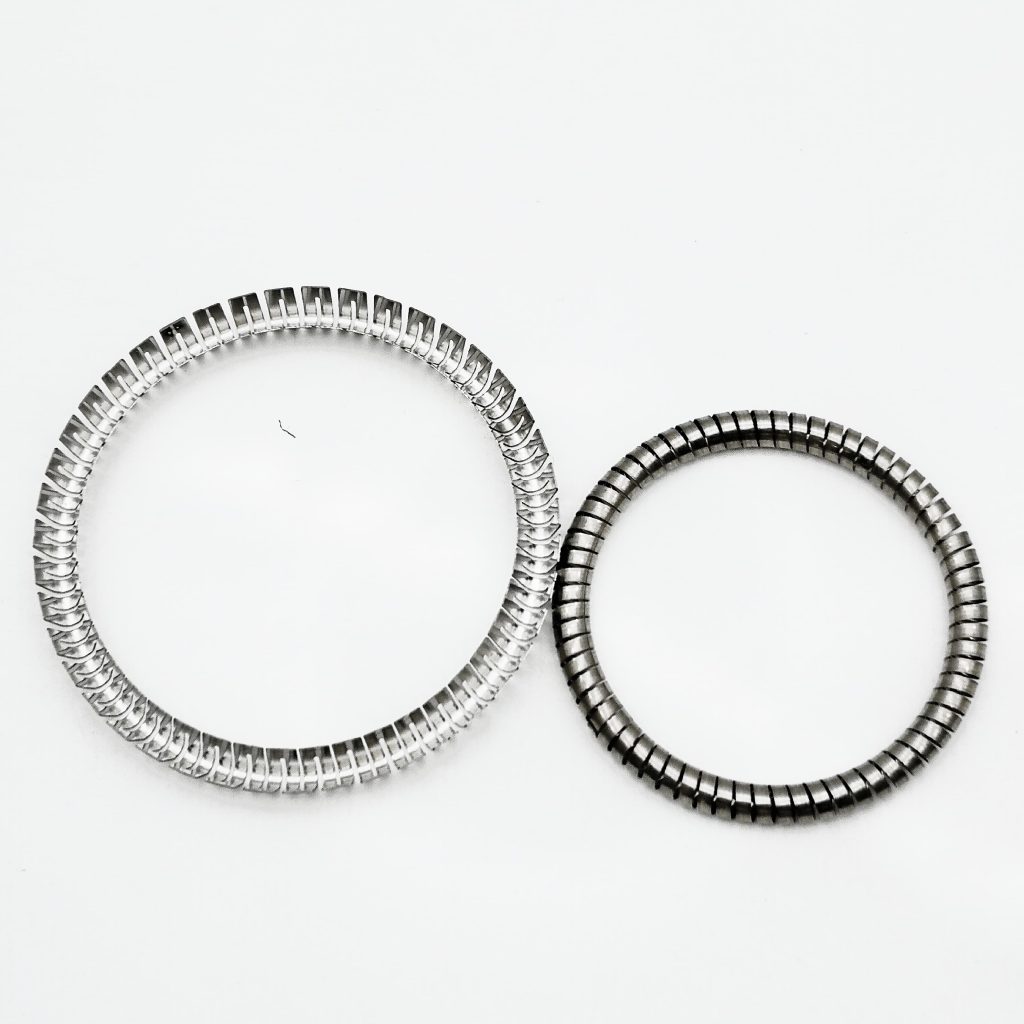

Choosing between cantilever springs and helical springs depends on factors such as the specific application requirements, load capacity, design constraints, and material considerations. Understanding the unique properties and benefits of each type helps in selecting the most appropriate spring for achieving optimal performance and reliability in various mechanical systems.And Zhuoyue Co., Ltd has these two kinds of seal springs.If you need,please contact us right now.
