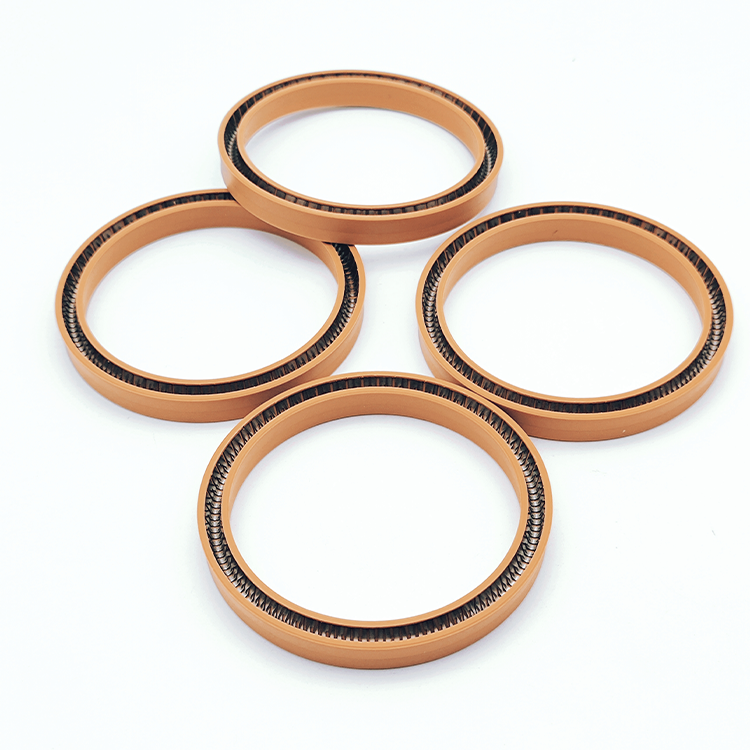

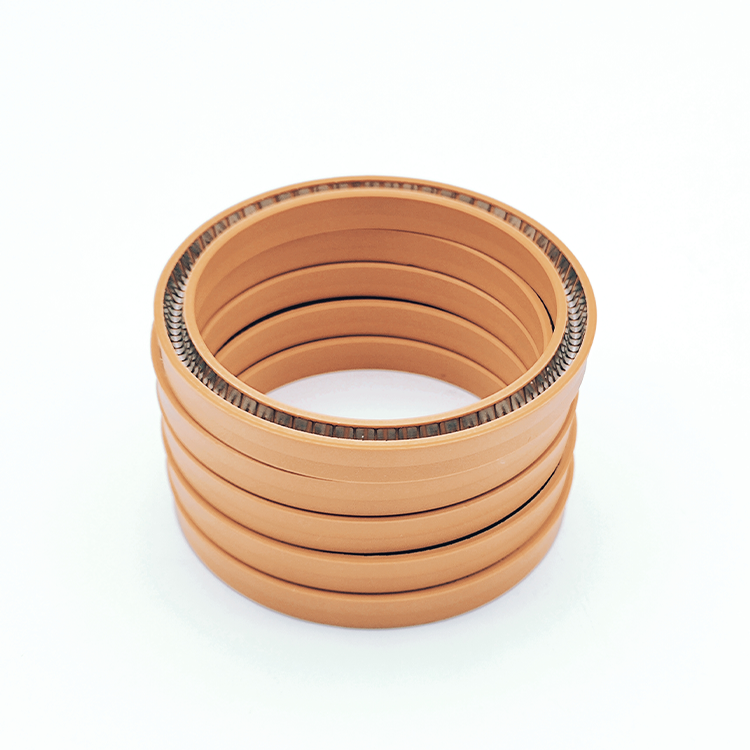

PTFE seals Known for their resistance to corrosion, heat, and mechanical stress, PTFE seals are non-toxic and environmentally friendly. This article will provide a comprehensive guide on the installation methods for PTFE seals, ensuring optimal performance and longevity.
Understanding PTFE Seals
What are PTFE Seals?
PTFE seals are engineered gaskets made primarily from polytetrafluoroethylene(PTFE). This synthetic polymer has outstanding chemical resistance and thermal stability, making it suitable for demanding applications. PTFE seals can be used to encapsulate pressure, preventing fluid leakage or contamination in various industrial settings. They are often utilized in high-temperature and high-pressure environments, contributing to their popularity in critical applications.
Corrosion Resistance: PTFE is resistant to most chemicals, making it ideal for harsh environments.
Thermal Stability: It can withstand extreme temperatures without losing its structural integrity.
Mechanical Properties: PTFE seals maintain their shape and functionality under stress, ensuring reliable sealing performance.
Non-Toxic: As a safe material, PTFE is suitable for food and pharmaceutical applications.
Installation Steps for PTFE Seals
1. Cleaning
Before installing a polytetrafluoroethylene seal, thorough cleaning is crucial to ensure effective sealing. Follow these steps:
Surface Preparation: Whether the seal is new or used, it should be polished to remove dirt and grease, ensuring a smooth surface. Use a fine abrasive pad or cloth for this purpose.
Chemical Cleaning: Clean the seal with hot water and a suitable detergent. Chemicals such as formaldehyde, nitric acid, or sulfuric acid can effectively remove stubborn contaminants. Rinse the seal thoroughly to eliminate any residual cleaning agents.
Drying: Ensure the seal is completely dry before installation. Any moisture can compromise the sealing performance.
2. Installation
Proper installation is vital for the PTFE seal’s effectiveness. Here’s a step-by-step guide:
a. Prepare the Housing
Check Dimensions: Ensure that the housing is compatible with the dimensions of the polytetrafluoroethylene seal. Use the appropriate wire or spacer to secure the outer shell of the seal in the installation position.
Align the Components: Place the inner shell at the correct depth to maintain the integrity of the outer shell.
b. Position the PTFE Seal
Placement: Insert the seal into the housing, ensuring that the sealing lip is positioned correctly against the bottom of the outer shell. This is crucial for achieving a tight fit.
Additional Support: Surround the seal with a rubber or gasket material to eliminate any significant gaps between the seal and the outer housing.
c. Secure the Housing
Tightening: Once the outer and inner shells are aligned, use an electric or manual screwdriver to secure the outer shell in place.
Torque Specifications: Follow strict torque requirements for fastening screws to prevent over-tightening, which could damage the seal.
3. Inspection
After installation, it is important to conduct a thorough inspection to ensure that the seal is functioning properly.
Visual Check: Inspect the seal for any visible damage. If any signs of wear or damage are present, replace the seal immediately.
Integrity Assessment: Ensure that the outer shell is intact and that there are no significant gaps between the seal and housing. The sealing lip must maintain contact without any deviations.
Test Functionality: If possible, test the assembly under operational conditions to verify the effectiveness of the seal.
Conclusion
The installation of PTFE seals is a detailed process that requires attention to cleanliness, proper alignment, and secure fastening. By following the outlined steps, users can ensure that the seal provides reliable performance, preventing leaks and maintaining the integrity of the system.
In summary, PTFE(polytetrafluoroethylene) seals are indispensable in various industries due to their unique properties and benefits. Proper installation and maintenance of these seals are essential to maximize their effectiveness and lifespan. Always prioritize cleanliness during the installation process and conduct regular inspections to ensure optimal performance.
