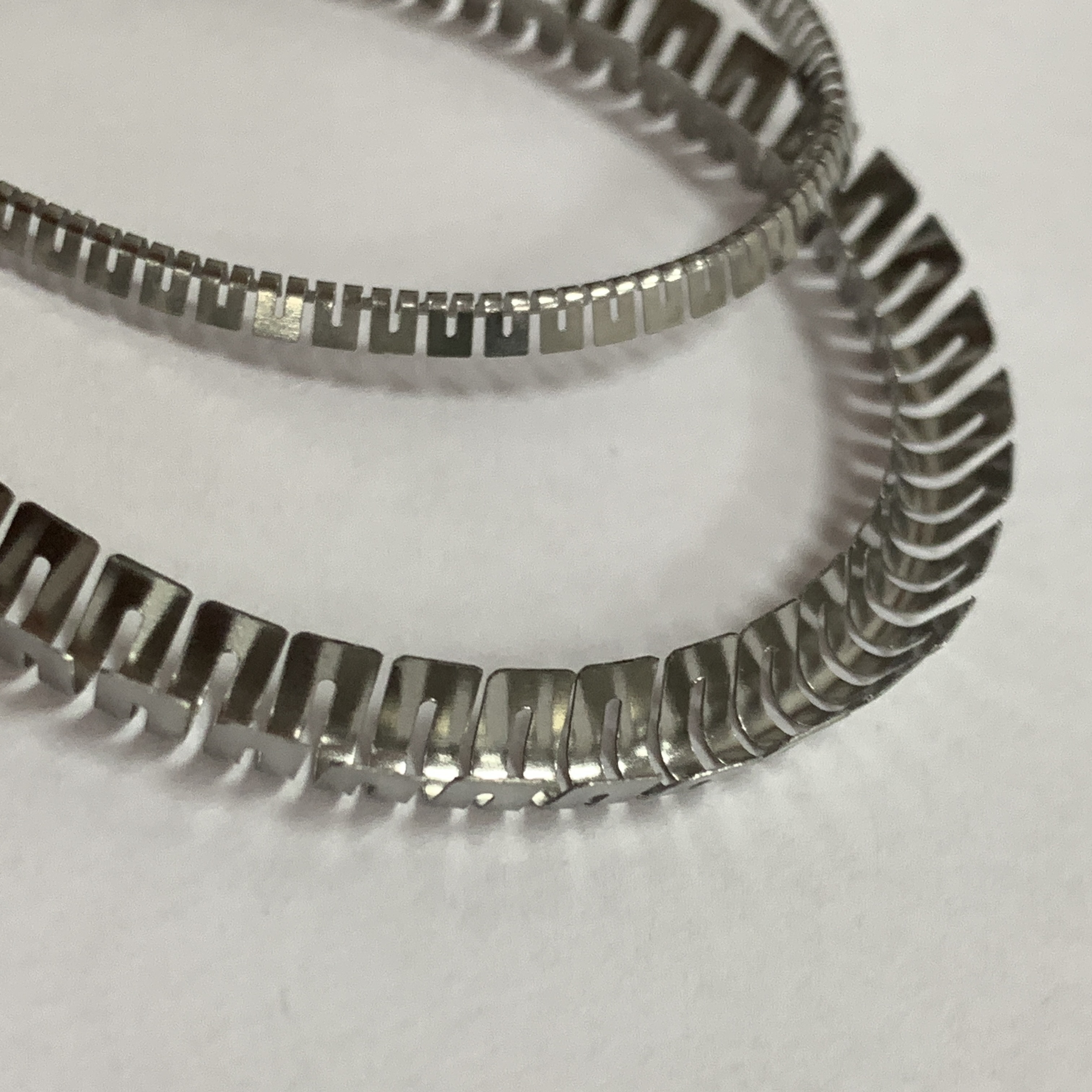

“V Springs” refers to a specific type of spring design known as a V-spring or V-shaped springs. V-springs are a type of compression spring, but their unique design sets them apart. Instead of the traditional cylindrical coil shape found in most compression springs, they are shaped like the letter “V” when viewed from the side.
Key characteristics of V springs include:
V-Shaped Design: The spring’s wire is wound in a V-shaped pattern. This design provides several advantages, such as increased load capacity, higher energy storage, and improved deflection.
High Load Capacity: V-springs can support higher loads compared to conventional compression springs of similar size due to their unique geometry.
Longer Deflection Range: The V-shape allows for longer deflection ranges compared to traditional coil springs, making them suitable for applications where a longer stroke is needed.
Customizability: They can be customized to suit specific application requirements, including load profiles, stroke lengths, and materials.
Vibration Damping: The design of them allows them to provide effective vibration damping in addition to their load-bearing capacity.
Compact Design: They are often more compact than traditional coil springs with equivalent load-bearing capabilities, making them useful in space-constrained applications.
V-springs find applications in various industries, including automotive, aerospace, electronics, and industrial equipment. They are used in situations where a compact, high-load spring solution is required, and they have to provide predictable and consistent force across a wide deflection range. These springs can be made from various materials, such as carbon steel, stainless steel, or other alloys, depending on the specific requirements of the application.
