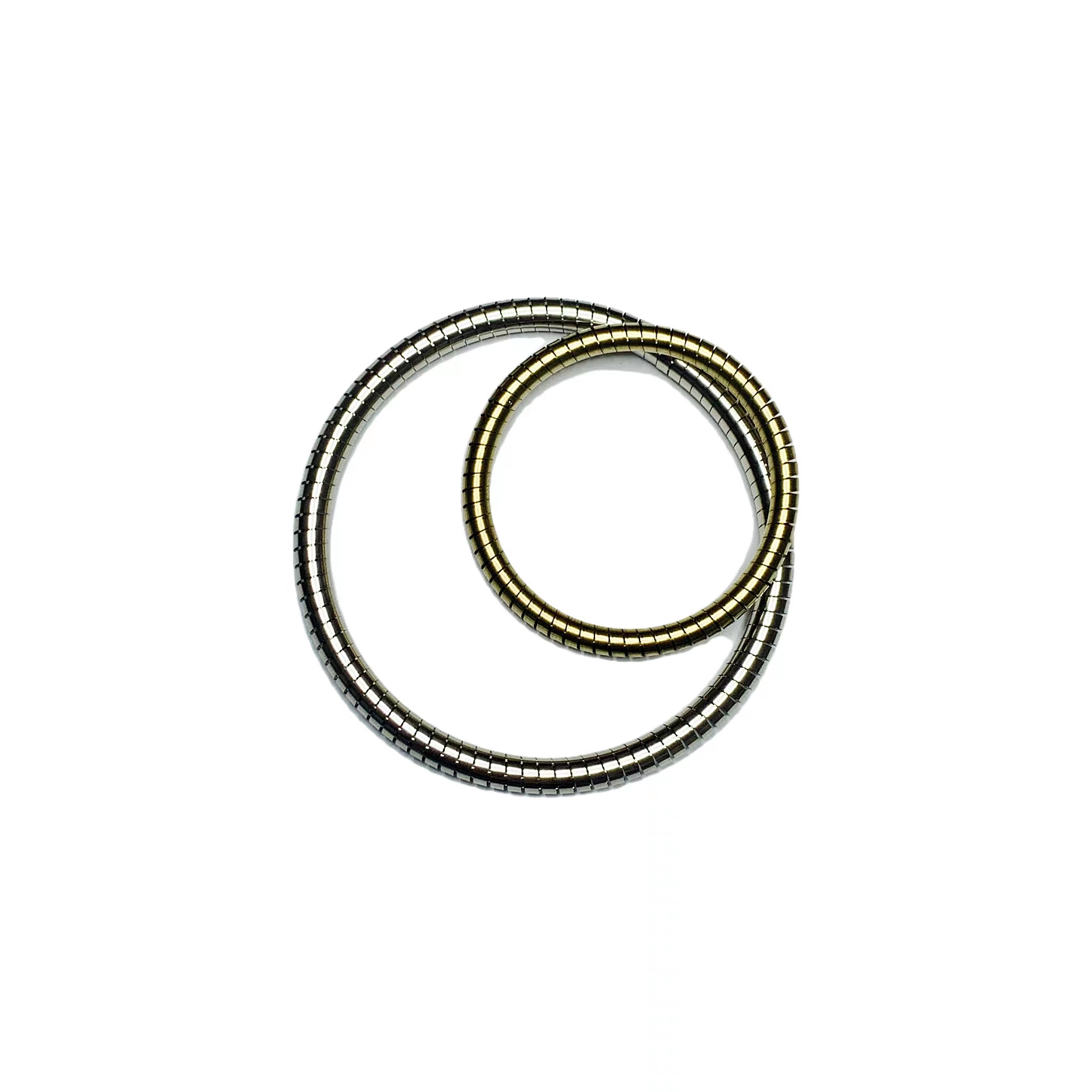

The properties of helical springs, also known as a coil spring or spiral spring, are essential for understanding its behavior and application in various mechanical systems.
Spring Constant (k): The spring constant, often denoted as “k,” represents the stiffness or rigidity of the spring. It indicates the amount of force required to compress or extend the spring by a certain distance. It is typically measured in units of force per unit of displacement (e.g., N/m or lb/in).
Natural Length (L0): The natural length of the spring is the length of the spring when no external forces are applied. It serves as a reference point for measuring the spring’s deformation.
Free Length (Lf): The free length of the spring is its length when no external forces are acting on it. It can be different from the natural length if the spring is preloaded.
Coil Diameter (D): The coil diameter is the diameter of the helical coils. It is an essential dimension in spring design.
Wire Diameter (d): The wire diameter is the diameter of the wire used to form the coils. It affects the strength and flexibility of the spring.
Pitch (P): The pitch is the distance between adjacent coils. It can be constant or variable, depending on the spring design.
Number of Active Coils (n): The number of active coils refers to the coils that contribute to the spring’s deflection and resilience.
Solid Length (Ls): The solid length of the spring is the length when all coils are in contact and the spring is fully compressed.
Maximum Deflection (Δx_max): This property represents the maximum distance the spring can be compressed or extended from its free length without causing permanent deformation.
Load or Force Capacity (F): The load or force capacity of the spring is the maximum force it can withstand without exceeding its elastic limit.
Material Properties: The material from which the spring is made (usually steel or other alloys) influences its properties, including tensile strength, yield strength, and fatigue resistance.
End Types: The type of ends on the spring, such as closed and ground ends, open ends, or various attachment options, can impact its performance in specific applications.
These properties are crucial for designing and selecting the right helical springs for a particular application. The behavior of the spring, such as its response to loads and deflection, can be predicted and controlled based on these properties
