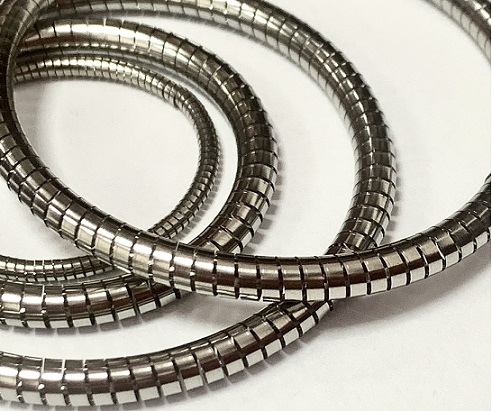

Helical springs is a type of spring design, usually made of elastic material and in a spiral shape. This design allows the spring to undergo elastic deformation when subjected to external pressure or tension, and to return to its original state after releasing the pressure. Spiral springs are widely used in mechanical, automotive, electronic and other fields for the purpose of absorbing vibrations, storing energy, and maintaining force balance. Its design can be customized according to specific application requirements, including different sizes, materials, and shapes.
Measuring helical springs involves determining several key parameters that define its characteristics. Here are the steps to measure a helical spring:
Wire Diameter (d): Measure the diameter of the wire used to form the spring. This is typically done using calipers.
Outer Diameter (D): Measure the outer diameter of the spring, including the coils. Use calipers to measure across the widest points.
Inner Diameter (d’): Measure the inner diameter of the spring, excluding the coils. This is the diameter of the space inside the spring. Again, use calipers for accuracy.
Free Length (L0): Measure the length of the spring when it is not under any load. This is the length of the spring when it is not compressed or extended.
Active Coils (n): Count the number of active coils. Active coils are those that contribute to the spring’s flexibility and movement under load.
Pitch (P): Measure the distance from one coil to the corresponding point on the next coil. This is known as the pitch of the spring.
Total Coils (N): Count all the coils, including the active coils and the end coils.
Spring Rate (k): The spring rate, or stiffness, can be calculated using Hooke’s Law. It’s the force required to compress or extend the spring by a certain distance.
Remember, when measuring, it’s crucial to be as accurate as possible. Use precision tools like calipers or micrometers for accurate readings. If you need highly accurate measurements for critical applications, consider consulting with a professional or using specialized measurement equipment.
