Spring-energized seals are critical components in applications ranging from semiconductor manufacturing and aerospace hydraulics to medical devices and oil and gas valves. At the core of every spring-energized seal lies a metal spring that provides the necessary force to keep the polymer sealing lip in contact with the mating surface. Two of the most common spring types used in these seals are the U spring (also known as cantilever U spring or meander spring) and the V spring (also called cantilever V spring). While they may appear similar at first glance, their design differences lead to distinct performance characteristics, making each better suited for specific applications.
This comprehensive guide compares U springs and V springs across key parameters including load-deflection behavior, deflection range, suitability for dynamic vs. static applications, high-temperature performance, and cost-effectiveness. By the end, you will have a clear framework to select the optimal spring for your sealing challenge.
A U spring, also referred to as a cantilever U spring or meander spring, is manufactured from a thin metal strip formed into a repeating U-shaped pattern. The individual U-shaped segments act as cantilever beams that deflect when compressed. U springs are typically used as energizers inside polymer seal jackets, providing a distributed force along the sealing lip.
Key characteristics of U springs:

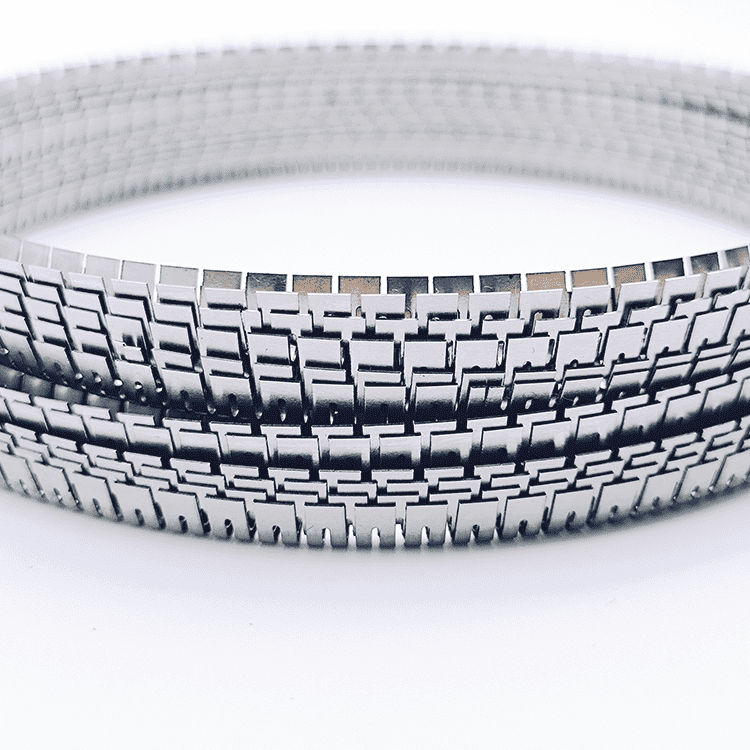

A V spring, also known as a cantilever V spring or punch finger spring, is formed from a metal strip into a repeating V-shaped pattern. The V-shaped fingers are typically arranged at alternating angles, creating a spring that provides a concentrated point-load at the sealing lip. V springs are widely used in both static and slow-to-moderate dynamic sealing applications.
Key characteristics of V springs:
| Feature | U Spring | V Spring |
|---|---|---|
| Shape | U-shaped repeating pattern | V-shaped repeating pattern |
| Contact pattern | Distributed (multiple points) | Concentrated point-load |
| Load distribution | More even along the seal lip | Focused at the leading edge |
| Sealing effectiveness | Good for general sealing | Excellent for viscous media and scraping action |
Implication for sealing: The V spring’s concentrated point-load provides superior sealing against thick, sticky media (such as adhesives or epoxy resins) because it creates a high-pressure line that actively scrapes the mating surface. The U spring’s more distributed load is better for general sealing where even pressure is desired without aggressive scraping.
One of the most significant differences between U and V springs is their usable deflection range.
| Parameter | U Spring | V Spring |
|---|---|---|
| Deflection range | Moderate (typically 0.5-1.5 mm) | Wide (up to 2-3 mm or more) |
| Tolerance compensation | Good | Excellent |
| Suitability for large tolerances | Limited | Ideal |
The V spring offers a wider deflection range, making it highly suitable for applications with large dimensional tolerances, significant thermal expansion, or potential hardware misalignment. The U spring, with its moderate deflection range, is better for applications where the gland dimensions are well-controlled and deflection requirements are minimal.
Both U and V springs exhibit linear load-deflection curves (unlike canted coil springs which have a flat curve). However, their spring rates differ.
| Parameter | U Spring | V Spring |
|---|---|---|
| Load curve shape | Linear | Linear |
| Spring rate | Moderate to high | Low to moderate |
| Force consistency | Force increases with compression | Force increases with compression, but wider usable range |
Because V springs have a lower spring rate, they can accommodate a wider range of compression without excessive force variation. This makes them more forgiving of installation tolerances. U springs, with a higher spring rate, provide more predictable force at a given compression but require more precise gland design.
| Application Type | U Spring Suitability | V Spring Suitability |
|---|---|---|
| Static (face seal, flange) | Excellent | Excellent |
| Slow reciprocating | Good | Excellent |
| Moderate reciprocating | Moderate | Good |
| High-speed reciprocating | Limited | Limited (use canted coil) |
| Rotary motion | Poor | Poor (canted coil recommended) |
Both U and V springs are primarily designed for static and slow-to-moderate dynamic applications. For high-speed reciprocating or rotary motion, a canted coil spring with its near-constant force is typically a better choice.
The V spring’s wider deflection range gives it an advantage in reciprocating applications where shaft movement or thermal cycling causes varying compression.
| Parameter | U Spring | V Spring |
|---|---|---|
| Maximum temperature (standard stainless) | ~250°C | ~250°C |
| Maximum temperature (superalloys) | ~400°C | ~400°C |
| Resistance to embedding in PTFE at high temp | Moderate | Excellent |
At elevated temperatures (above 450°F/232°C), PTFE seal jackets soften. Canted coil springs may begin to embed into the soft PTFE, reducing energizing force. V springs, with their larger, flat footprint, resist embedding much better. U springs fall between the two. For applications above 260°C, V springs are generally preferred.
Both spring types are available in a wide range of materials:
| Material | U Spring | V Spring | Typical Applications |
|---|---|---|---|
| 301 Stainless Steel | Yes | Yes | General industrial |
| 302 Stainless Steel | Yes | Yes | Standard springs |
| 304 Stainless Steel | Yes | Yes | Food, pharmaceutical |
| 316 Stainless Steel | Yes | Yes | Marine, chemical |
| 17-7PH | Yes | Yes | High strength, aerospace |
| Inconel X-750 | Yes | Yes | High temperature |
| Elgiloy | Yes | Yes | Medical, high fatigue |
| Hastelloy C-276 | Yes | Yes | Extreme corrosion |
| Parameter | U Spring | V Spring |
|---|---|---|
| Manufacturing complexity | Moderate | Moderate |
| Tooling cost | Moderate | Moderate |
| Per-unit cost (high volume) | Lower | Slightly higher |
| Availability | Widely available | Widely available |
| Customization ease | Good | Excellent |
V springs are often slightly more expensive to produce due to the alternating finger orientation, but the difference is usually small. For high-volume applications, both are cost-effective.
Use the following decision framework to select the optimal spring for your sealing application.
| Condition | Reason |
|---|---|
| Deflection requirements are modest and well-controlled | U spring’s moderate range is sufficient |
| Even load distribution along the seal lip is desired | U spring provides more distributed contact |
| The sealed media is clean (not viscous or abrasive) | No need for aggressive scraping action |
| Gland tolerances are tight and consistent | U spring is less forgiving of large variations |
| Cost is a primary driver | U spring is slightly more cost-effective |
| Static or low-cycle dynamic applications | U spring performs well in these conditions |
| Condition | Reason |
|---|---|
| Wide deflection range is required to compensate for tolerances or thermal expansion | V spring’s wide range excels here |
| Sealing viscous or sticky media (adhesives, epoxy, grease) | Point-load provides effective scraping |
| High temperatures (>250°C) are expected | V spring resists embedding in soft PTFE |
| Gland dimensions have significant variability | V spring accommodates variations better |
| The application involves reciprocating motion with moderate speed | V spring’s flexibility handles movement |
| Stacked springs are needed for increased load | V springs stack easily |
Requirements: Static seal, moderate temperature (150°C), clean dry air, tight tolerances.
Recommendation: U Spring – Static application with clean media and well-controlled gland dimensions makes U spring a cost-effective choice.
Requirements: Reciprocating shaft seal, temperature up to 200°C, viscous polymer media, variable gland dimensions due to thermal cycling.
Recommendation: V Spring – Wide deflection range accommodates thermal expansion, point-load scrapes viscous media effectively, high-temperature materials available.
Requirements: Reciprocating motion, wide temperature range (-50°C to 150°C), high reliability, tight tolerances.
Recommendation: V Spring – Wide deflection range handles thermal contraction/expansion, excellent reliability, available in aerospace-grade materials (Inconel, Elgiloy).
Requirements: Static flange seal, clean-in-place (CIP) cycles, FDA-compliant materials, moderate temperature (100°C).
Recommendation: Either U or V Spring – Both work well. U spring may be preferred for lower cost; V spring if deflection range is a concern.
Neither the U spring nor the V spring is universally superior. The best choice depends entirely on your specific sealing requirements.
Summarize:
For the majority of industrial sealing applications, the V spring is more versatile due to its wider deflection range and excellent performance with viscous media. However, for well-controlled, clean environments with static seals, the U spring provides reliable performance at a lower cost.
Still unsure? The best approach is to prototype both spring types in your actual seal assembly and test under operating conditions. Many spring manufacturers offer sample programs that allow you to evaluate performance before committing to production volumes.
Need assistance selecting the right spring for your sealing application? Contact our engineering team with your operating parameters and gland dimensions for a tailored recommendation.
