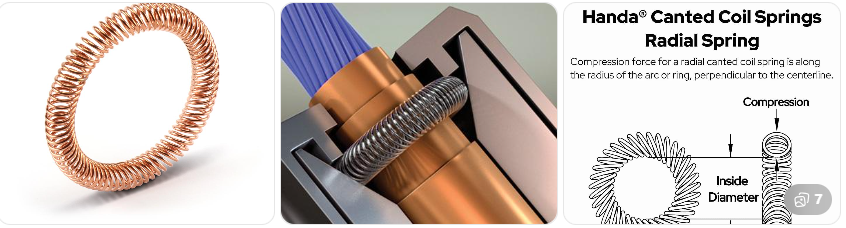

A slant coil spring is a specially engineered helical spring in which each coil is intentionally tilted at an angle rather than positioned vertically like a traditional compression spring.
This angled geometry creates unique mechanical and electrical properties, including:
Slant coil springs are also commonly referred to as:
Unlike standard springs, the coils are “slanted” or “canted” relative to the spring centerline.
This design allows the spring to deform elastically while maintaining stable contact pressure.
When compressed, the angled coils flex and rotate slightly instead of compressing directly downward like traditional springs.
This creates:
One of the most important engineering advantages of slant coil springs is their unique load-deflection behavior.
Traditional compression springs follow Hooke’s Law:
F=kx
k
F=−kx
This means force increases proportionally as compression increases.
However, slant coil springs behave differently.

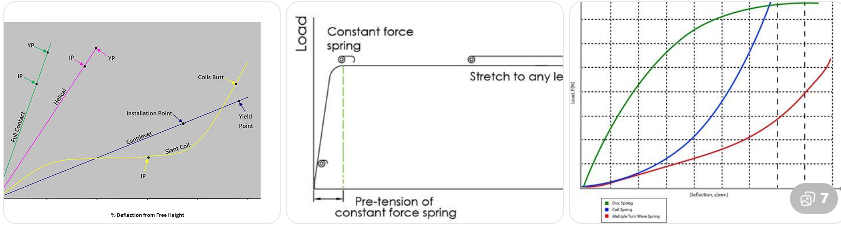

They provide a relatively flat force curve over a large deflection range, which means:
| Feature | Performance Benefit |
|---|---|
| Constant force behavior | Stable mechanical performance |
| Multiple contact points | Low electrical resistance |
| Compact design | Fits miniature systems |
| High elasticity | Long service life |
| Low insertion force | Reduced wear |
| Excellent conductivity | Ideal for EMI shielding |
| Corrosion resistance | Reliable in harsh environments |
Material selection depends on operating conditions such as temperature, corrosion exposure, and conductivity requirements.
| Material | Main Advantage |
|---|---|
| Stainless Steel | Corrosion resistance |
| Elgiloy | Excellent fatigue resistance |
| Beryllium Copper | High conductivity |
| Inconel | High-temperature performance |
| MP35N | Aerospace-grade durability |
Designed for:
These prioritize conductivity and stable contact force.
Used in:
These springs help prevent electromagnetic leakage.
Installed inside sealing systems to maintain sealing pressure under:
Common in semiconductor and aerospace industries.
Slant coil springs are widely used in aerospace because they offer:
Applications include:
Medical equipment requires miniature, reliable components.
Slant coil springs are commonly used in:
because they provide stable force in compact spaces.
Electric vehicles require reliable high-cycle electrical contacts.
Slant coil springs improve:
while reducing insertion wear.
Semiconductor manufacturing environments demand:
Slant coil springs are ideal for vacuum systems and precision connectors.
Electromagnetic interference is a major problem in modern electronics.
Slant coil springs provide:
| Industry | Application |
|---|---|
| Aerospace | Avionics shielding |
| Medical | MRI equipment |
| Defense | Radar systems |
| Telecom | RF connectors |
| Electronics | Shielded enclosures |
| Parameter | Slant Coil Spring | Compression Spring |
|---|---|---|
| Force Curve | Nearly constant | Linear increasing |
| Electrical Conductivity | Excellent | Limited |
| EMI Shielding | Excellent | Poor |
| Insertion Force | Low | Higher |
| Contact Stability | Excellent | Moderate |
| Typical Use | Connectors & seals | Mechanical loading |
When selecting a slant coil spring, engineers should evaluate:
Affects force and durability.
Influences spring flexibility and contact pressure.
Determines corrosion resistance and conductivity.
Defines working performance limits.
Temperature, vibration, chemicals, and humidity all matter.
An aerospace electronics manufacturer experienced connector failures caused by:
The original design used traditional compression springs.
Engineers replaced the compression springs with slant coil springs.
| Performance Metric | Before | After |
|---|---|---|
| Mating Cycles | 15,000 | 120,000+ |
| Contact Resistance | Unstable | Stable |
| EMI Leakage | Significant | Minimal |
| Insertion Force | High | Low |
The redesigned system achieved significantly higher reliability and reduced maintenance costs.
Although highly effective, slant coil springs also present challenges:
| Challenge | Solution |
|---|---|
| Higher manufacturing cost | Optimize design for lifecycle savings |
| Complex installation | Use precision grooves |
| Material selection difficulty | Match alloy to environment |
| Over-compression risk | Proper deflection analysis |
Demand for slant coil springs continues growing due to trends such as:
As devices become more compact and electrically sensitive, slant coil spring technology is becoming increasingly important.
A slant coil spring is a highly specialized spring technology designed for applications requiring:
Unlike traditional compression springs, slant coil springs provide nearly constant force and multiple conductive contact points, making them ideal for connectors, sealing systems, aerospace electronics, medical devices, and semiconductor equipment.
For engineers seeking reliable performance in demanding industrial environments, slant coil springs offer significant advantages in durability, conductivity, and mechanical efficiency.
