Cantilever V springs play a critical role in a variety of industrial sealing applications. Their unique design and functionality make them suitable for high-performance environments where reliable sealing is essential. Below, we will explore the key characteristics, functions, applications, and materials used for cantilever V springs.

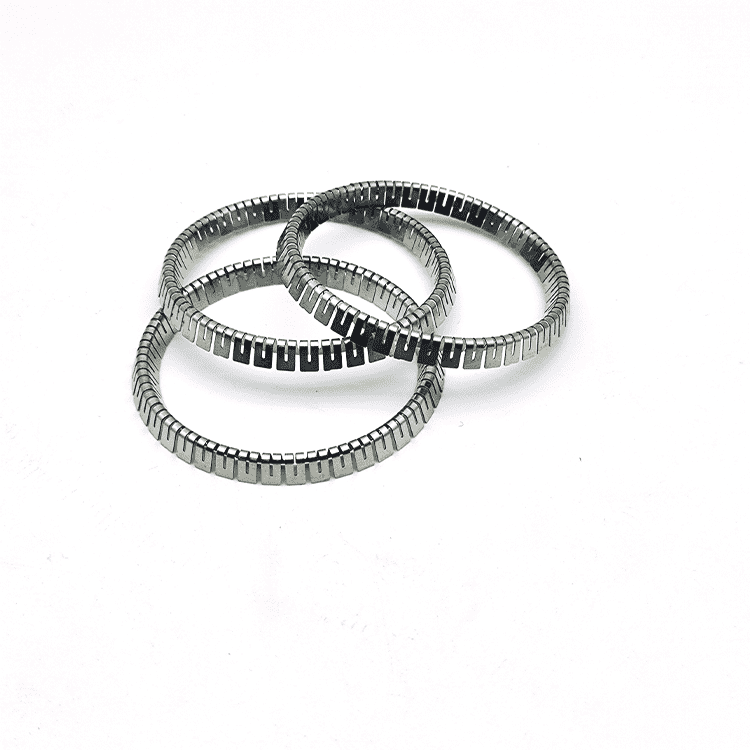

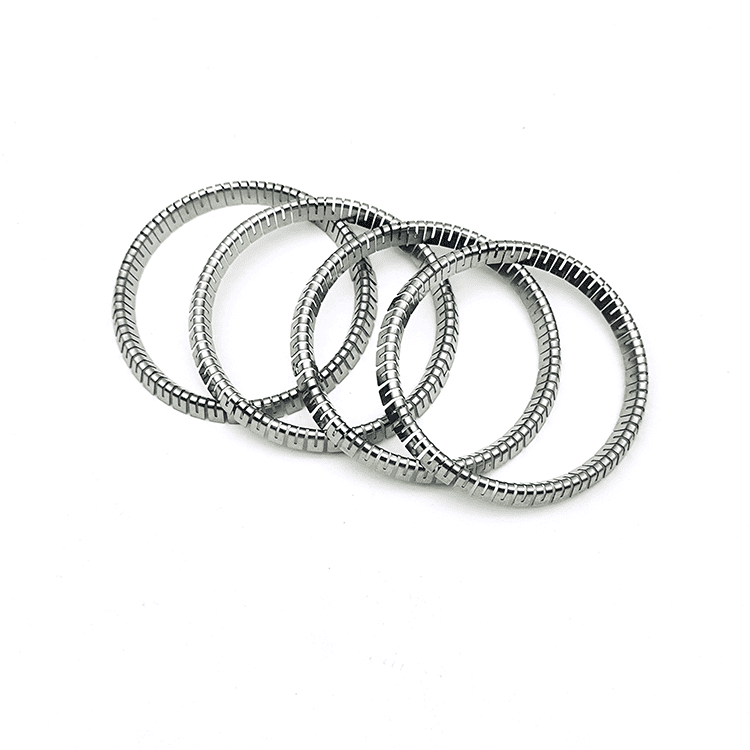

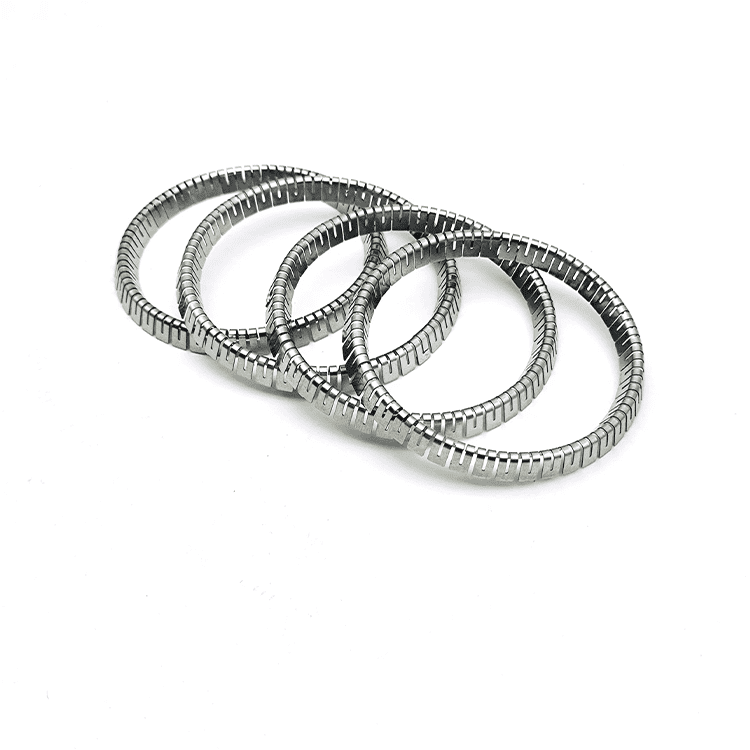

The cantilever V spring features a distinct V shape, typically installed within a polytetrafluoroethylene (PTFE) sealing ring. This design allows the spring to exert significant pressure, concentrating the load at the leading edge of the sealing lip. As a result, it enhances the reliability of the sealing effect.
Cantilever V springs are often manufactured using flat spiral winding techniques. This design not only provides a high unit load but also allows for a considerable range of deformation, enabling efficient sealing within limited spaces.
These springs can be formed through molding processes that ensure standardized cross-sectional shapes. This standardization helps maintain consistent performance across various applications.
In valves, cantilever V springs are utilized to seal valve stems, ensuring effective sealing performance under high pressure and dynamic motion, thus preventing media leakage.
Cantilever V springs effectively prevent liquid and gas leakage in rotary joints, ensuring the reliability and stability of these critical components.
In food and beverage machinery, cantilever V springs are employed to seal components like filling silicone, ensuring that parts in contact with food are contamination-free and meet hygiene standards.
In the oil and gas sector, cantilever V springs are used to seal high-pressure pipelines and equipment, ensuring effective sealing performance even in extreme conditions.
Cantilever V springs are crucial in chemical processing equipment, providing effective sealing against corrosive media and ensuring the safe operation of equipment.
In medical equipment, cantilever V springs are employed to seal various fluids and gases, ensuring hygiene and safety in medical applications.
Stainless steel is one of the most common materials used for cantilever V springs due to its excellent corrosion resistance and mechanical strength, making it suitable for a variety of operating environments.
Elgiloy is a high-performance alloy known for its superior corrosion resistance and elasticity, making it ideal for sealing applications in extreme environments.
Hastelloy is a nickel-based alloy renowned for its high-temperature and corrosion-resistant properties, making it suitable for sealing in high-temperature and aggressive media applications.
Inconel is another nickel-based alloy that provides high-temperature and corrosion resistance, making it suitable for sealing applications under high pressure and temperature conditions.
HYNOX is a high-performance alloy that offers excellent corrosion resistance and elasticity, making it suitable for specialized sealing applications.
Before installing cantilever V springs, it is essential to ensure that the shaft surface is dry and clean. Removing dust and impurities is critical for maintaining effective sealing.
Ensure that the sealing element is aligned with the shaft centerline to reduce eccentric wear and extend the service life of the spring.
During installation, apply pressure evenly to prevent damage to the sealing lip and ensure the integrity and sealing effectiveness of the component.
Installation tools are often required to assist in correctly placing the cantilever V springs within the sealing ring, avoiding damage during the installation process.
Cantilever V springs play a vital role in various industrial sealing applications due to their unique design and functionality. They provide consistent pre-tensioning, compensate for wear, adapt to temperature changes, enhance sealing performance, reduce starting resistance, accommodate shaft eccentricity, and improve dynamic performance. These features make cantilever V springs ideal for high-demand sealing applications, particularly where reliability and stability are paramount.
Their applications span multiple industries, from valves and rotary joints to food and beverage equipment, oil and gas, chemical processing, and medical devices. With the right material selection and proper installation, cantilever V springs can significantly enhance the performance and lifespan of sealing systems, ensuring effective operation in diverse environments.
