Cantilever U Spring Overview
Cantilever U Spring is also known as: U Spring, Cantilevered U Spring, Meander U Spring, Meander Springs.
Cantilever U Spring Seals are high-performance sealing solutions designed for applications requiring reliable and durable sealing under dynamic conditions. These seals are specifically engineered to handle extreme pressures, emperatures, and various fluid types, making them ideal for industries such as aerospace, automotive, oil & gas, and manufacturing.

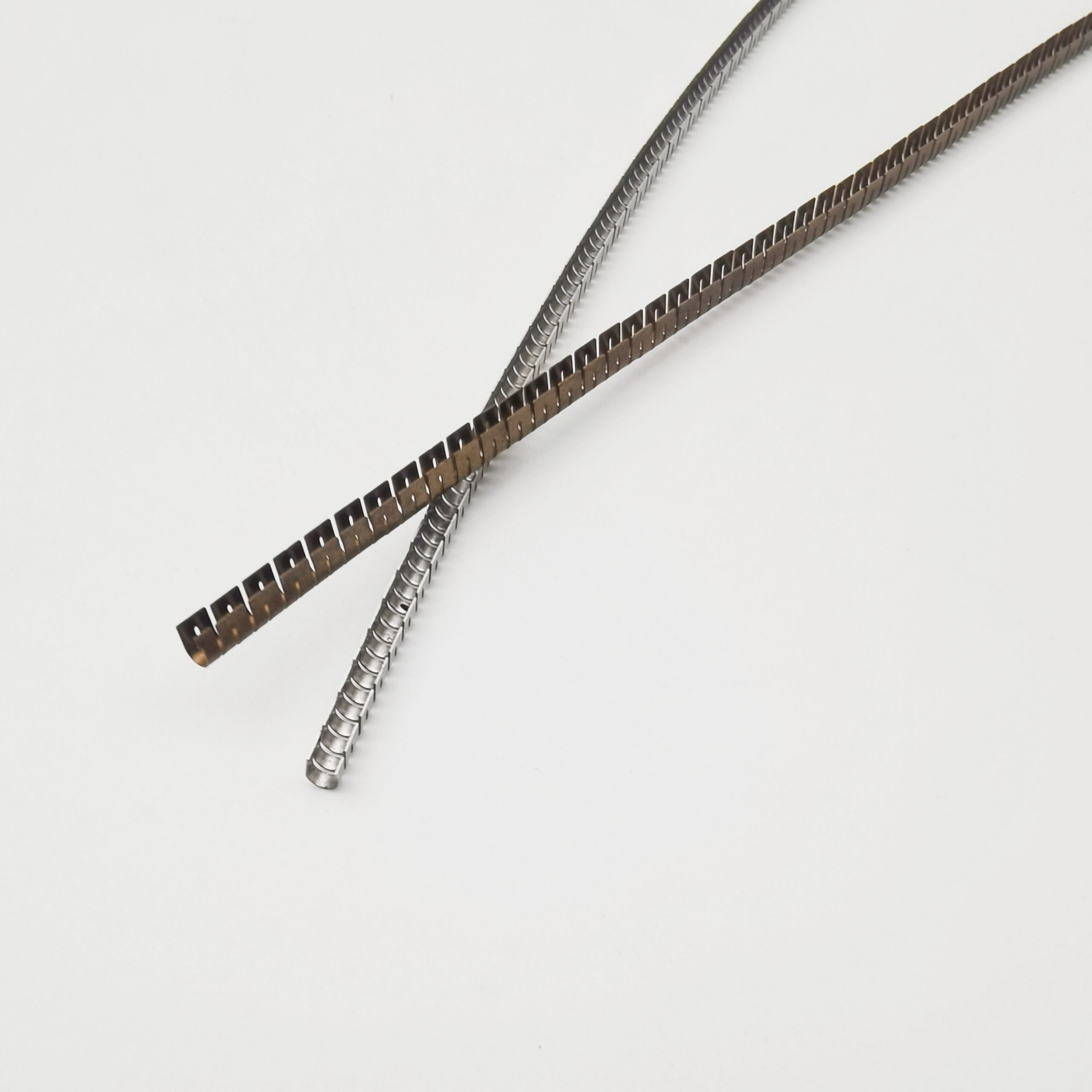

U-Spring is a cantilever beam geometry made from stainless steel or other alloys and is applied as a radial or axial compression energizer inside of U-Cup type seals. The U-Shape provides a moderate load / deflection range and is used in dynamic and static applications.
Materials available include:
Stainless Steels
Elgiloy/Phynox to AMS5833. Also available compliant to NACE MR0175.
Hastelloy (grades C22, C276, C2000)
Cantilever U Spring Dimensional Data

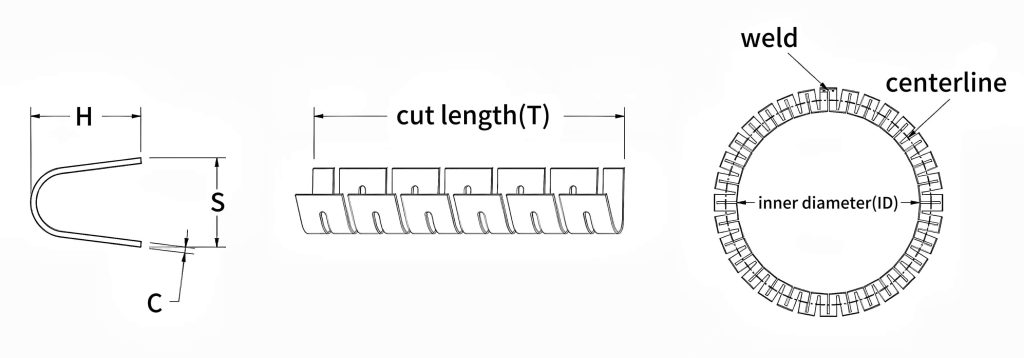

The chart below shows the standard dimensions of the Standard U Cantilever/Meander type springs. All dimensions are subject to standard manufacturing print tolerances. Those tolerances may be requested if needed. Each spring is manufactured in its own standard tool & die set. If these dimensions do not work for your situation minor variations to “L “and “K” can be made with minor adjustments to our standard tooling.
However if you are needing more aggressive changes such as width of the raw material or radius dimensions we suggest you inquire about one of our 100 or more other nonstandard cross sections of V and U springs.
If you still are not finding the geometry you like, a unique tool set is also an option.
Cantilever U Spring Dimensions
