Helical seal springs are mechanical components designed to maintain pressure and ensure a proper seal in various industrial systems. They are widely used in sealing applications where consistent force is required to maintain the position of a sealing element, such as an O-ring or gasket. The design of a helical seal spring, characterized by its spiral or helical shape, allows it to provide a constant compressive force over its entire length, ensuring a reliable seal even under variable conditions such as pressure fluctuations, temperature changes, and mechanical stress.
The role of these springs in sealing applications cannot be overstated, as they are critical to the functionality and efficiency of many systems, including pumps, compressors, valves, and other equipment that require dynamic sealing. These systems depend on helical springs to prevent fluid or gas leaks, protect machinery from contamination, and maintain system integrity.
Design and Function of Helical Seal Springs

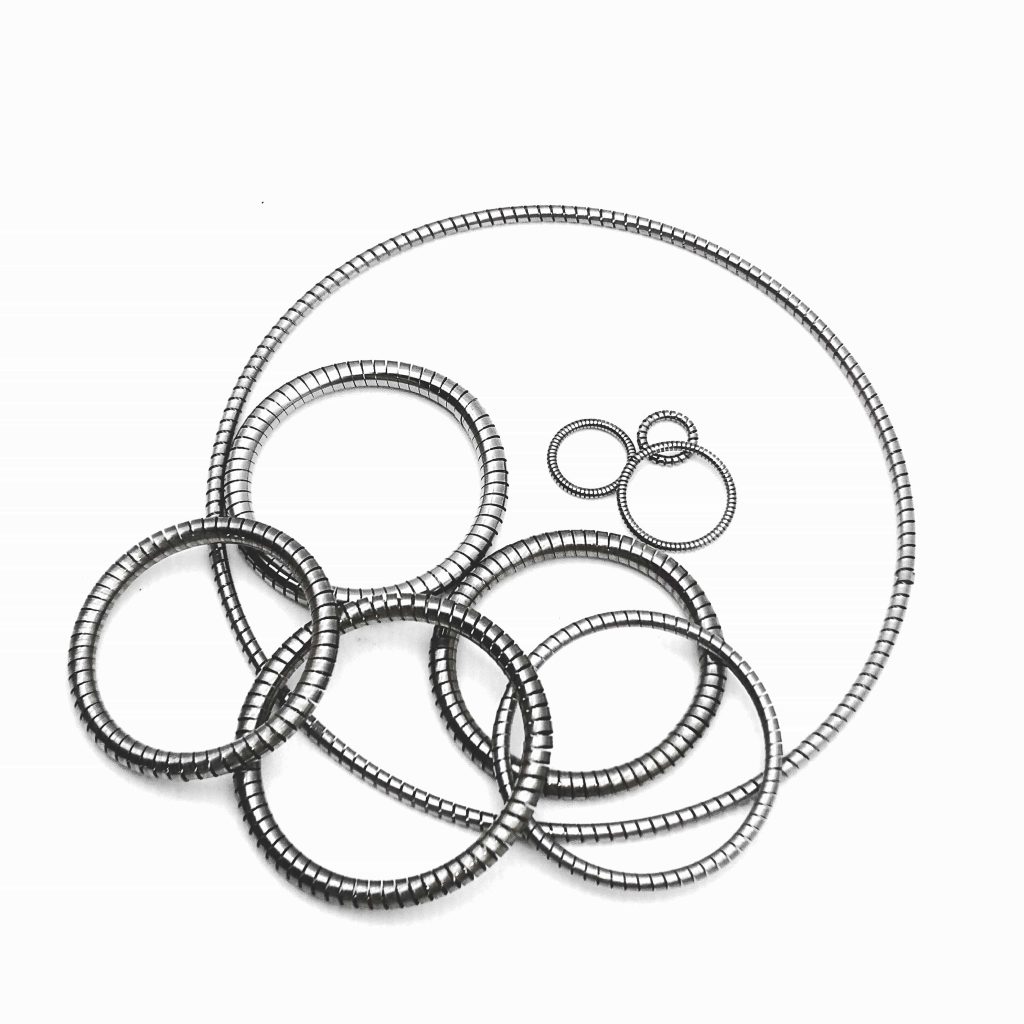

A helical seal spring typically consists of a continuous coiled wire that forms a spiral shape. This spring design allows the component to exert pressure along the circumference of a sealing element, such as an O-ring, gasket, or lip seal. By applying a constant compressive force to the seal, the helical spring prevents the sealing element from deforming, losing contact with the sealing surface, or being displaced due to external forces like pressure or temperature variations.
The helical design of the spring is key to its ability to maintain a consistent pressure distribution. Unlike simple compression springs that work in a linear manner, the helical spring distributes the load evenly over the circumference of the sealing element. This design not only provides uniform pressure but also ensures that the sealing component remains securely in place, even under demanding operational conditions.
Material Selection for Helical Seal Springs
The choice of material for helical seal springs is crucial to their performance and longevity. The material must be selected based on several factors, including environmental conditions, the type of fluid or gas being sealed, mechanical stress, temperature variations, and corrosion resistance. Some common materials used for helical seal springs include:
Stainless Steel:
Stainless steel is one of the most widely used materials for helical seal springs due to its excellent corrosion resistance, strength, and durability. Stainless steel springs are ideal for applications involving water, oils, and mild chemicals, and they can withstand high temperatures and pressures.
Types of stainless steel commonly used include 304 and 316 grades, with 316 stainless steel offering superior resistance to chloride and other corrosive substances.
Carbon Steel:
Carbon steel is another commonly used material for helical seal springs. While not as resistant to corrosion as stainless steel, it is a cost-effective option for less demanding applications where corrosion is not a significant concern.
Carbon steel springs are suitable for sealing systems in less aggressive environments and are often used in systems that don’t require frequent exposure to corrosive chemicals or extreme temperatures.
Alloy Steel:
Alloy steels are engineered materials that combine iron with other elements like nickel, chromium, or molybdenum to improve specific properties like strength, hardness, and corrosion resistance.
These steels are used in applications where additional strength or resistance to extreme conditions, such as high temperatures or exposure to aggressive chemicals, is required.
Non-Metallic Materials:
In some applications, non-metallic materials, such as polymers or composites, are used to manufacture helical seal springs. These materials offer the advantage of being lightweight, resistant to corrosion, and capable of withstanding certain types of aggressive chemicals.
Examples of non-metallic materials used in seal springs include PEEK (Polyetheretherketone), PTFE (Polytetrafluoroethylene), and other advanced thermoplastics.

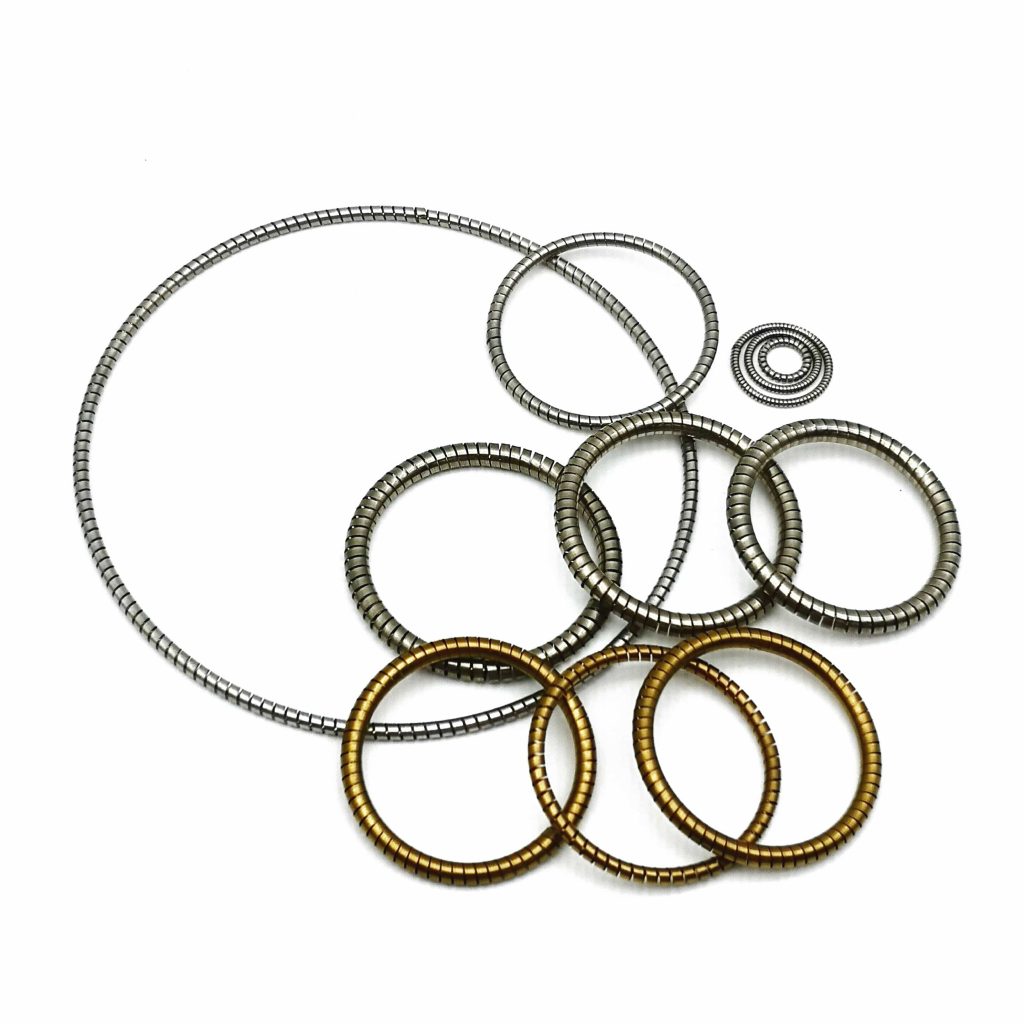

Copper Alloys:
Copper-based alloys, such as bronze or brass, are sometimes used for applications requiring higher conductivity or specific mechanical properties. These materials can be particularly effective in sealing applications within electrical or heat-exchange systems, where thermal conductivity is essential.
Choosing the Right Material
Selecting the right material for a helical seal spring depends on the specific requirements of the application. Factors to consider include:
Corrosion resistance (important in marine, chemical, or high-moisture environments),
Temperature resistance (critical for systems operating under high or fluctuating temperatures),
Mechanical properties (such as tensile strength, fatigue resistance, and hardness),
Cost-effectiveness (important in large-scale or budget-sensitive applications).
Manufacturing of Helical Seal Springs
The manufacturing process for helical seal springs typically involves the following key steps:
Material Selection: The process begins with the selection of the appropriate material based on the specific requirements of the sealing application.
Wire Preparation: The material is often supplied in the form of wire, which is then cut to the required length. The wire is usually wound into coils using specialized spring winding machines, which can form the helical shape precisely.
Spring Winding: The wire is fed into a spring-winding machine, which twists the wire around a mandrel to form the helical shape. The machine can produce a variety of spring geometries, including constant pitch, variable pitch, and tapered spring designs, depending on the required characteristics of the spring.
Heat Treatment: To increase the spring’s strength and elasticity, the wound spring may undergo heat treatment. This process involves heating the spring to a specific temperature and then cooling it rapidly to achieve the desired material properties, such as improved hardness and fatigue resistance.
Testing and Quality Control: After manufacturing, each helical seal spring is subjected to rigorous testing and inspection. This may include checking for dimensional accuracy, load-bearing capacity, fatigue resistance, and performance in simulated sealing conditions. Any deviations from the specifications are corrected before the springs are sent for final assembly.
Surface Treatment: In some cases, surface treatments such as coating, plating, or anodizing may be applied to the spring to enhance its corrosion resistance, reduce friction, or improve its durability in specific environments.
Packaging and Delivery: Once the springs pass quality control, they are packaged and delivered to the customer or assembly line, ready for use in sealing systems.
Applications of Helical Seal Springs
Helical seal springs are used in a wide range of industries where reliable sealing is crucial. Some of the most common applications include:
Automotive Industry:
In the automotive sector, helical seal springs are used in various sealing systems, such as in engines, transmission systems, and hydraulic components. They help prevent leaks in fluid and gas systems and maintain the efficiency and safety of vehicles.
Aerospace:
Aerospace systems, which require high reliability and performance under extreme conditions, often rely on helical seal springs for sealing fuel systems, hydraulic systems, and engine components.
Oil and Gas:
In the oil and gas industry, helical seal springs are used in pumps, valves, and pressure vessels to prevent leaks and ensure the integrity of systems operating under high pressure and harsh environmental conditions.
Water and Wastewater Treatment:
These springs are frequently used in water pumps, filtration systems, and valves, where they help prevent leaks and ensure that seals remain effective under fluctuating pressures and temperatures.
Chemical Processing:
In chemical plants, where the sealing of hazardous substances is essential, helical seal springs are used in pumps, mixers, and reactors to provide reliable seals that can withstand aggressive chemicals and extreme temperatures.
Industrial Equipment:
Many industrial machines, including compressors, turbines, and manufacturing equipment, use helical seal springs to ensure that seals remain intact and that the machines continue to operate efficiently without leakage.
Marine and Offshore Applications:
Due to their ability to withstand exposure to corrosive elements like saltwater, helical seal springs are commonly used in marine and offshore platforms to seal systems exposed to high-pressure water or fuel environments.
Food and Beverage Industry:
Helical seal springs are also used in the food and beverage industry, where sanitary sealing is crucial. These springs are used in equipment such as mixers, pumps, and valves to prevent contamination and ensure safe processing.
Advantages of Helical Seal Springs
The use of helical seal springs offers several key advantages:
Consistent Pressure:
The helical design ensures that the spring applies a uniform pressure around the circumference of the sealing element, preventing deformation or displacement of the seal.
Flexibility:
The spiral shape allows the spring to maintain its sealing force under varying conditions, such as pressure changes, temperature fluctuations, or mechanical stress.
Durability:
Helical seal springs, especially those made from corrosion-resistant materials, offer exceptional durability and can perform reliably over long periods without degradation.
Resistance to Fatigue:
The helical spring design is less prone to fatigue and failure compared to simpler spring designs, making it ideal for use in systems that experience frequent or cyclic loading.
Customization:
Helical seal springs can be customized in terms of material, size, pitch, and other design parameters to suit the specific requirements of a particular application.
Challenges of Helical Seal Springs
Despite their advantages, there are certain challenges associated with the use of helical seal springs:
Manufacturing Complexity:
Producing high-quality helical seal springs requires precise manufacturing techniques, which can be costly and time-consuming. Achieving the correct balance of tension, pressure, and material properties requires careful control during the production process.
Design Limitations:
While helical seal springs are versatile, there may be situations where their design is not the best fit. For example, in applications that require very high compression forces or extreme temperature resistance, alternative sealing methods might be more effective.
Corrosion in Harsh Environments:
While many helical seal springs are designed to resist corrosion, prolonged exposure to harsh chemicals or extreme environments can lead to material degradation. Choosing the right material is critical to overcoming this challenge.
Conclusion
Helical seal springs play a vital role in many industrial systems, ensuring that seals maintain their integrity and perform effectively under a wide range of conditions. Their ability to apply a consistent force to sealing elements, combined with their durability and flexibility, makes them indispensable in critical applications across industries such as automotive, aerospace, chemical processing, and oil and gas. Through careful material selection, design optimization, and manufacturing processes, helical seal springs help prevent leaks, reduce maintenance costs, and extend the lifespan of machinery and systems.
While challenges exist, particularly in extreme environments, ongoing advancements in material science and spring technology continue to improve the performance of helical seal springs. Their versatility and reliability make them a fundamental component in achieving leak-free, efficient, and safe operation across diverse sectors.
